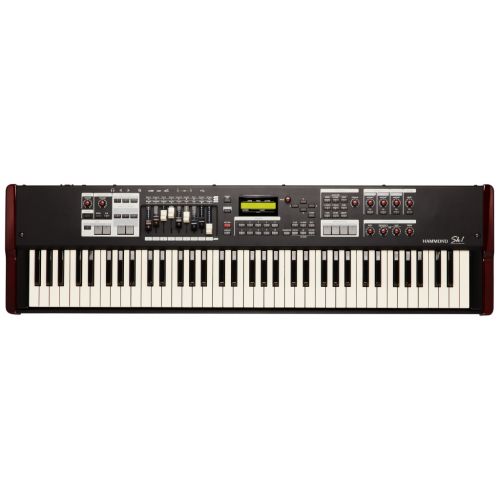

he new Hammond SK Keyboards : a splendid combination of a real Hammond and great vintage sounds...
The SK-series Stage Keyboards are the most revolutionary HAMMONDS yet, from the company that invented and perfected the Drawbar/Tonewheel concept in 1934. These ultralight instruments provide the essential keyboard sounds required to play ANY show in ANY style, including a genuine and vintage-perfect HAMMOND Organ in compact packages with all the features expected in a vintage B-3, plus our most advanced Digital Leslie yet.
In addition to the authentic HAMMOND Tonewheel voices, the SK's Extravoice Division provides Hi-Def Acoustic Grands, Electric Piano's, Harpsichord, Accordeon, Wind, Brass, Synth and Tuned Percussion voices complete the spec. You may play any of the Extravoices "solo" or add them to the Organ voices. The Organ Generator may be switched to provide authentic models of British Vx Organ, Vx Jag.Organ and Italian Farf Combo Organs, all of which can be registered in the original fashion. The fourth Organ mode calls 32 ranks of Genuine Classical ("Church") Pipe Organ voices.
Like all modern Hammonds, the SK's have deep editing capabilities, allowing voicing (volume/timbre/leakage/motor noise) for each of the 96 Digital Tonewheels, faithfully delivering any Hammond Organ's individual personality, with the ability to save these profiles for instant recall. 12 Factory Digital Tonewheel profiles ranging from "showroom clean" to "road worn" are available for instant personalization. Every Facet of the Hammond's sound like Chorus/Vibrato, Percussion, Key Click and Overdrive are widely adjustable with all settings saved with every preset.
The Pipe Organ voices are also scaling/voicing capable.
Their semi-weighted keyboards are designed to feel like a vintage B-3, yet remain comfortable for any pianist, with variable touch "depth". An expandable Voice Library is available free from the Hammond Website.
Any of the SK Series may be used as a MIDI Controller, with the ability to address 3 external zones.
An mp3/wav music-player is onboard to play backing tracks, break music, educational aids or any other tunes combined with the SK's stereo output. You may also direct connect a physical Leslie Speaker via the 8pin dedicated Leslie Jack.
Equipped with the same sound engine (VASE III) as our highly acclaimed Hammond XK-3c, the SK models feature the best Hammond has to offer; the legendary Hammond B-3 Sound, high quality Acoustic pianos, Vintage Electric pianos, Vintage strings, Pipe-organs and many other sounds and effects.
With the ability to download additional library sounds via USB the Hammond SK models offer players unique possibilities for individual setups.
2 Vase III as Digital Tone-Wheels, Transistor Organ and Pipe Organ
8 polyphony (for pedal, except Pipe Organ)
63 polyphony (maximum, on Pipe Organ)
EXTRA VOICE SECTION:
Vase III 63 polyphony (maximum)
F1 to F7 73-keys
9 Pitches, Assignable for Upper, Pedal, Lower
Manuals: 6 choices (B-Type1, B-Type2, Mellow, Vx, Farf, Pipe), Variable Key-click
Pedal: 4 choices (Normal, Muted, Synth1, Synth2), 5 choices Key-click
TOUCH RESPONSE PERCUSSION
Second Harmonic, Third Harmonic, Fast Decay, Volume Soft Display
Touch, Velocity, Decay (Fast/Slow) Level (Normal/Soft)
6 Groups (A.Piano, E.Piano, Keyboard, Wind, Other, Library)
Upgradable via Library
Allocate Upper/Lower, Solo Group
VIBRATO AND CHORUS:
Buttons: 1, 2, Chorus, Swell On, Great On
Digital, 4 programs
Controls: On, Amount
8 programs for Organ/Extra Voice Individually
Controls: On, Amount
For Organ: Bass, Mid(sweep), Treble, Tone
Advanced Digital, 2 Rotors
Buttons: Bypass, Stop, Fast
Digital, 11 programs
Control: On, Depth
Control: Bass, Mid Gain, Mid Frequency, Treble
100 User Patches, 100 Preset Patches, manual
PATCH LOAD OPTIONS:
Drawbar Registrations, Drawbar Parameters, Extra Voice, Internal Zone, External Zone, Organ Effects, EXV Effects, Reverb
Master Volume, Music Volume, Extra Voice Volume
wav (44,1KHz, 16bit Stereo), mp3 (44,1KHz, 128Kbps, Stereo)
USB Flash Drive
DISPLAY 20 Characters, 2 Lines
3 Zones, assignable to any keyboard
Line Out, L, R, Headphones
8 pin, 1 and 3 channels available
Foot Switch, Damper Pedal, Exp. Pedal, DC IN(12V)
AC Adaptor, AD-1250
Manual Bass, Split, Octave Up, Octave Down, Lower Transpose
Coupler Highest note, Split Point
SK1 – 89,4 cm (W) x 30,3 cm x 9,9 cm (H) , 7 kg
SK1-73 – 112,4 cm (W) x 30,3 cm (D) x 9,9 cm (H), 9,3 kg
SK1-88 – 131,6 cm (W) x 31,4 cm (D) x 9,9 cm (H) L, 11,6 kg
SK2 – 94,4 cm (W) x 45,4 (D) x 17,0 cm (H), 16 kg
