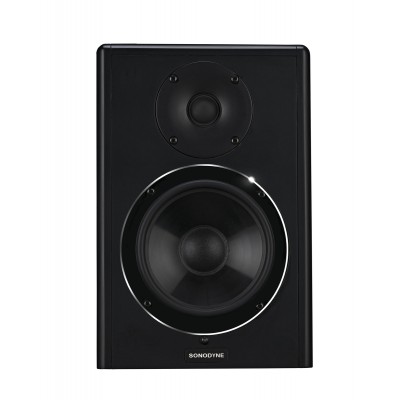

Description

This renders the cabinet rigid. To add, the integrated isolation base minimises residual vibrations.

The woofer is PP, and the tweeter is silk, both ferro fluid cooled.

The biamplifier is Sonodyne Class AB design providing 80 W + 50 W.

On board controls include HF, LF trims and bass roll-off. Gain trim control of -6 dB to +6 dB is also present. For loud and clear reproduction at an exceptional value, the PM Series is an unbeatable choice.

Highlights
- Highly braced MDF enclosure
- Class AB: Biamplifier
- 6.5 " woofer with 1" tweeter
- High, Low Shelving EQs
- High in detail and LF extension

Specifications
- Type: Biamplified Studio Monitor
- Enclosure: Heavily braced MDF, vented
- Transducer complements HF: Neodymium magnet 1" silk dome tweeter
- Transducer complements LF: 6.5" injected PP cone woofer
- Amplifier type: Class AB
- Amplifier power before clipping: LF: 80 W, HF: 50 W
- Amplifier THD at rated power: < 0.04%
- Max SPL @ 1m: 107 dB
- Frequency response: 65 Hz ~ 20 kHz (+/- 2 dB)
- Usable frequency range (-10 dB): 55 Hz ~ 22 kHz
- Crossover frequency: 2.5 kHz
- CMRR: >65 dB
- Input level for 90 dB SPL @ 1m: 0 dBU
- Controls – rear : Power, Volume, EQs
- Protection: Overcurrent, Overheat, RFI
- Indicator: Power On / Off
- Gain control range: - 70 dB to +6 dB
- High shelving EQ: -2 dB @ 15 kHz
- Low shelving EQ: -2, -4, -6 dB @ 80 Hz
- Bass roll-off: 80 Hz, 6 dB / oct
- Signal to noise ratio (at unity gain): > 90 dB (at full output)
- Input impedance: 22 kOhm
- Finish: Durable matt black paint
- Colours: Black
- Dimensions (HxWxD): 332 x 220 x 262 mm
- Power consumption: 200 VA Max
- Power requirement: Two versions: 230 V AC and 120 V AC, +/- 10%
- Weight: 10 kg
Brand reference number:PM 100
