-19%
NEW PRODUCTSave 17.80€Ref.: 301783

Description

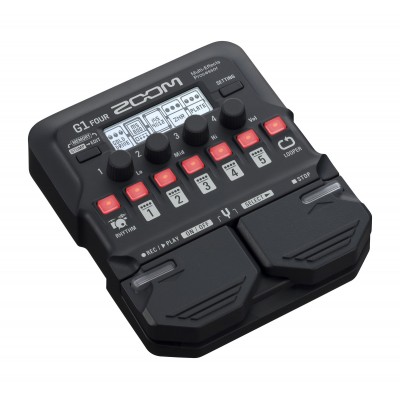

The G1 FOUR offers 60+ built-in effects
13 amp models for the simulation of classical configurations
5 effects can be used simultaneously and chained in any order
Looper function for audio recording of up to 30 seconds / 64 beats in CD quality with transparent start and end of loop
ZOOM Guitar Lab software for creating, editing and managing effects and sounds
68 built-in rhythmic patterns that can be used in conjunction with the looper
50 memories for the conservation of sounds created by the user
The exchange function makes the sound organization a breeze
Auto save function for all tone parameters
The preset function allows you to choose the future sound silently while keeping the current operational
The built-in chromatic tuner supports all standard guitar tunings, including open tuning and drop tunings
The input jack accepts a standard mono guitar cable (passive and active instruments supported)
Auxiliary input jack for connecting personal music players
Output jack for connection to an amp or headphones
Backlit LCD display with contrast control for excellent readability even in dimly lit places
Light and small enough to fit in your stage bag
Easily integrated into any existing pedalboard
Works with 4 x AA batteries, alkaline batteries for 18 hours battery life
USB port for internal firmware updates, power and connection to ZOOM Guitar Lab


Maximum number of simultaneous effects: 5
Personal Sounds: 50
Sampling frequency: 44.1 kHz
A / D conversion: 24 bits, 128 times oversampling
N / A conversion: 24 bits, 128 times oversampling
Signal processing: 32 bits
Screen: Dot matrix LCD 128x32

ENTRANCE
INPUT:
Standard mono 6.35 mm jack
Nominal input level: -20 dBu
Input Impedance (line): 470 k?

IN THE :
3.5mm stereo mini plug
Nominal input level: -10 dBu
Input Impedance (line): 1 k?

EXIT
OUTPUT:
Standard 6.35mm stereo jack (combining line / headphone outputs)
Maximum output level: Line +2 dBu (10 k? or more output impedance)
Headset 17 mW + 17 mW (32 ? load)

Input S / B ratio:
120 dB

Background noise (residual noise):
-97 dBu +

Food:
AC adapter: DC 9 V, 500 mA, with negative pole in the center (Zoom AD-16)
4 AA batteries (approximately 18 hours of continuous operation with alkaline batteries, without LCD backlight)

USB:
USB MIDI, USB micro-B
Power can also be provided through the USB port.

If you use a cable designed for power only, other USB functions can not be used

External dimensions:
G1 OVEN Size: 156 mm (D) × 130 mm (L) × 42 mm (H)
Weight: 340 g (without batteries)

Note: 0 dBu = 0.775 V
Brand reference number:9550302496035
