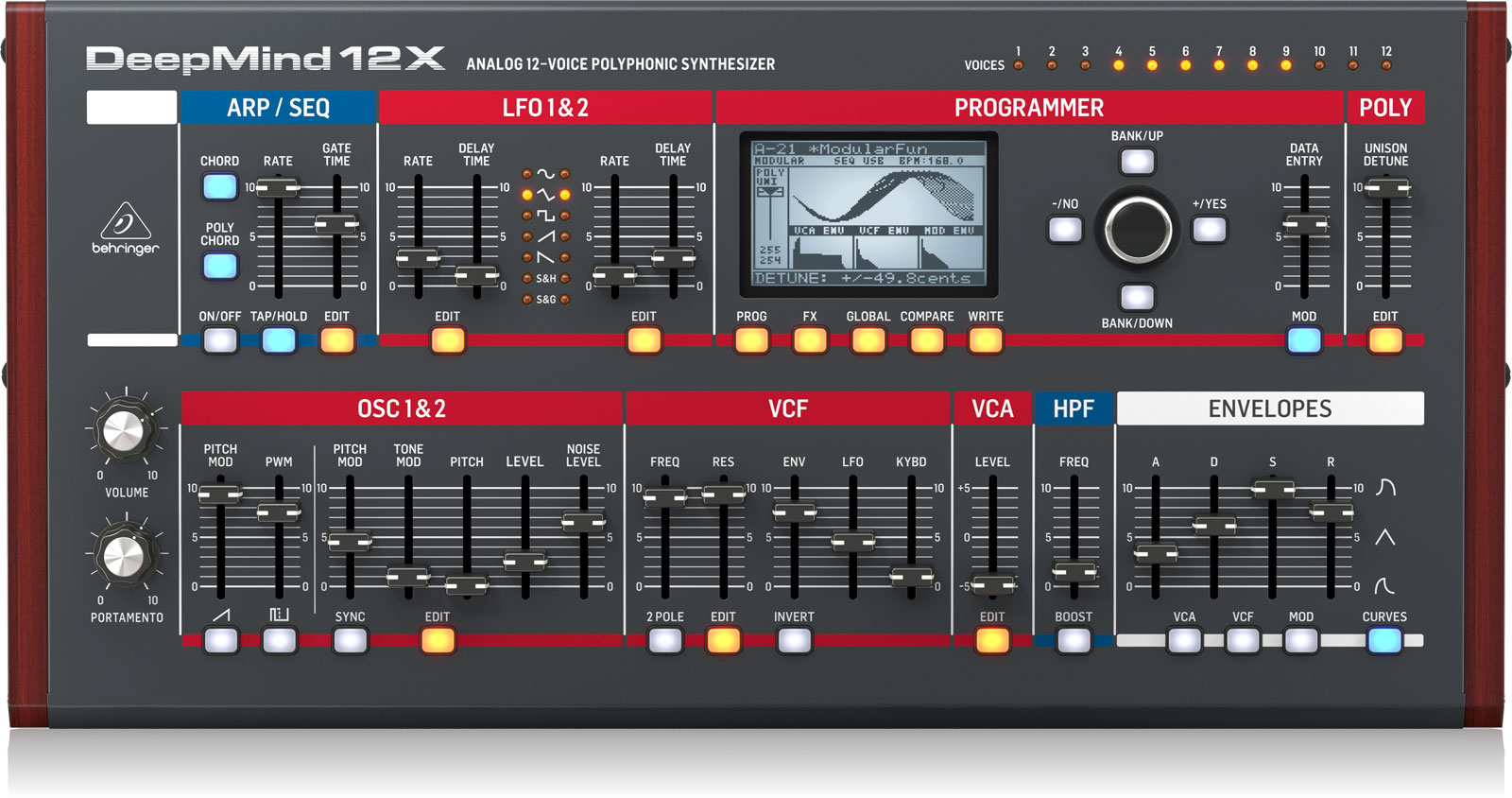

12-Voice True Analog Desktop Synthesizer with 4 FX Engines, 2 Oscillators and LFOs per Voice, 3 ADSR Generators, 8-Channel Modulation Matrix, 32-Step Control Sequencer, Tablet Remote Control and Built-In WiFi The Behringer DEEPMIND 12XD is a 12-voice analog polyphonic synthesizer designed to deliver rich, powerful, and authentic sounds. This desktop version, ideal for stage or studio use, features advanced connectivity, professional-grade effects, full remote control, and built-in WiFi for ultimate flexibility.
Classic polyphonic synthesizer: 12 true analog voices for fat and authentic sounds.
Desktop format: Designed for stage or rack use (rackmount brackets included).
Pro effects section: 4 FX engines from TC Electronic and Klark Teknik with 30+ algorithms (Reverb, Chorus, Flanger, Phaser, Delay, Multi-Band Distortion, and more).
Dual analog oscillators: 2 OSCs per voice with oscillator sync mode.
Advanced modulation: 2 LFOs per voice with 7 waveforms, key sync, MIDI sync, and envelope auto-triggering.
Precise envelope control: 3 ADSR generators per voice for VCF, VCA, and MOD.
Modulation matrix: 8 channels with 20+ sources and 130 destinations including FX parameters.
32-step sequencer: Adjustable slew rate and MIDI sync for expressive sequencing.
Full remote control: Via iPad, PC, Mac, or selected Android devices over USB, MIDI, or built-in WiFi.
Pure analog signal path: Based on legendary VCF and VCA designs.
OSC 1: Generates sawtooth and square/pulse waves with PWM.
OSC 2: Generates square/pulse waves with tone modulation.
Flexible filtering: Selectable dual slope 12/24 dB low pass filter per voice with adjustable resonance.
Dynamic envelope shaping: Seamless transitions between linear, exponential, and reverse exponential curves.
Powerful unison and poly modes: Up to 12 voices per note with detune, pan spread, and drift controls.
Global noise generator: Greatly expands waveform possibilities.
Polyphonic portamento: Flexible pitch glide with fixed rate, fixed time, and exponential modes.
Advanced arpeggiator: Tap tempo and user-configurable patterns.
Chord and PolyChord memories: Enables polyphonic play from monophonic input.
True bypass mode: For pure and uncompromised analog tone.
Global 6 dB high-pass filter: With bass boost switch.
Hands-on control: 26 sliders and one switch per function for direct real-time access.
LCD screen: With encoder, navigation buttons, and data slider for fast editing and program selection.
1024 user presets: With compare and match function for syncing controls to stored values.
Fully servo-balanced stereo outputs: For maximum signal integrity.
CV/pedal input: Compatible with modular systems.
Comprehensive MIDI: Full NRPN/CC parameter control and bulk save/load support.
Integrated configurable WiFi: Operates as client or access point for easy and secure network connection.
