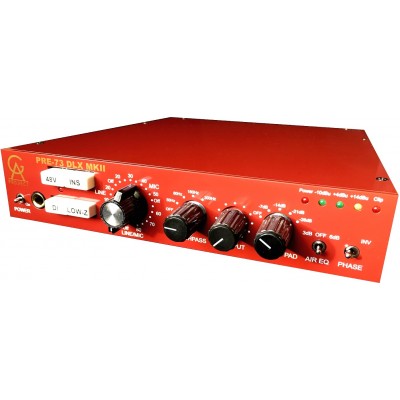

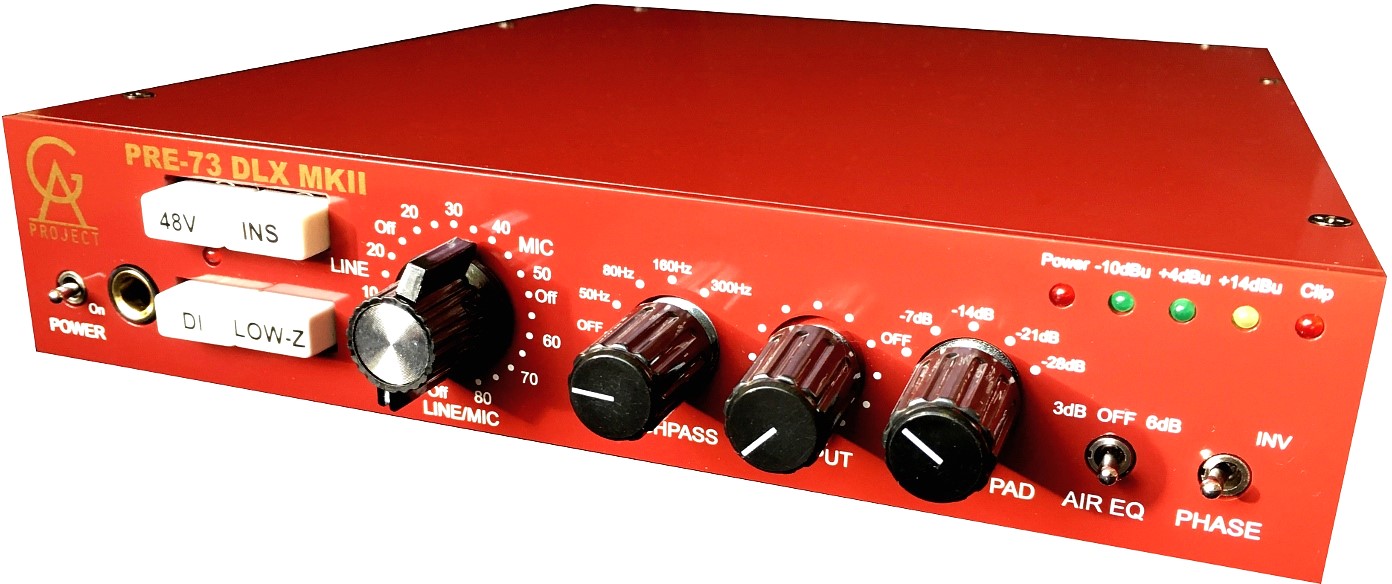

The PRE-73 DLX is a mono preamp equipped with a "discrete" class A analog circuit with 3 transformers for the microphone input, the line input and the output. Inherited from the topology of the classic Neve 1073 module, it combines warm sound, punch and musicality. The greatest artists have passed through these famous circuits and today you can continue to keep this tradition of "English-style" sound alive. The PRE-73 DLX benefits from numerous signal coloring options and as such represents the most complete preamplifier in the Pre-73 family.
Features: - 1 channel microphone preamplifier - Vintage-style electronics - No ICs in the signal path - Tantalum capacitors in the signal path - Switchable 1073 style high pass filter: 50 Hz, 80 Hz, 160 Hz and 300 Hz - Output attenuation: -7, -14, -21 and -28 dB - Max gain. 80 dB at microphone input - Line input -20 to +10 dB - Switchable impedance at the microphone input - 1200 or 300 Ohm - Switchable +48V phantom power - Hi-Z input - LED level indicator - Combined input: XLR/6.3 mm jack - Line output: XLR and 6.3 mm jack - Insert: 6.3 mm jack - Supplied with external power supply
