Definitive Audio AMP UHF

339
ou
icon-cart Adicionar
favorite_border
Internet : envio imediato
shipping icon
Entrega: gratis
warranty icon
Este artigo é garantido 3 anos
reference icon
Ref.: 405036

Descrição

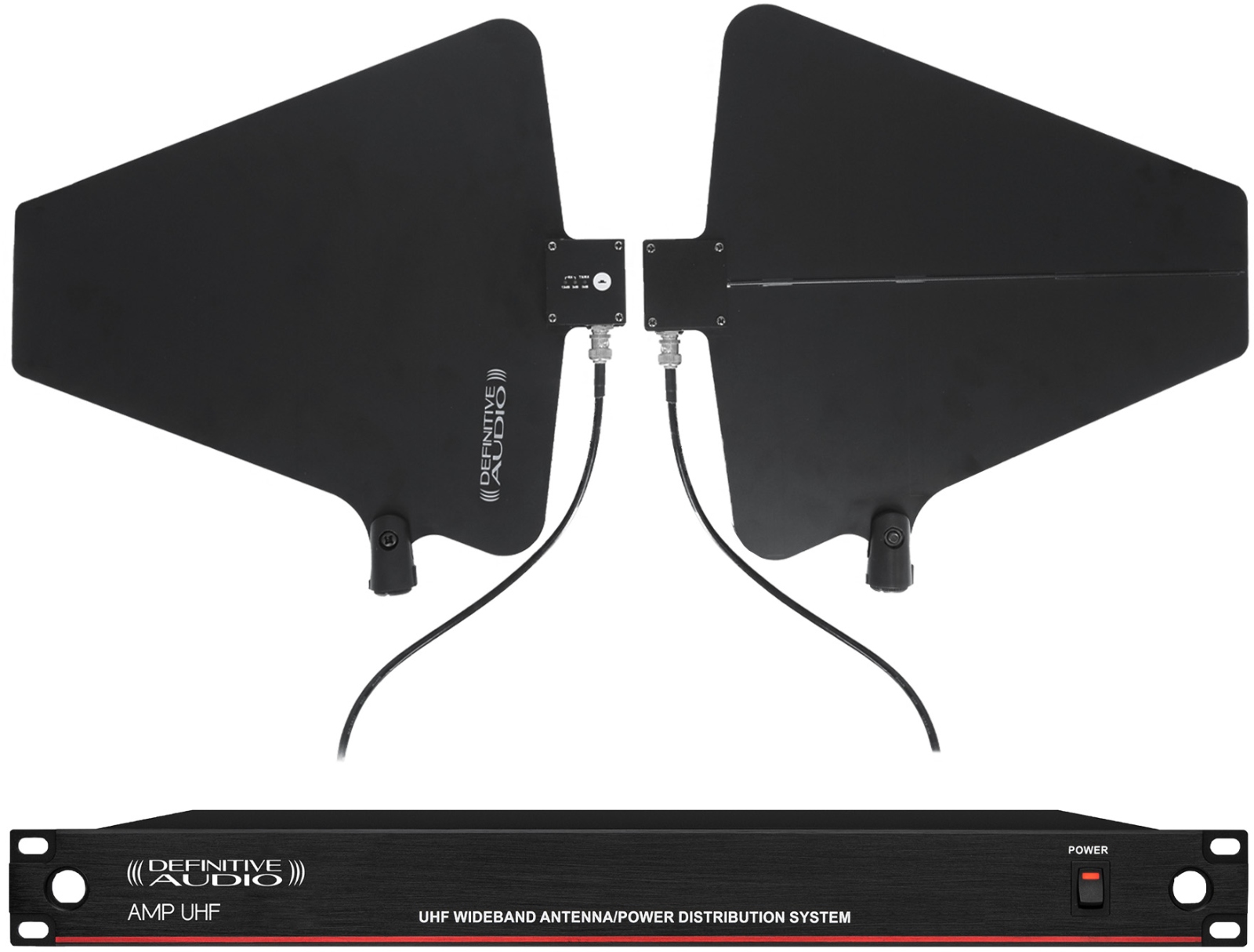

The AMP UHF is a set of UHF broadband directional antennas designed to double the range of wireless microphone systems by distributing the antenna signal to multiple receivers. It also incorporates an amplifier to compensate for the signal losses associated with splitting the signal over several outputs. A single system can support up to four wireless receivers, and multiple units can be interconnected in series, depending on the maximum number of compatible frequencies.

Features:


- Wideband UHF antenna distribution system
- 2 antennas
- Frequency range: 470 to 960Mhz
- Antenna gain selector: 0dB min/ 3dB mid/ 12dB max
- Input impedance: 50 Ohm
- Output impedance: 50 Ohm
- BNC-type antenna connectors A and B
- RF A x 4 BNC outputs
- RF B x 4 BNC outputs
- Antenna gain: 7.5 dB
- Bandwidth: 500 Mhz
- Power supply: DC 12V
- Receiver dimensions: 48 x 16.5 x 4.5 cm
- Receiver weight: 1.95 Kg
- Antenna dimensions (each): 34 x 31 x 1 cm
- Antenna weight (each): 0.35 Kg
- 8 x 0.5m BNC cables supplied
- 2 x 3m antenna connection cables supplied
- 19'' rack mounting
Referência marca: 1101_AMP_UHF
