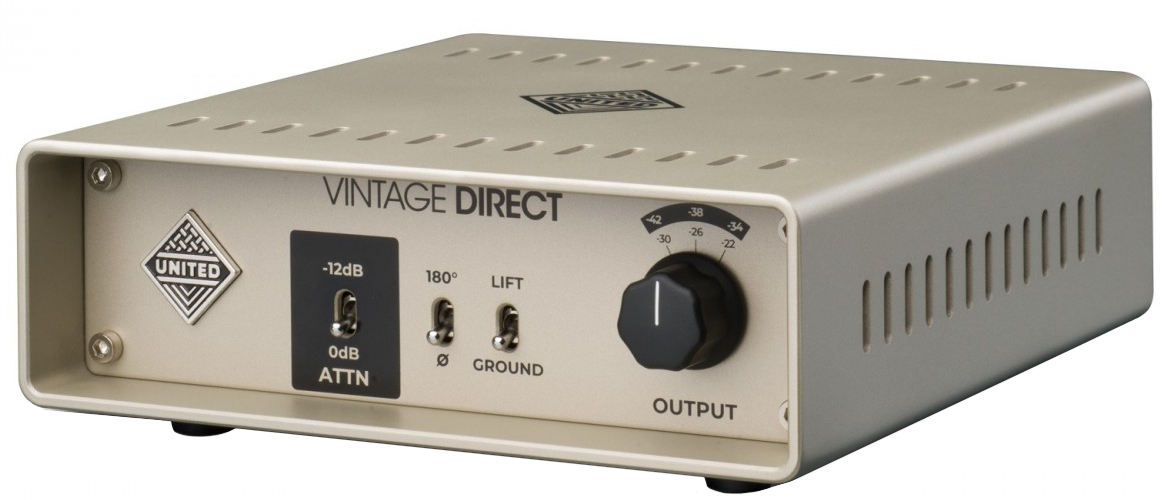

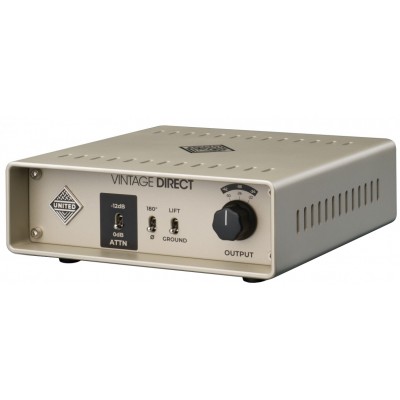

United's Vintage Direct bridges the gap between old-school tape operators and modern recorders. When the most demanding audio engineer needs the best, the Vintage Direct delivers massive sound thanks to its enormous transformer. Its circuit design is based on eliminating all potential tone loss components in the signal path that you are likely to find in a lower quality DI box.
Features:
- Passive vintage style direct box
- With generously sized transformer
- Rich sound with enough headroom
- Pure, low-noise signal with wide frequency response
- United 5078 transformer
- Attenuation switch: 0 dB, -12 dB
- Ground switch and phase reversal switch
- Output gain level: -42, -38, -34, -30, -26, -22 dB
- Max. input level: +10 dB
- Frequency response: 20 - 20000 Hz (+/-0.5 dB)
- Input impedance: 80 kOhm
- Output impedance: 50 - 250 Ohm (depending on setting)
- 1 instrument/line input on unbalanced 6.3 mm jack
- 1 passive Thru socket on 6.3 mm jack
- 1 instrument/line output on balanced 3-pin XLR
- Stage-friendly aluminum housing
- Dimensions (L x H x D): 149 x 52 x 155 mm
- Weight: 950g
