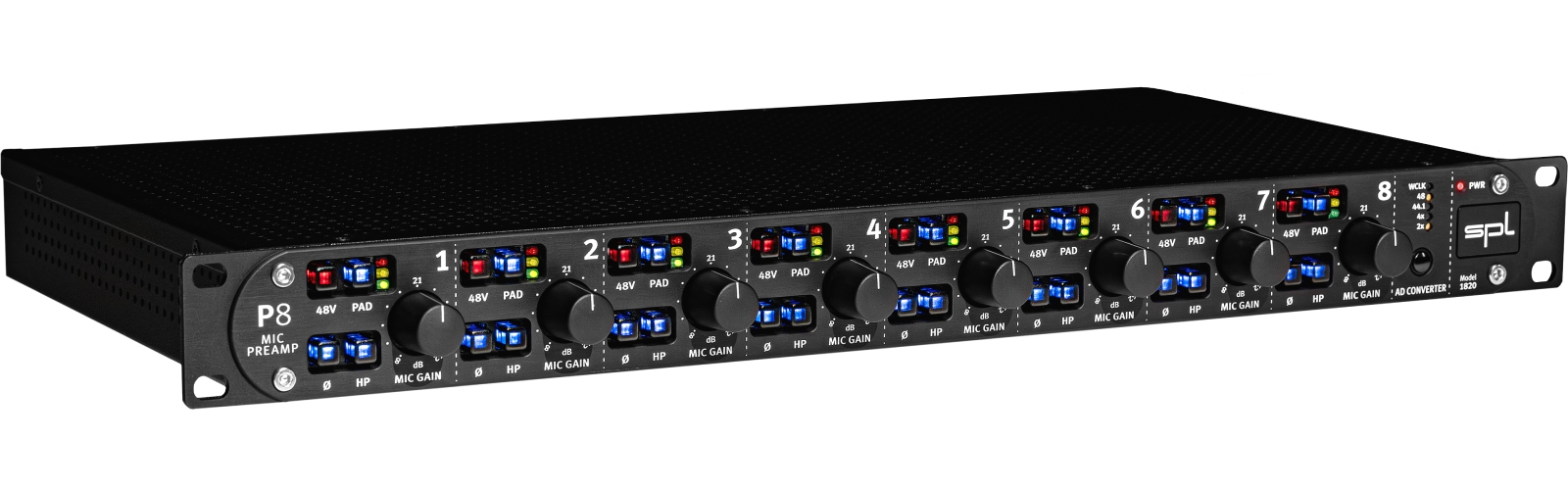

The P8 is equipped with eight identically designed microphone preamplifiers. All eight preamps are discrete, without integrated circuits, consisting of individual transistors. This principle, typical of high-end preamplifiers, largely explains the amp's exceptional sound quality. In addition to an analog gain control for adjusting the preamp, each of the eight preamps features individually switchable phantom power (48 V), a PAD switch, a phase reverse function, and a switchable analog high-pass filter. Thanks to the optional eight-channel ADAT converter, the purely analog P8 can be digitally connected to an audio interface. The P8 paves the way for high-quality multi-channel recordings.
Features: - 8-channel microphone preamplifier - Discrete preamplifier - Switchable 48V phantom power per channel - Pad attenuator: -20 dB - Phase inversion function and switchable analog high-pass filter (6 dB/Oct at 80 Hz) - Frequency response: 15 Hz – 200 kHz - Equivalent input noise: -124 dB - Noise (A-weighted, microphone preamplifier, 150 Ohms, 30 dB gain): -94 dB - 8 XLR microphone inputs - 2 Sub-D25 line outputs - both carry the analog line-level output signal from microphone preamplifiers 1 to 8 - Dimensions: 482 x 44 x 237 mm - Weight: 4.15 kg
