Zoom B6 MULTIEFFECT BASS

Description

30 YEARS OF ENGINEERING KNOW-HOW IN ONE PEDALBOARD

The future of effects pedals

With stunning effects combined with remarkable amp modeling, the B6 gives you more sonic possibilities than ever before.

RESERVED FOR BASSISTS

Everything about the Zoom B6 is designed specifically for you. With four DI models and state-of-the-art multi-effects, the B6 gives you the freedom to explore a whole world of sounds.

Introduction

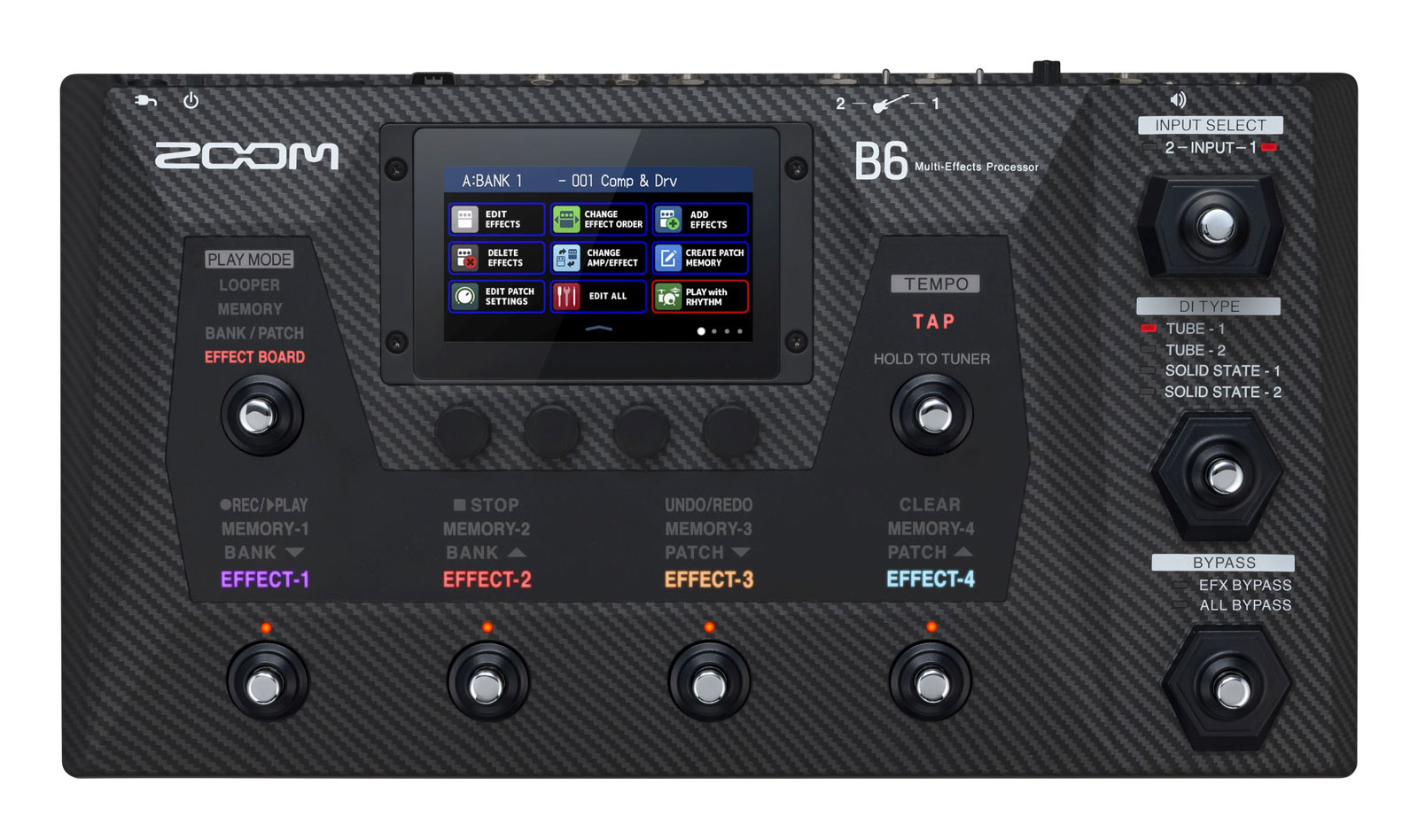

The new ZOOM B6 is specifically designed for bass players! It features an XLR output, a must-have on stage, with four character types emulating classic tube or transistor DIs. Combined with the new analog circuitry and 88.2 kHz sampling rate, the B6 takes care of the sound of your instrument. It also features two inputs with selectable impedance from 1M to 10Mohms to suit any instrument (including double basses with piezo pickups) and offers a footswitch to switch between the two inputs.
Under the hood, the B6 features 11 legendary amp models (plus a few new ones) and offers IR (impulse response) from 12 speakers, each with three mic positions.

It includes the largest collection of legendary effects ever offered by ZOOM as well as a dozen new ones. The B6 features a looper that records up to two hours to SD/SDXC card and 68 rhythmic patterns for practice. Thanks to micro-usb connectivity, you can record directly to your DAW. The B6's presets can be edited via its 4.3-inch color touchscreen, but also by using Guitar Lab on your computer or via Bluetooth with the Handy Guitar Lab app (with the BTA-1 adapter not included) on your iPhone or iPad. Finally, it is the first multi-effects processor accessible for the visually impaired thanks to the Handy Guitar LLab app featuring VoiceOver and VoiceOver Gestures.

TECHNICAL SPECIFICATIONS


- Number of simultaneous effects : 6
- User patches: 240
- Sampling rate: 88.2KHz
- A/D conversion: 24-bit 128x oversampling
- D/A conversion: 24-bit 128x oversampling
- Signal processing: 32 bits
- Signal characteristics: 20 Hz ～ 40 kHz +0.5 dB -0.5dB（10 kΩ load）
- Display: 4.3" TFT color LCD (480 x 272 pixels)

INPUTS

- Inputs 1/2: standard mono phone jack
- Nominal input level: -20 dBu
- Input impedance (line)：1 / 10 MΩ（Selected by switch）.
- RETURN: standard mono telephone jack
- Nominal input level: -20 dBu
- Input impedance (line): 1 MΩ
- AUX IN: Stereo mini jack
- Nominal input level: -10 dBu
- Input impedance (line): 10 kΩ

OUTPUTS

- AMP OUT/PHONES : Standard mono phone jack
- Maximum output level (line): +11.4 dBu (when output impedance is 10 kΩ or higher).
- Headphones 24 mW + 24 mW (at 32 Ω load)
- XLR OUTPUT jack
- Impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD)
- GND LIFT (switch selectable)
- SEND Standard stereo phone jack
- Maximum output level (line): +11.4 dBu (when output impedance is 10 kΩ or more).
- AMP OUT/PHONES -96.0 dBu
- OUT -100.0 dBu
- SEND -99.0 dBu

- Power supply: AC adapter ( 9v DC 500mA, negative center) (Zoom AD-16)
- USB port : USB 2.0 Micro-B/Supported cable type : Micro-B
- Guitar Lab : USB 1.1 Full Speed
- Audio Interface: USB 2.0 Full Speed, 44.1 kHz (32-bit)/88.2 kHz (16-bit), 2 inputs, 2 outputs
- Use a USB cable that supports data transfer. USB bus power is not supported.

- SD cards: Cards that support SD/SDXC/SDHC specifications (Class 10 or higher)
- LOOPER 44.1 kHz/ 16 bit stereo WAV
- IR 44.1 - 192 kHz, 16/24/32 bit WAV
- REMOTE ZOOM BTA-1 or other dedicated wireless adapter (Not included)
- EXTERNAL DIMENSIONS 228 mm (D) x 418 mm (W) x 65 mm (H)
- WEIGHT 1.89 kg
Brand reference number: 9550302499017
