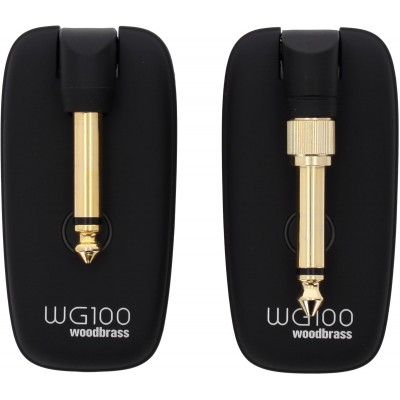

Woodbrass WG100

Description

Essential Information About the UHF Plug-in Wireless System for Guitar

  • Plug-and-play connection: transmitter on the guitar, receiver on the amp, no cable needed.
  • UHF 863.1–864.9 MHz with 7 color-coded channels for interference-free performance.
  • Supports up to 7 systems simultaneously with a stable range of up to 30 m.
  • Battery life up to 6 hours, 2-hour recharge, 3-level indicator, and auto standby.

Context and Positioning

Designed to replace the instrument cable in stage and rehearsal settings, this UHF "plug-in" system combines compactness and reliability. It belongs to the family of wireless solutions for guitar.

Who This Wireless System Is For

Ideal for guitarists and bassists seeking freedom of movement on stage, during rehearsals, or in the studio. Also perfect for teachers and mobile artists who want a quick, clean, and stable setup without sacrificing audio quality.

Installation

The transmitter plugs directly into the instrument’s jack output, and the receiver connects to the amplifier. The 7 color-coded UHF channels simplify pairing and allow up to 7 systems to operate in parallel.
The frequency response of 20 Hz–20 kHz and a dynamic range greater than 106 dB ensure faithful reproduction without interference or distortion. The built-in lithium battery offers up to 6 hours of autonomy with a 2-hour recharge time, a 3-level indicator, and automatic shutdown after 30 minutes of inactivity.

Technical Specifications

System and Transmission

  • Wireless system for dynamic microphones
  • UHF band: 863.1 to 864.9 MHz
  • 7 selectable channels, color-coded by channel
  • High-quality audio link without interference or distortion
  • Range: up to 30 m
  • Simultaneous systems supported: 7

Audio

  • Frequency response: 20 Hz – 20 kHz
  • Dynamic range: >106 dB

Power Supply and Battery Life

  • Built-in 3.7 V 800 mAh lithium batteries
  • Battery life: 5 h 30 min
  • Charging time: 2 h
  • 3-level charge indicator: >30%, <30%, <5%
  • Automatic shutdown after 30 minutes of no use

Connectivity and Integration

  • Transmitter plugs into the guitar’s jack output
  • Receiver plugs into the amplifier

Dimensions and Weight

  • Dimensions (transmitter and receiver): 30 x 27.6 x 88.5 mm
  • Total weight: 120 g (transmitter 60 g, receiver 60 g)

Box Contents

  • Manual
  • Dual USB-C / USB-A charging cable (charging cable included)
Brand reference number: SWB WG100
