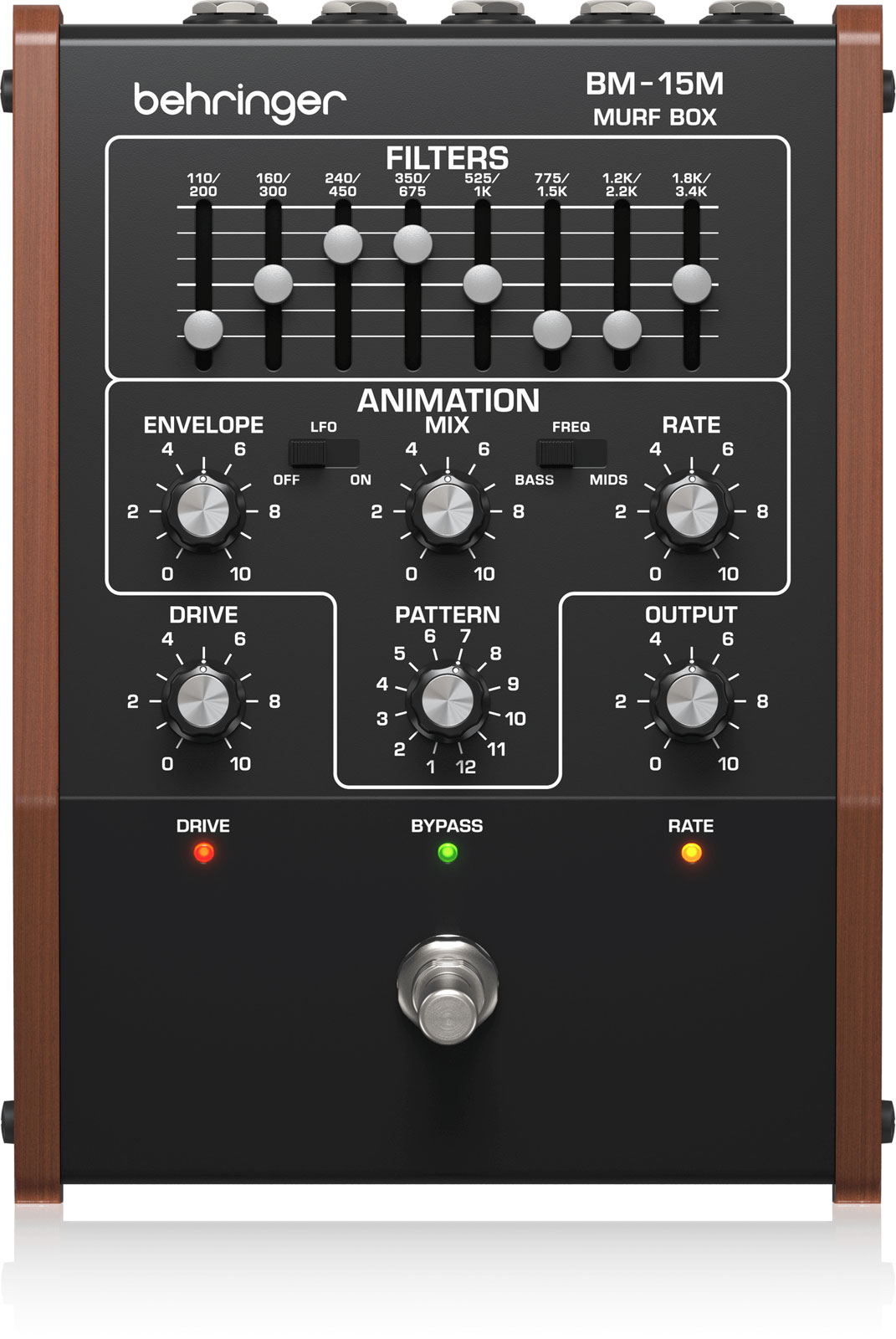

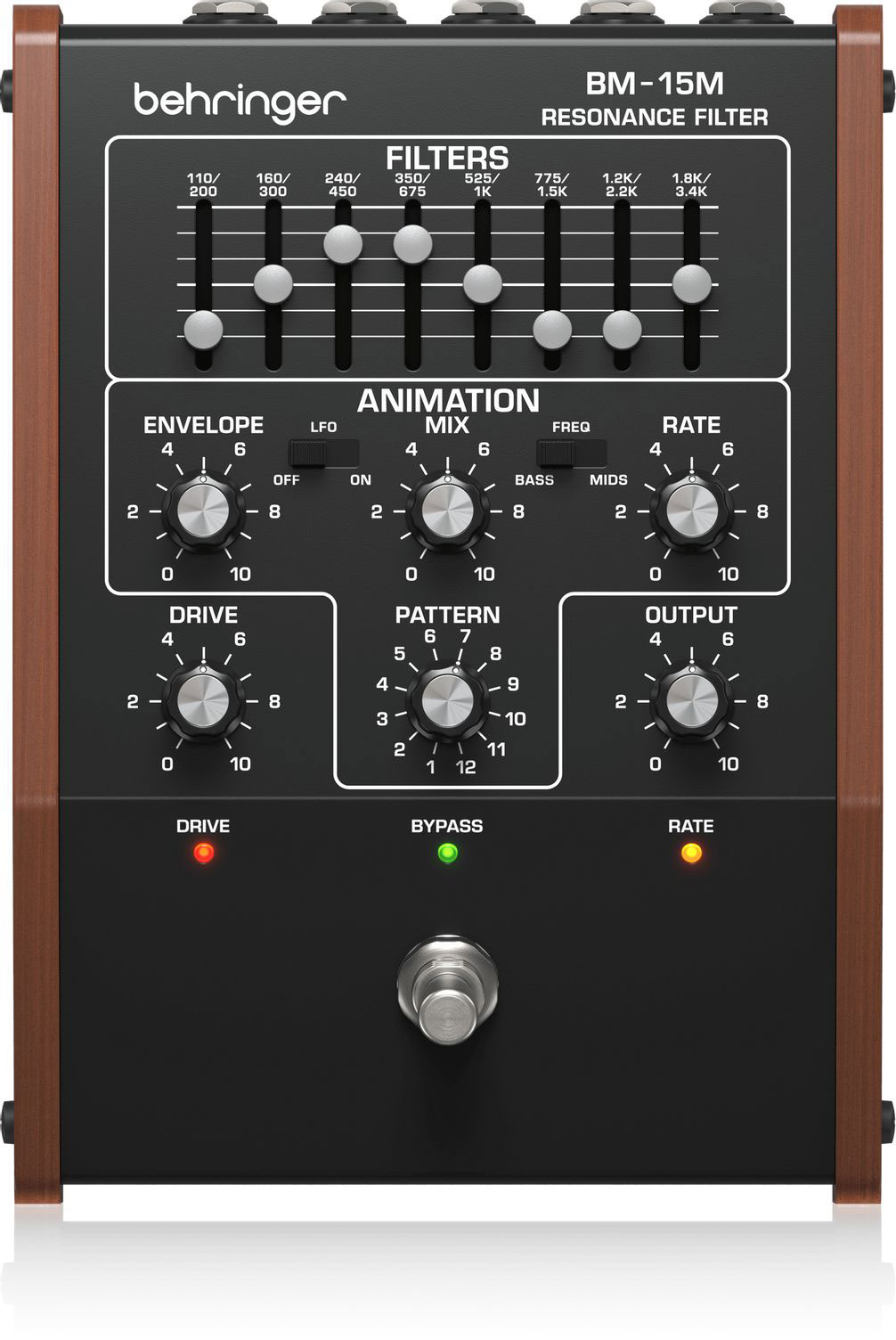

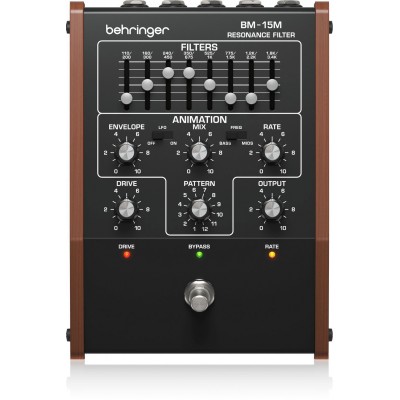

BM15M Resonance Filter
Vintage analog MIDI pedal Resonance Filter with complex filters, envelope control, and USB/MIDI control Features
- 8 filters with selectable patterns for complex and evolving effects
- Authentic recreation of the Moog MF-105 from the 1990s
- Envelope control for dynamic and expressive modulation for ultimate control and flexibility
- Modulation speed control
- Resonance control for enhanced filter effect
- Mix control for blending input and output signals
- Expression pedal input for smooth modulation control
- USB/MIDI connectivity for ultimate control and flexibility
- Modulation speed control
- Resonance control for enhanced filter effect
- Mix control for blending input and output signals
- Expression pedal input for smooth modulation control
- USB/MIDI connectivity for ultimate control and flexibility
- Modulation speed control
- Resonance control for enhanced filter effect
- Mix control for blending input and output signals
- Expression pedal input for smooth modulation for blending input and output signals
- Expression pedal input for real-time control
- Compact, rugged design for easy transport and stage use
- Combine it with other pedals for even more creative possibilities
BM15M Resonance Filter
The Behringer BM15M Resonance Filter is the ultimate filtering machine designed to bring movement, groove, and life to your sound. With 8 filters, selectable patterns, MIDI control, and expressive modulation options, the BM-15M is a gateway to a whole new world of sound, whether you're a guitarist looking for dynamic tonal animation or a synthesizer searching for evolving textures. Unleash your creativity At the heart of the BM-15M is its powerful filter sequencer, which rhythmically animates your sound through 12 dynamic patterns. Choose between fast, percussive sequences or slow, evolving waves of movement, while adjusting the envelope shape and speed for endless tonal possibilities. With MIDI integration, you can lock these effects perfectly to the beat or, using an expression pedal, take more direct control over your ever-changing soundscape.
Perfect for guitarists and synth players
Guitarists and synth players will love the BM-15M for its ability to transform simple chord progressions and pads into groovy textures and dynamic soundscapes, full of life and energy. Synchronize the BM-15M with your DAW or drum machine, and your synth lines will suddenly match the rhythm, breathing new life into your arrangements.
Specifications
- Audio connections:
- 1 x 1/4“ TS connector, unbalanced
- Impedance 238 kΩ
- 1 x 1/4” TS connector, unbalanced TS connector, unbalanced
- Output impedance 1 kΩ
- 1 x 1/4“ TS connector, unbalanced
- Output impedance 1 kΩ
- 1 x 1/4” TRS, balanced
- Input impedance 48 kΩ
- Audio input:
- Left/mono output:
- Right output: Tap/step: Control connections: 1 x 1/4" TRS connector Impedance 22 kΩ, unbalanced CV input range 0 V to +5 V +5 V
- 1 x 1/4“ TRS connector
- Impedance 22 kΩ, unbalanced
- CV input range 0 V to +5 V
- 1 x 1/4” TRS connector
- Impedance 22 kΩ, unbalanced
- CV input range 0 V to +5 V
- LFO / sweep:
- Connector 1 x 1/4" TRS
- Impedance 22 kΩ, unbalanced
- CV input range 0 V to +5 V
- MIDI input 2 x 5-pin DIN, 16 channels
- USB 1 x USB, type C
- System:
- Frequency response 20 Hz to 20 kHz (+0 / -2 dB)
- Dynamic range > 66 dB
- Signal-to-noise ratio > 56 dB
- Overall gain +16.5 dB
- Power supply / voltage:
- Standard 9 V DC power supply, negative center, > 400 mA (power supply not included)
- Power consumption 1.8 W
- Dimensions (H x W x D) 85.9 x 147.6 x 196.9 mm
- Weight 1,108 g
