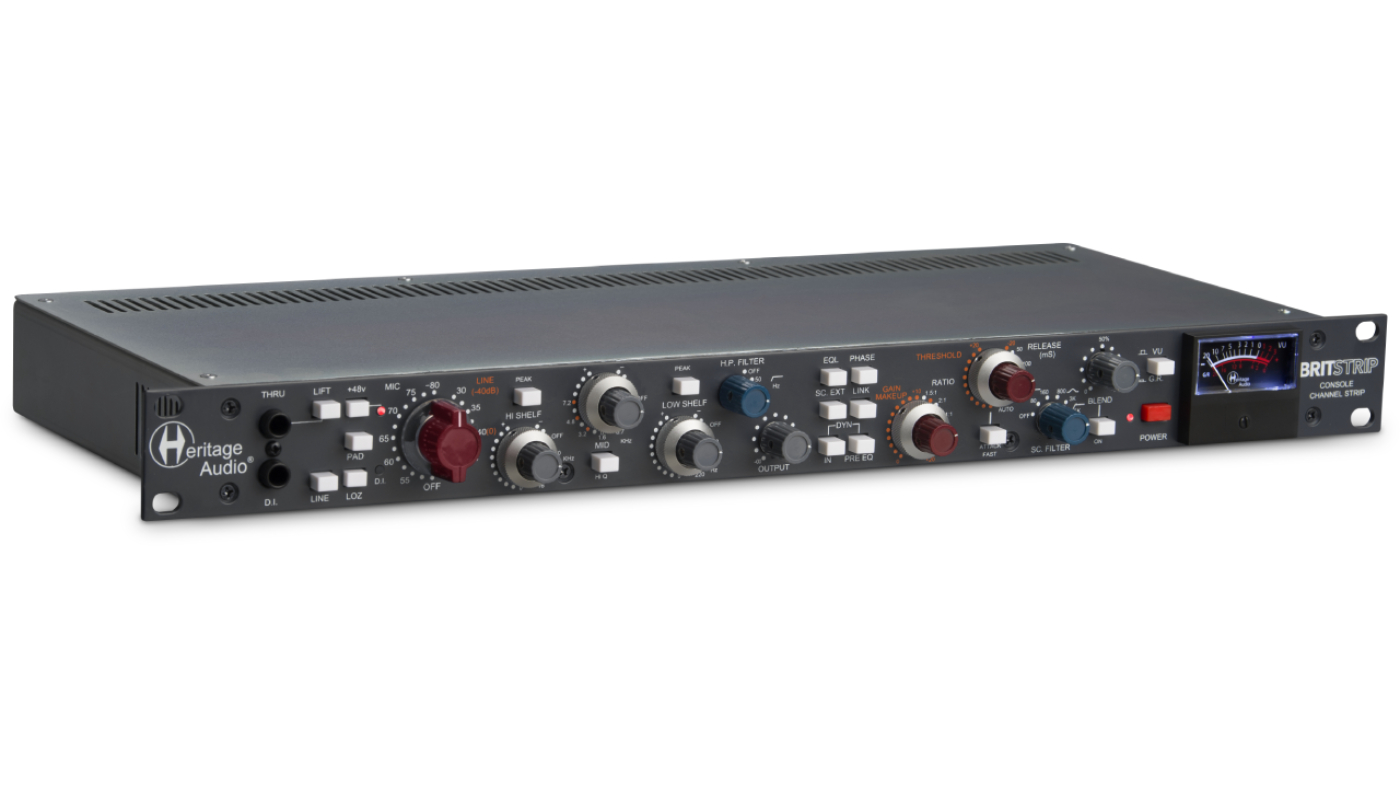

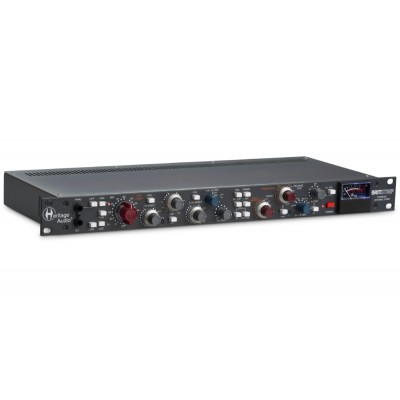

Introducing the Heritage Audio BritStrip — the culmination of 50 years of analog design in a single rack unit. Britstrip nails the sound of yesterday’s iconic recordings for today’s demanding engineers.
The BritStrip combines a real-deal 73 mic preamplifier, an expanded 73 equalizer, a discrete Class-A DI, and the infamous diode bridge compressor from the Heritage Audio Successor. The closest equivalent of the BritStrip would be chaining together a 73JR, 73EQJR and mono Successor — a $3000 value pack in itself, with added routing flexibility.
MIC AMP SECTION
- Carnhill based, transformer coupled balanced inputs and outputs for added character and vintage vibe.
- 73 style class A output stages bring the desired 73 sound to your mix or drum buses.
- Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for lo gain ribbon mics. Input is transformer balanced and floating.
- Line input impedance: 10K Ohms bridging, transformer balanced and floating.
- DI input impedance: Greater than 2 Megohms, unbalanced.
- Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 ohms (factory terminated).
- Maximum output: Greater than +26dBu into 600 ohms.
- THD: Less than 0.025% at 1 Khz, less than 0.05% at 100Hz.
- Frequency response: 20Hz ( +0.3dB ) to 20Khz (-0.2dB)
- Maximum gain: Slightly greater than 80dB
- Noise: Less than -125dBu EIN.
- 73 High and low shelving bands with additional bell-like response.
- 73 dual Vinkor inductor based mid band with extended Q functions.
- 73 inductor based low pass filter.
- Diode-bridge based compression excels in bringing 2nd order harmonic distortion characteristics and true vintage tone while eliminating nasty odd harmonic content.
- Ultra-fast attack and release time options never found in vintage designs allows for far more flexible settings, including FET like sounds and volume maximizing without transient artifacts.
- Complex sidechain filtering options work with the already common high pass filters, introducing mid band peak type filters and high-frequency compression, allowing bus correction not possible before.
- Sidechain SEND and RETURN connections allow for external sidechain signals or further external processing of the internal one.
- Blend control offers built-in parallel compression without any external equipment. Blend ON/OFF button allows for instant comparison in between WET and DRY signals.
- Stepped controls for easy recall of settings.
