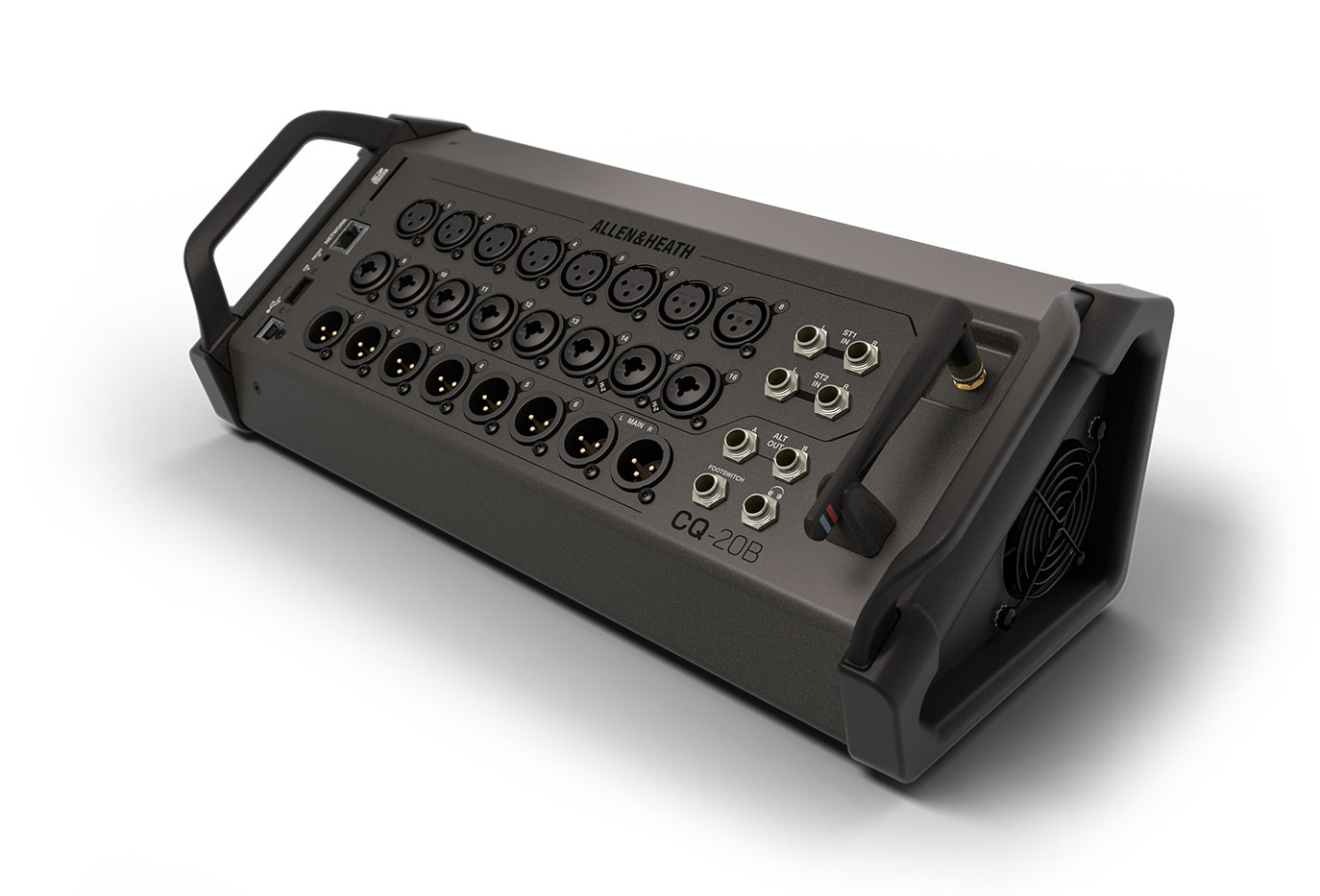

The CQ range of digital mixing desks is the most compact ever designed by Allen & Heath. Featuring a 96 kHz FPGA processing engine, it offers extensive connectivity with Bluetooth, wireless options, audio recording and playback on SD and USB. Speed and ease of use are at the heart of this range. The new Quick Channels, Gain/Feedback Assistants and Signal Conscious FX improve audio quality and provide quick, intuitive handling.
Offered in three formats - two desktop models and one stage box model. All use the same technology, applications and user interface, but with slightly different functionality. With the CQ range, Allen & Heath have created a super portable and fun to use, yet fully featured digital mixing desk, suitable for both technical and non-technical users. The CQ is designed for use wherever high-quality sound processing and summing is required, from bands to producers, AV providers and rentals, to operate as the main mixing desk of 'a small room or secondary on larger stages.
Features:
- 16x mic/line preamps, 8x XLR + 8x XLR/TRS 'Combo'
- 2x balanced stereo line inputs, 4x TRS
- Main LR main output, 2x XLR
- 6x monitor mix, 6x XLR
- Assignable stereo line output, 2x TRS
- Assignable headphone output, 6.35mm TRS
- 24x24 USB-B interface
- 24x24 SD recording/playback
- Stereo USB record/playback with dedicated input channel
- Bluetooth stereo playback with dedicated input channel
- 4 FX Assist motors
- Double Footswitch pedal
- Built-in 2.4G/5G AC dual-band Wi-Fi with automatic channel selection
- Dimensions: 372 x 153 x 133 mm
- Weight: 2.6 kg
