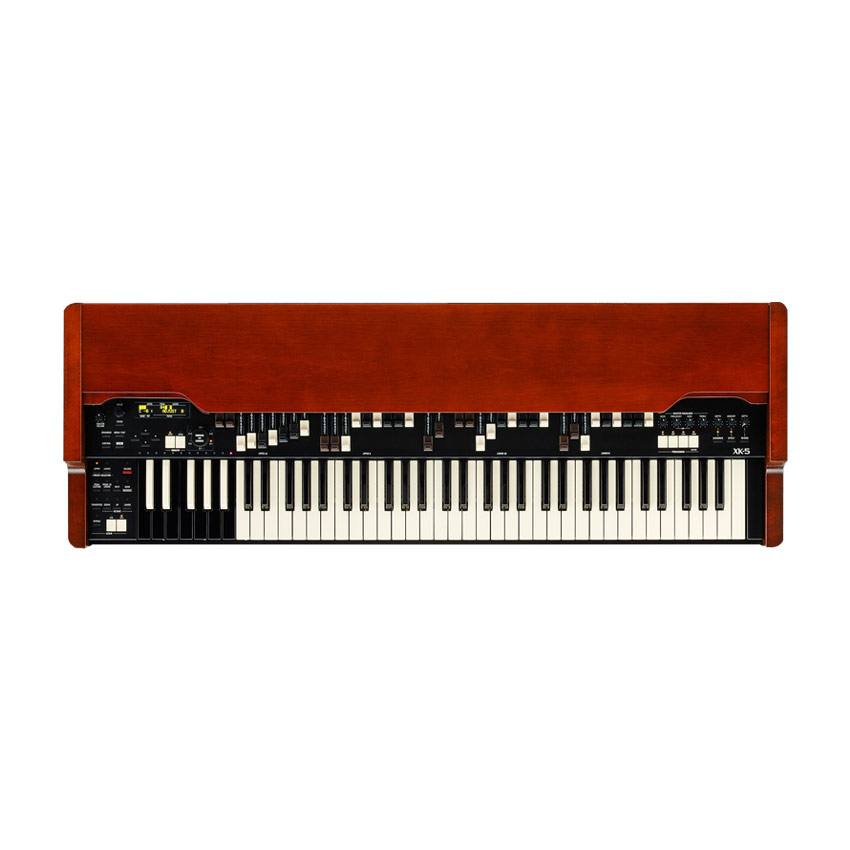

Hammond XK-5

Name: XK-5
Brand: Hammond
SKU: 230692
Price: 3699 EUR
Availability: OutOfStock
Rating: 0 (0 reviews)

Descrizione
Accessori

3699 €

favorite_border

Online : Nessun stock.
Vedi prodotti simili in stock

Consegna: gratuita

Questo articolo è garantito 3 anni

Ref.: 230692

Rivenditore autorizzato

Hammond XK-5

3699 €

Descrizione

Manuals
Upper and Lower 73 notes each
(61 playing keys plus 12 Preset Keys)
Square-front (“waterfall”-style)
New mechanical key-bed design

Pedal (optional)
13, 20-note spinet-style
25-note radiating
Adjustable Pedal Sustain
Pedal to Lower coupler
Custom Pedal Registrations (3 Factory, 3 User)

Split
SPLIT panel control
Assignable split point

Tone Generator
MTW™ (Modeled Tone Wheels)
61-note polyphony for Manuals
5-note polyphony for Pedals

Virtual Multi-Contacts™
Custom Contacts (3 Factory, 3 User)
3 Physical Contacts, 9 Assignable Virtual Contacts
Adjustable Attack, Release, Decay

Harmonic Drawbars®
5 sets (4 Manuals, 1 Pedal)
Upper 2 X 9 pitches
Lower 2 X 9 pitches
Pedal 2 pitches

Drawbar Voicing
4 choices for Manuals (A-100, B-3, C-3, Mellow)
4 choices for Pedals (Normal, Muted, Synth 1 & 2)

Custom Tone Wheel (CTW™)
3 Factory, 3 User for A-100, B-3, C-3 & Mellow Drawbar Voicings
CTW’s identified by model and serial number
Adjustable parameters for each tone wheel
12 complex tone wheels for bottom 12 pedal tones.

Touch-Response Percussion™
Percussion On, Normal/Soft Volume,
Slow/Fast Decay, 2nd & 3rd Harmonic
Adjustable Normal/Soft Volume settings,
Slow/Fast Decay rates, Velocity, Key Tracking,
1’ Drawbar Cancel ON/OFF

Vibrato & Chorus™
Virtual Scanner™ (3 settings)
Adjustable rate, Vibrato/Chorus Mix
Vibrato on Pedal ON/OFF

Overdrive
Tube/Solid State
Adjustable drive level

Preset Keys
9 Presets plus Cancel each Manual
2 Adjust Presets each Manual
9 programmable Preset Banks

Patches
100 User, 100 Factory Patches
Assignable to Preset Keys as Favorites
Assignable Patch Load: Drawbar registrations, Drawbar parameters, Internal & External Zones, Multi-Effects, Reverb.

Tube Preamp
12AU7/12AX7 Tubes
Adjustable Routing & Drive Level

MT™ Matching Transformer
Adjustable drive level, Hysteresis, upper/lower/percussion levels

Multi-Effects
Tremolo, Auto Pan, Wah-Wah, Ring Modulator, Phaser, Flanger, Chorus, Delay. Adjustable parameters for each effect.

Master Equalizer
Bass/Mid/Treble panel controls
Adjustable gain & center frequency

Programmable Equalizer
Bass, Mid, Treble
Adjustable center frequency
Hammond Preamp Tone Control

Leslie®
STOP, FAST, BYPASS panel controls.
Custom Cabinets (8 Preset, 8 User)
Adjustable Slow & Fast Speeds, Rise & Fall Times, Horn/Drum/Subwoofer Volume Balance, Microphone Settings.

Reverb
ON/OFF panel control
11 programs
Leslie On Reverb ON/OFF

MIDI
5 MIDI Templates
3 Keyboard Channels (Upper, Lower, Pedals)
6 External Zones (3 Upper, 2 Lower, 1 Pedals)
Assignable MIDI channels, key range, Program Change, Pan, Velocity Curve, Min/Max Volume
IN 1, IN 2, OUT Connections

Display
OLED, 20 character, 2 line
7 Control Buttons & VALUE Rotary Knob

USB
“A” port (“To USB Flash Drive”)
“B” port (“To Host”)

Tune/Transpose
Transpose +- 6 semitones
Fine Tune +- 10 cents
Octave Up/Down +- 2 octaves

H-BUS® Connector
To Pedals/Expression Pedal

Audio Connections
LINE OUT L/MONO / R
Headphone Jack

11-pin Leslie® Connector
-Other Connections
CONTROL 1, CONTROL 2,
8-pin DIN (EXP-100F Expression Pedal)
AC Input

Dimensions
46.8” (W) 15.8” (D) 4.7” (H)
Weight 34.6 lbs.

OPTIONAL ACCESSORIES
11-pin Leslie Cable
CU-1 Switch
EXP-50
EXP-100F
XPK-200L
XPK250W
Gig Bag
