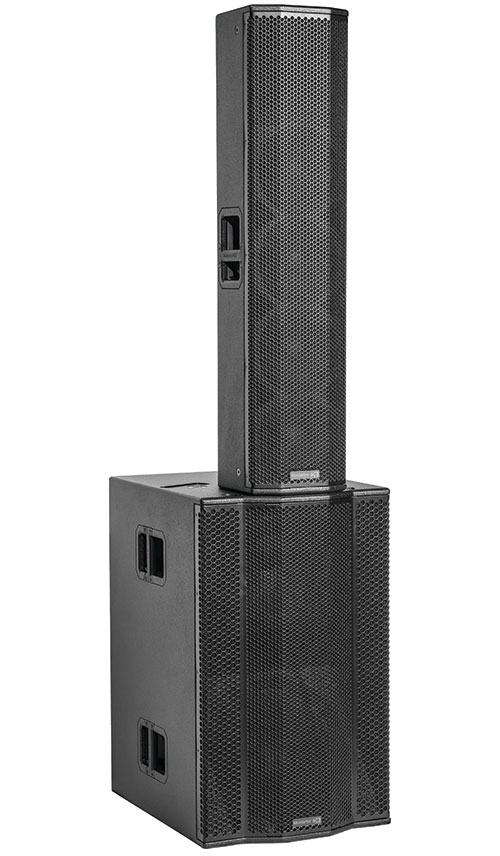

Nettuno 20 is a dual-cabinet system consisting of a passive 2-way loudspeaker and an active subwoofer. By simply connecting the two modules via a single SPEAKON cable, you get a ready-to-use system with high power and a wide frequency range (from 38 Hz to 20 kHz). The maximum sound pressure level (137 dB SPL) and available power (1600 W RMS – 3200 W peak) are extremely high, delivering uncompromising results when large areas need to be covered.
The system is equipped with two 15‘ semi-horn woofers with 3’ voice coils, four 8‘ woofers with 2’ voice coils and a compression driver with a 1.4‘ throat and a 3’ voice coil.
The 90°x40° (HxV) coverage ensures good sound distribution, and the adjustable angle of the top (up to 90°) improves horizontal coverage when two speakers are used side by side.
The Nettuno 20 delivers exceptional performance when high dynamics are required. Thanks to RD NET connectivity and Aurora NET software (MAC and PC), the system can be easily adapted to a variety of applications. If it is not possible to place the speakers on stage, the Nettuno 20 can be placed on the floor while the top can be mounted on a stand or even suspended. This system is ideal for large area sound reinforcement when suspended line array systems are not suitable due to budget or technical constraints.
Features :
- 2-way passive speaker with active bass reflex subwoofer - Frequency range (-10 dB): 74 Hz - 20 kHz (Top), 38.5 Hz - Xover (Sub) - Max SPL: 137 dB - HF: 1.4‘ compression driver with 3’ voice coil - LF Top: 4x 8‘ with 2’ voice coil - Subwoofer: 2x 15‘ with 3’ voice coil - Coverage angle: 90° H x 40° V - Crossover frequency: 1200 Hz (Top), 90/100 Hz (Sub) - Power: 1600 Watts RMS, 3200 Watts peak - Passive convection cooling - DSP: 32 bits - AD/DA converter: 24 bits, 48 kHz - Limiters: dual active peak, RMS, thermal - Controls: potentiometer, 4 system LEDs, 3 RDNet LEDs - Presets: Flat - User/Service - Connections: XLR input, XLR Link output, speakON (output to top) - RDNet: Data In / Data Out (etherCON connectors) - 12 M10 suspension points on the top - 36 mm flange under the top - Handles: 2 on the sides of the top, 4 on the sides (2 per side) of the sub - Plywood enclosure with textured black finish - Top dimensions: 26 x 115 x 36 cm - Subwoofer dimensions: 52 x 85 x 65 cm - Top weight: 28.5 kg - Subwoofer weight: 52.64 kg
