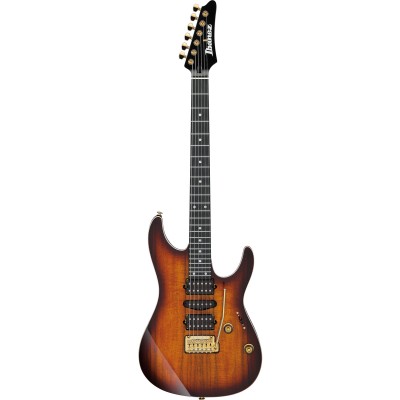

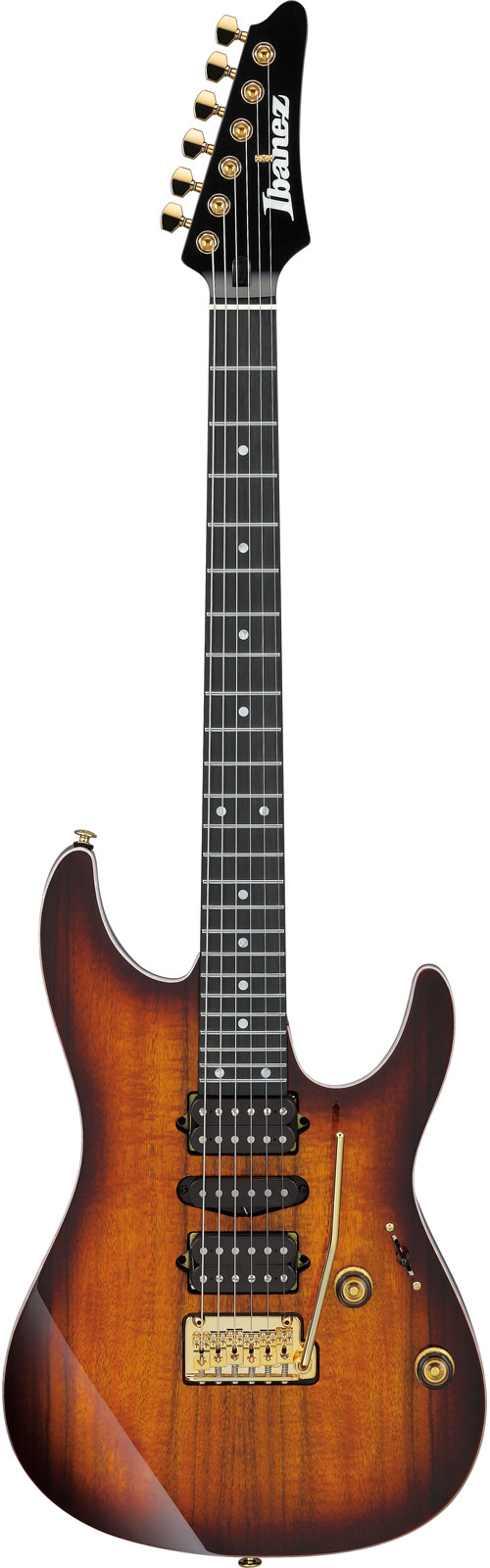

AZ47P2K
Taking adaptability to new extremes, the AZ series has established itself and carved out a place that spans everything from the warmest blues licks, to the most intense, shred-heavy metal riffs. Carrying this ethos forward, the AZ line embodies time-tested Ibanez innovation and player-focused features like a smooth, oval neck grip, a well-balanced asymmetrical body shape, and the neck heel allowing for unrivaled playability.
Premium
"Designed to Inspire", all Ibanez Premium series are manufactured with select tone woods, high-profile electronics, hardware and dedicated skills of craftsmanship and care in details for your musical journey. The richness of sound, stunning appearance and unrivalled playability of the Ibanez Premium series will open the gate of your reservoir of inspiration.
Product Features
Oval C Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
Jumbo Stainless Steel frets
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.
Hawaiian Koa top / American Basswood body
Hawaiian Koa top with a beautiful appearance provides a quick and bright attack on high end. American Basswood body delivers a natural and flat tone.
DiMarzio Air Norton / True Velvet / The Tone Zone pickups
The DiMarzio Air Norton, True Velvet and Tone Zone pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.
Gotoh MG-T locking machine heads
The Gotoh MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
Gotoh T1502 tremolo
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.
Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Gig bag included
It comes with Ibanez gig bag which is designed specifically to fit and protect this instrument.
Special Features
Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
Ergonomic rear body contour
A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.
Specifications
Body
- Body Top material (For Solid) : Hawaiian Koa
- Body Material (For Solid) : American Basswood
- Body finish : Gloss Polyurethane
Neck
- Neck Type : AZ Oval C
- Neck Joint : Bolt-on
- Neck Material : Roasted Maple
- Neck finish : Satin Polyurethane
- Neck thickness (1st fret) : 20.5 mm
- Neck thickness (12th fret) : 22.5 mm
- Scale : 648 mm / 25.5 inch
- Nut width : 42 mm / 1.65 inch
- End width : 57 mm
- Number of fret : 24
- Fretboard : Ebony
- Fretboard Radius : 305 mm / 12 inch
- Fret Type : Jumbo Stainless Steel
- Inlay : Mother of Pearl dot
- Side Dot Inlay : Luminescent side dot inlay
Hardware
- Bridge : Gotoh T1502
- String spacing : 10.5 mm
- Nut : Graph Tech
- Machine Head : Gotoh MG-T locking machine heads
- Hardware color : Gold
Electronics
- Active or Passive : Passive
- Neck Pickup : DiMarzio Air Norton (H)
- Middle Pickup : DiMarzio True Velvet (S)
- Bridge Pickup : DiMarzio The Tone Zone (H)
- Controls, Pickup selector : 1 Volume, 1 Tone, 5-way lever switch
Miscellaneous
- Number of Strings : 6
- String Gauges (from top to bottom) : .010 / .013 / .017 / .026 / .036 / .046
- Special Strings : D'Addario EXL110
- Tuning (from top to bottom) : 1E, 2B, 3G, 4D, 5A, 6E
- Included case/bag : Gig bag included
- Other item(s) included : Tremolo arm, Multi tool
