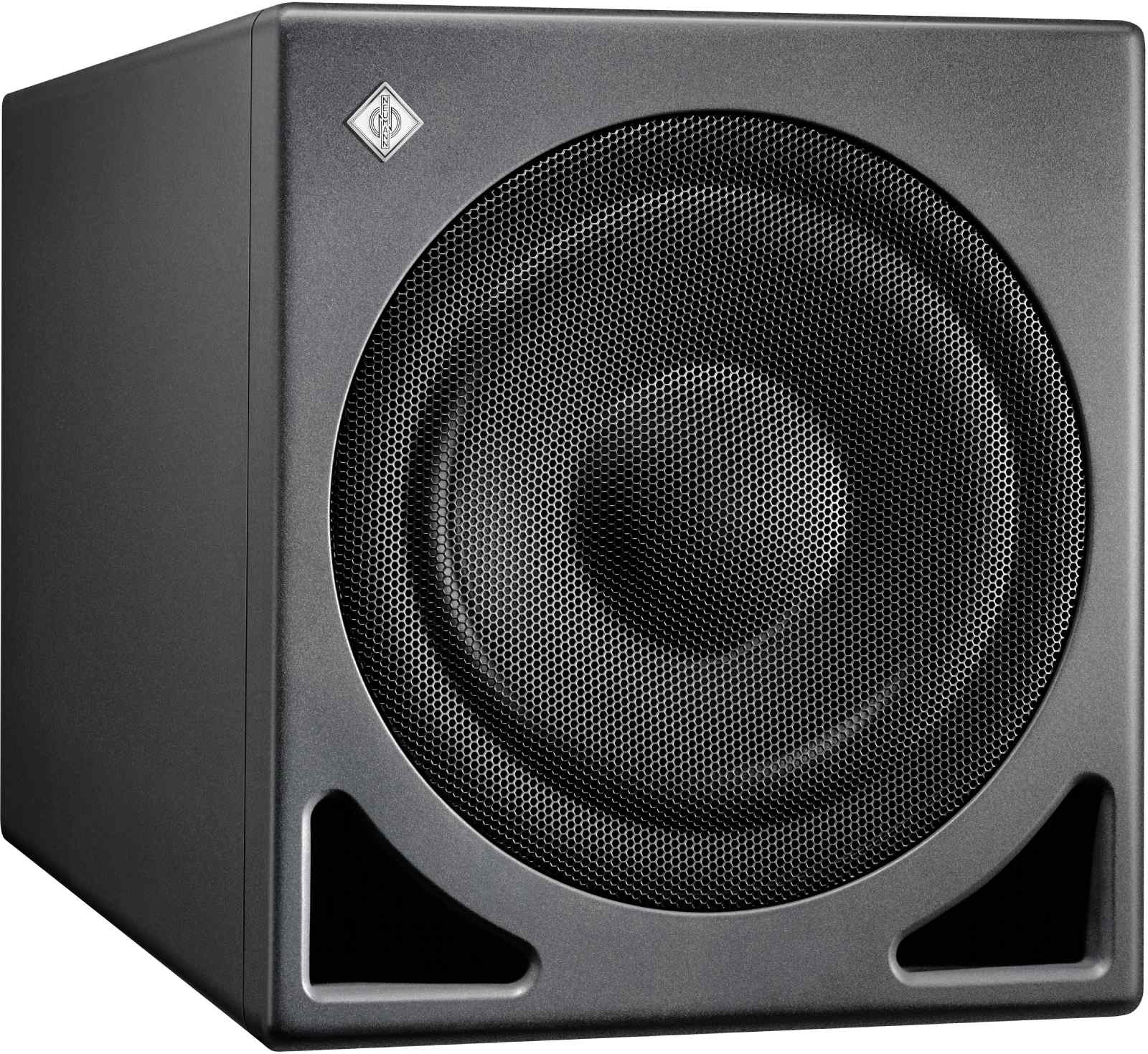

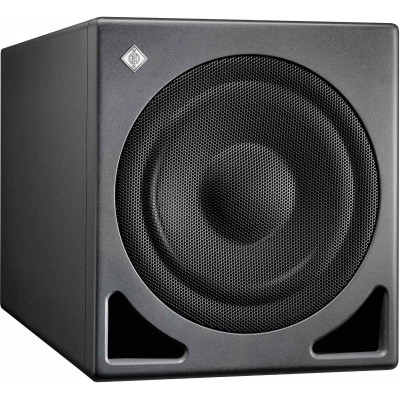

KH 805 II - Active Studio Subwoofer
KH 805 II – Big Brother of the KH 750 DSP
The KH 805 II improves its acoustic performance over its predecessor and adds new features. Thanks to a new long-throw 10" woofer featuring Extremely Linear Force Factor (ELFF™) technology and intelligent protective limiters, the KH 805 II guarantees exceptionally low distortion, even at maximum sound pressure levels.
The KH 805 II extends low-frequency reproduction down to 16 Hz and delivers approximately double the power of the KH 750 DSP. This makes the KH 805 II the ideal complement to mid-sized loudspeakers such as the KH 150 and KH 310.
The KH 805 II is DSP-controlled for superior sonic performance and seamless integration via the MA 1 automatic monitor alignment (sold separately). When paired with Neumann analog studio monitors such as the KH 120 A (discontinued), KH 310, or KH 420, it provides sufficient DSP power to align The entire stereo system is optimized using the MA 1, optimizing not only the frequency response but also the phase. The KH 805 II is therefore a significant upgrade for existing systems. Of course, the KH 805 II is also the ideal complement to Neumann DSP studio monitors.
Precision in every detail Since subwoofers are usually placed on the floor, a robust grille protects the cone from accidental damage. The rigid enclosure features a highly efficient bass reflex system, carefully designed and tuned for the most accurate bass reproduction possible, with inaudible port noise.
The two XLR analog inputs are electronically balanced, as are the two XLR analog outputs. The digital input (BNC) up to 192 kHz/24-bit supports AES3 and S/P-DIF signals. The subwoofer has an automatic standby function that can be deactivated using a switch on the rear panel.
The The KH 805 II excels in music, broadcast, and post-production studios for recording, mixing, and mastering.
Features
- Bass extension of the monitoring system down to 16 Hz - Increases the maximum SPL of the entire system - Reduces harmonic and intermodulation distortion of the loudspeakers - MA 1 ready for perfect alignment of the entire system and seamless subwoofer integration. For multi-channel configurations, we offer the MA 1 Multichannel Extension option. - MA 1 integration of analog loudspeakers from the KH series, sufficient DSP power for a complete stereo system.
Specifications
Acoustics:
- Free-field frequency response, at -3 dB: 18 Hz - 310 Hz, ± 3 dB - Free-field frequency response, with bandpass filter: 19 Hz - 310 Hz, ± 2 dB - Self-noise level, at 10 cm: < 20 dB(A) - THD < 0.5% at 1 m distance from: 45 Hz @ 95 dB SPL - Maximum SPL level for 3% THD, in a half-space: 110.7 dB SPL - Maximum sound pressure level, on pink noise, in a half-space, measured at 1 m: 112 dB SPL - Maximum averaged SPL between: 40 and 90 Hz
- Analog input/output: - Input/output channels: 7.1 / 7+Sum - Impedance (balanced floating input): XLR, 13 kΩ - Input sensitivity: -8 and +6 dBu - Maximum input level: +19 dBu (6.9 Vrms) / per channel - Rejection ratio Common Mode Reduction Ratio (CMRR): > 60 dB @ 15 kHz - Channel Separation (at 1 kHz), Level Tolerance: -95 dB, ±0.1 dB - Volume Control Range, Resolution: 118 dB, 0.25 dB - Dynamic Range, Distortion + Noise Ratio: 119 dB(A), <0.001% (-100 dB) - LFE Modes: 80+rerouting, 80, 120, wide - LFE Gain: 0 / +10 dB - Gain Control: +2 ... -12 dB
- Indicators or Supply Voltage: - Power On Indicator: "Red" LED - Limiter/Clip Indicator: "Red" "Flashing" LED - Bass Management Active Indicator: "Green" LED - Mains Voltage: 220 - 240 / 100 - 120 V AC Switchable - Power consumption (standby mode): 35 W - Power consumption (nominal power): 290 W
- Woofer: 265 mm (10") - Dimensions: 368 x 330 x 645 mm - Weight: 31.3 kg
