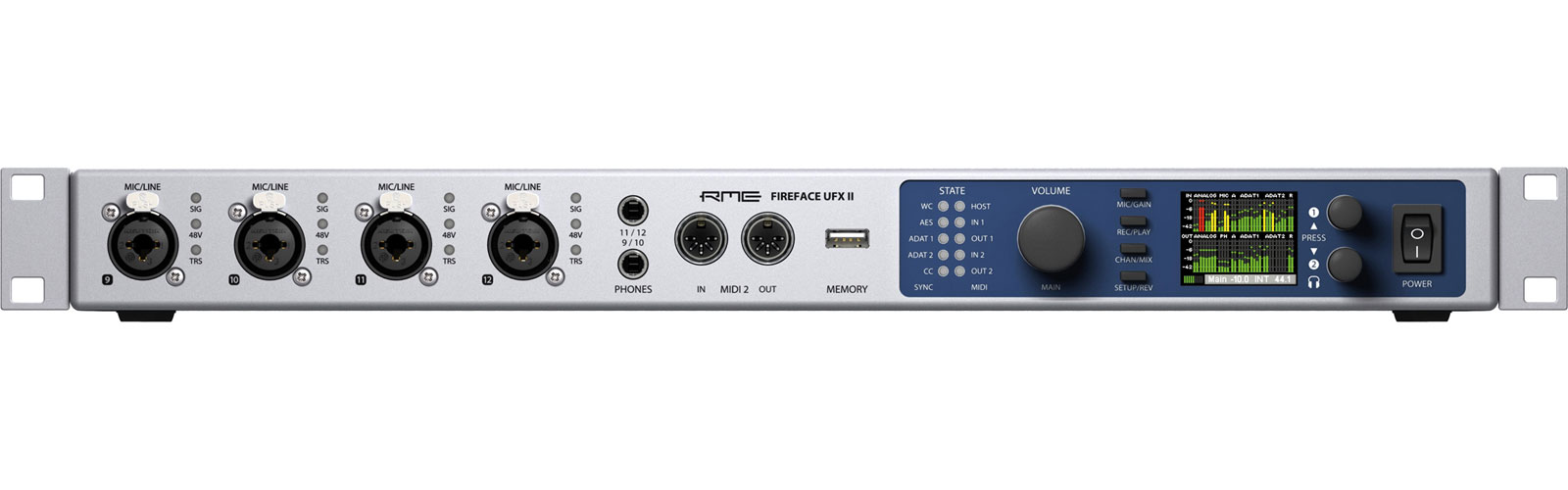

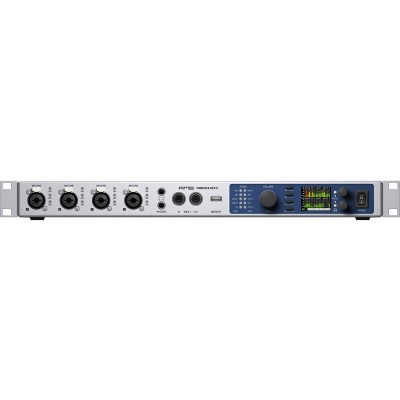

The unique Fireface UFX II is the premier solution to transfer analog and digital audio data directly to a computer from practically any source.
Numerous unique features, well thought-out configuration dialogs, an industry-leading mixing engine and monitoring solution, professional DSP effects and class-leading analog circuits with latest digital converters put the Fireface UFX II at the very top of the range of computer-based audio interfaces.
Connectivity - 30 Input / 30 Output channels - 12 x Analog I/O - 4 x Mic/Instrument Preamp, digitally controlled - 1 x AES/EBU I/O - 2 x ADAT I/O (or 1 x ADAT I/O plus 1 x SPDIF I/O optical) - 1 x Word Clock I/O - 2 x MIDI I/O - 1 x USB 2.0 - TotalMix FX - optional: Advanced Remote Control USB
General Specifications - Power supply: Internal switching PSU, 100 - 240 V AC, 36 Watts - Idle power consumption: 19 Watts - Typical power consumption: 22-25 Watts - Dimensions including rack ears (WxHxD): 483 x 44 x 210 mm (19" x 1.73" x 8.5") - Dimensions without rack ears (WxHxD): 440 x 44 x 210 mm (17.3" x 1.73" x 8.3") - Total depth: 240 mm (9.4") - Weight: 3 kg ( 6.6 lbs) - Temperature range: +5° up to +50° Celsius (41° F up to 122°F) - Relative humidity: < 75%, non condensing
