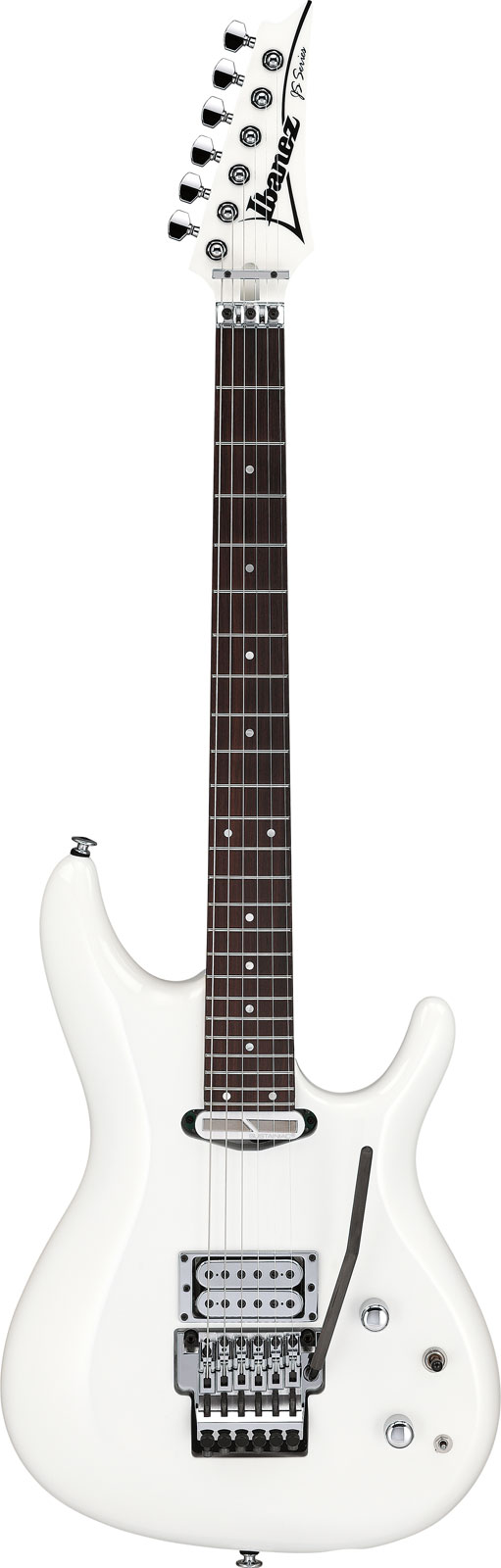

JS2480
The Ibanez Joe Satriani Signature Electric Guitar is made with typical Ibanez flair and remarkable craftsmanship. It's a fine instrument, designed to satisfy and inspire both the established performer and one waiting in the wings.
Product Features
3pc Maple/Bubinga neck
The Bubinga stripe provides stability and longer sustain.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Medium frets with Prestige fret edge treatment
Medium sized frets enhance the accuracy of your notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.
Basswood body
The Basswood body delivers a natural and flat tone.
SUSTAINIAC Driver / DiMarzio Satchur8 pickups
The SUSTAINIAC Driver in the neck position is wired to “Stealth PRO" preamp specially customized for Joe. It allows endless sustain and expands the range of expression dramatically with a 3-way Sustainiac mode selector. DiMarzio Satchur8 pickup fully supports Joe's versatile playing style and massive sound.
Gotoh machine heads
Gotoh machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
Edge tremolo
The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.
3-way mini switch for Sustainiac mode select
Normal: Sustains the fundamental tone. Mix: Sustains the fundamental and overtone. Harmonic: Sustains the overtone.
High-pass filter on volume control (push/pull)
A high pass filter on the volume pot maintains highs at low volumes.
Sustainiac switch on tone control (push/pull)
Activate the Sustainiac switch and get an endless ringing note.
Hardshell case included
Ibanez Hardshell case gives extreme protection for your beloved instrument.
Special Features
Ultralite Tremolo Arm included
The Ultralite Tremolo Arm achieved a significant reduction in weight by utilizing Carbon Graphite for the grip, resulting in less interaction with strings and more sensitive control of the tremolo arm movement.
Specifications
Body
- Body Material (For Solid): Basswood
- Body finish: Gloss Polyester
Neck
- Neck Type: JS
- Neck Joint: Bolt-on
- Neck Material: 3pc Maple/Bubinga
- Neck finish: Satin Polyurethane
- Neck thickness (1st fret, mm): 20 mm
- Neck thickness (12th fret, mm): 22,3 mm
- Scale: 648 mm / 25,5 inch
- Nut width: 42,8 mm / 1,68 inch
- End width: 56.4 mm at 21F
- Number of fret: 24
- Fretboard: Rosewood
- Fretboard Radius: 250 mm / 10 inch
- Fret Type: MediumFret edge treatment: Prestige fret edge treatment
- Inlay: Mother of Pearl dot
Hardware
- Bridge: Edge
- String spacing: 10,8 mm
- Nut: Locking
- Machine Head: Gotoh machine heads
- Hardware color: Chrome
Electronics
- Active or Passive: Active
- Neck Pickup: SUSTAINIAC Driver
- Bridge Pickup: DiMarzio Satchur8 (H)
- Controls, Pickup selector: 1 Volume (Push/Pull for Hi-Pass), 1 Tone (Push/Pull for Sustainiac On/Off), 3-way toggle switch
- Other Switches: 3-way mini switch for Sustainiac mode select, High-pass filter on volume contro (push/pull), Sustainiac switch on tone control (push/pull)
- Batteries Required: 9V x 1
Miscellaneous
- Number of Strings: 6
- String Gauges (from top to bottom): .009/.011/.016/.024/.032/.042
- Special Strings: D'Addario EXL120
- Tuning (from top to bottom): 1E,2B,3G,4D,5A,6E
- Included case/bag: Hardshell case included
- Other item(s) included: Tremolo arm, Ultralite Tremolo Arm, Multi tool, Hex wrench
