Power Studio ZS 6

179
ou
icon-cart Adicionar
favorite_border
Internet : envio imediato
shipping icon
Entrega: gratis
warranty icon
Este artigo é garantido 3 anos
reference icon
Ref.: 422342

Descrição

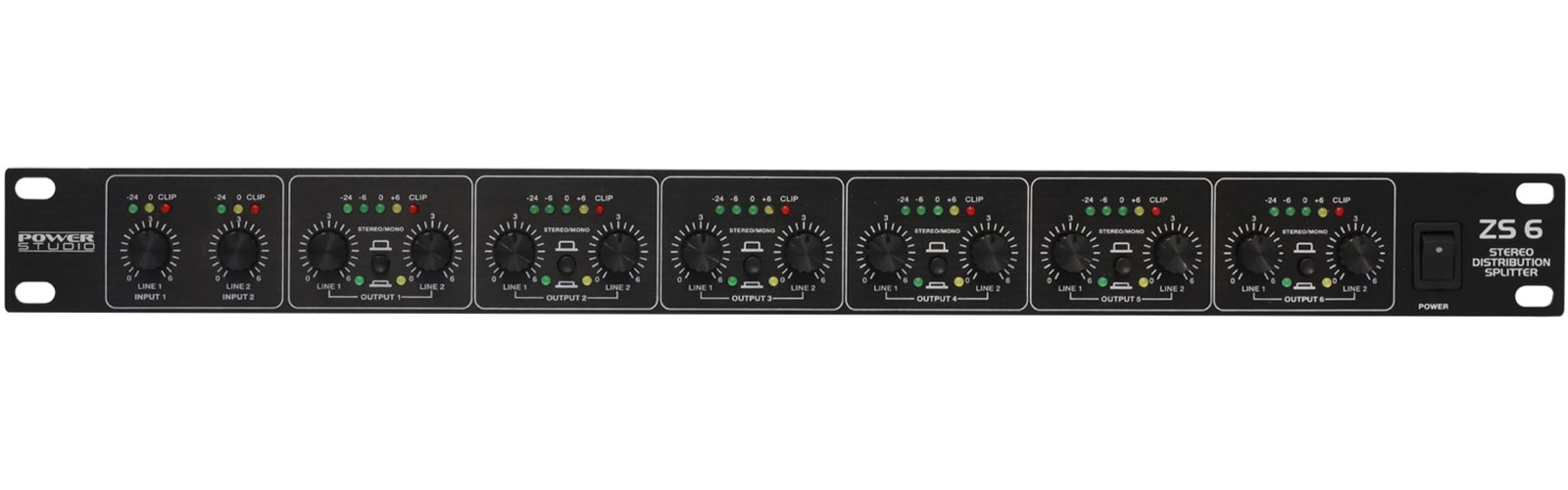

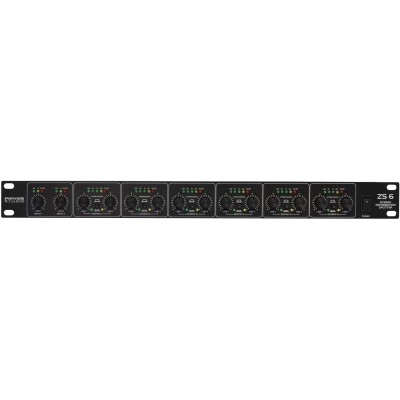

Stereo Zone Mixer


The ZS 6 is a zone mixer specially designed to distribute and control the volume of multiple audio sources independently across six different zones. It allows up to two stereo input signals to be distributed to six separate zones, each with its own volume control, LED display and mono/stereo mode.

Features:


- Ideal for fixed installations in multi-room venues
- Connects via 2 different XLR sources
- Stereo or mono operation
- Sources 1 and 2 are routed to the 6 zones with individual level control
- Balanced XLR inputs for sources 1 and 2
- Zone/output on balanced XLR
- Zone VU meters: Signal/Clip/Mono
- Frequency response: <10 Hz-25 kHz± 0.5 dB
- Input impedance: 44 Ohms
- Max input volume: + 21 dB
- Crosstalk: > 80 dB @1 kHz
- Input display: -24dB, 0 dB, Clip LEDs
- Output impedance: 50 Ohms
- Max output volume: +21 dB
- Crosstalk: >80 dB @1 kHz
- Output display: -24dB, -6 dB, 0 dB, +6 dB, Clip LEDs
- Signal-to-noise ratio: 97 dB
- THD: <0.5%
- Format: 1U/19" rack
- Power supply: 100-240 VA, 50/60 Hz
- Dimensions: 44 x 483 x 145 mm
- Weight: 1.7 kg
Referência marca: 7300_ZS_6
