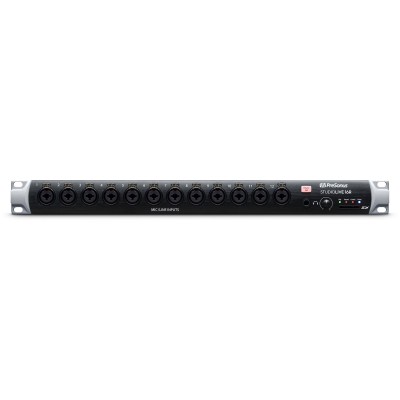

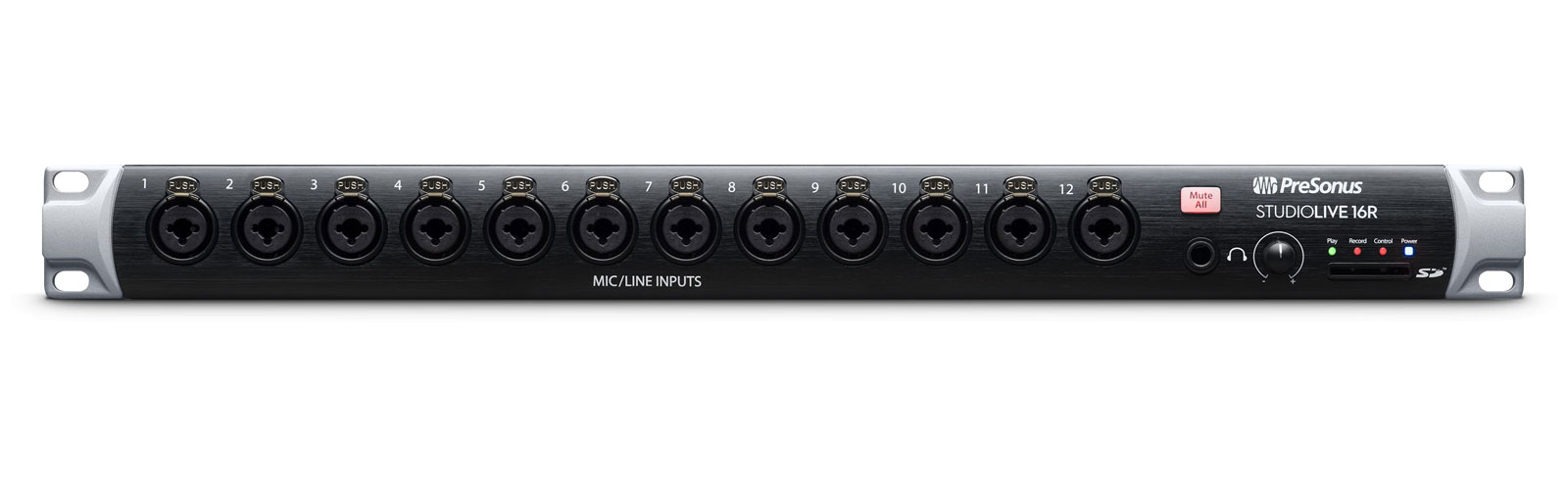

StudioLive 16R: 18-input, 16-channel Series III stage box and rack mixer.

The Presonus StudioLive 16R Series III rack mixer is a perfect partner for your StudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 16R to a Series III front-of-house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake—and the signal degradation that goes with long analog cable runs. You can even remote control the StudioLive 16R’s preamps and phantom power from your networked Series III console. In stage box + monitor mixer mode, the StudioLive 16R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class—all packed into just one rackspace. (1U).

Features
Local Inputs and Outputs
18 total inputs
16 mic/line channel inputs + 2 RCA inputs
6 ¼-inch TRS FlexMix outputs
2 XLR (L/R) Main outputs
Stereo headphone output

Channels and Buses
16 input channels
1 stereo digital return (SD Card, AVB, or USB)
10 buses:
6 FlexMixes (can be designated as aux, subgroup, or matrix mixes)
2 internal effects sends
Stereo main bus
6 Filter DCAs for easily and flexibly controlling groups of channels

Networking Connections
1 Ethernet control network port
Dynamic, Self Assigned, and Manual IP address modes
1 Locking XLR Ethernet AVB audio network port

Recording
Onboard stereo SD recorder
18x18 USB recording interface
32x32 AVB recording interface

Physical
- Dimensions (h x w x d): 45 x 483 x 305 mm
- Weight: 3.9 kg

System requirements:
Below are the minimum computer-system requirements for UC Surface, QMix®-UC, and Studio One®.

Mac
Mac® OS X 10.8.5 64-bit or later
Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)

Windows
Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
Intel Core 2 Duo (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)

Mac and Windows Systems
USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommended
34 GB hard disk space
Monitor with 1366x768 resolution

iOS
iOS 9.3 or later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2


Android (QMix-UC)
Android™ 5.0 (Lollipop) or later
Android smartphone (QMix-UC)
Android tablet (8-inch) with 1024x768 resolution (UC Surface)
