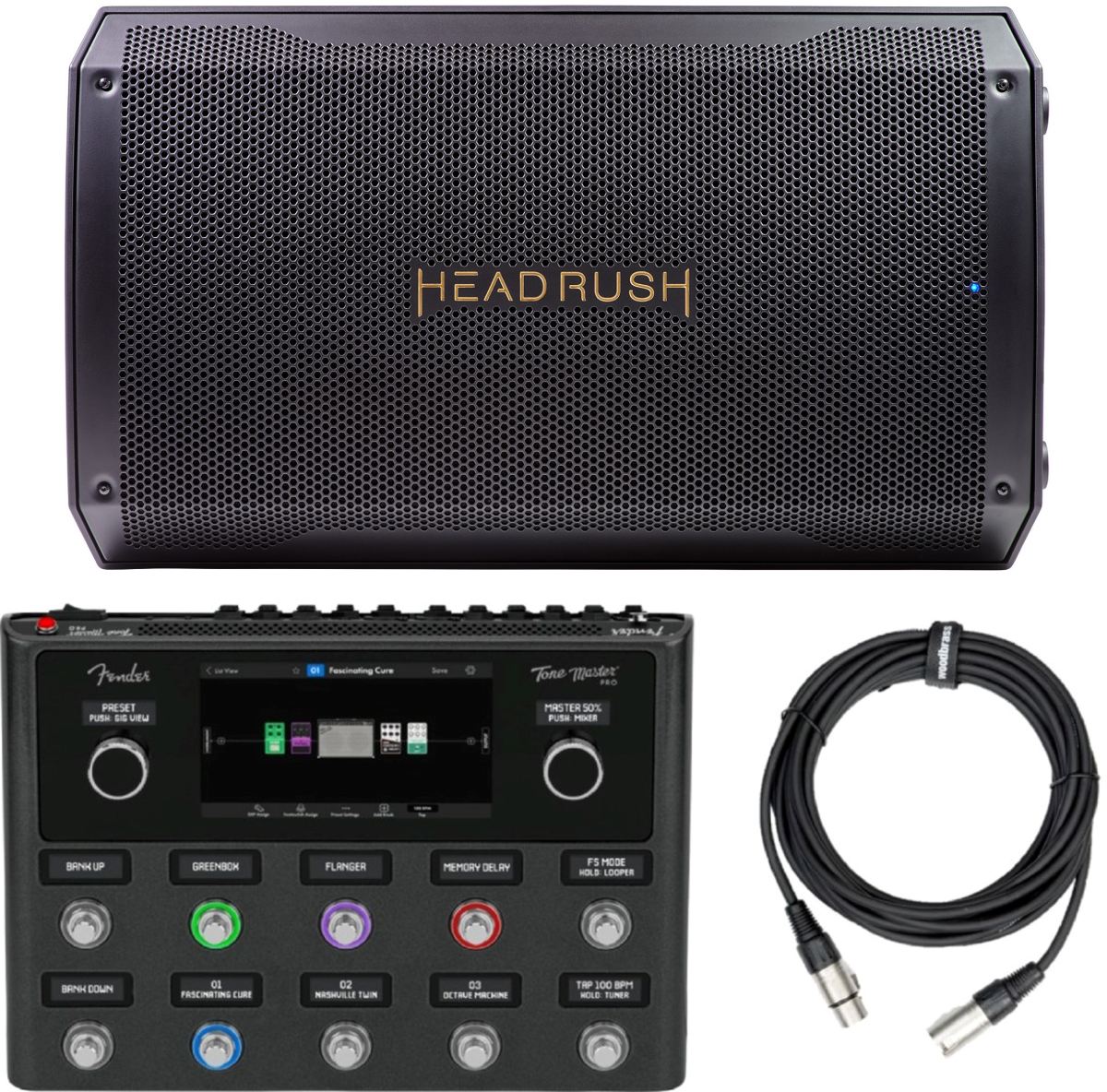

Fender Tone Master Pro
The Tone Master Pro is the first no-compromise guitar multi-effects workstation, offering the incredible sound quality for which the Tone Master series is renowned, combined with a powerful, intuitive interface and I/O package that make Tone Master Pro the most powerful, powerful and easy-to-use guitar processor available. Tone Master Pro features over 100 of the world's most popular amps and effects, including all the classic Tone Master Fender models, the first officially licensed EVH 5150 III Stealth model, and other must-have classics, all of which have been perfectly reproduced using our exclusive Tone Master Modeling process.
7" COLOR TOUCHSCREEN
Large, easy-to-read color touchscreen for easy navigation and quick editing of all parameters.
ENCODER FOOTSWITCHES WITH DEDICATED DISPLAYS
Each footswitch features a dedicated LCD display and integrated rotary control for instant visualization of function and parameter settings.
6000+ VIRTUAL/FACTORY SPEAKERS
Precise speaker IR captured with a collection of classic studio microphones can be mixed and matched with any amplifier for infinite sonic possibilities.
Features:
- Controls :
- Navigation control
- Master volume control
- 10 footswitches/encoders with LCD "Scribble Strips" display
- Connectivity:
- USB-C®, Bluetooth
- MIDI: dual DIN 5-pin (merge input/output)
- Power requirement: 40W
- Input voltage range: 100-220 VAC, 50/60Hz
- Microphone input :
- XLR female (Combo), balanced; Impedance: 1.8 kΩ balanced
- Maximum preamp input level: 4.7 V
- Phantom power: +48 VDC (XLR only)
- Instrument input : 6.35mm jack
- Impedance: 1 MΩ, 330 kΩ, 22 kΩ configurable unbalanced
- Maximum level: 5.6 V (2.8 V with input attenuator disabled)
- Line input: 6.35mm TRS female jack (combo), balanced
- Maximum level: 7.8 V balanced, 4.5 V unbalanced
- Impedance: 1MΩ
- Auxiliary input :
- 3.5 mm stereo
- Impedance: 10 kΩ
- Maximum input level: 2.4V
- XLR and line outputs:
- XLR: XLR male, balanced (stereo pair)
- Line outputs: Jack 6.35mm TRS
- female, balanced (stereo pair outputs 1 and 2)
- Digital audio bit depth: 32-bit
- Supported sampling rate: 48 kHz internal (Project Sync 44.1/48/88.2/96 kHz)
- Digital audio frequency response: 20 Hz - 20 kHz (+0.1/-0.7 dB)
- Effect loops :
- 4 total - mono loops (1 and 2) Unbalanced 6.35mm jack, mono loops (3 and 4)
- Balanced 6.35mm TRS jack (can be combined as a stereo pair) ;
- Impedance: 10 kΩ
- Other connections :
- Expression pedal 1 and 2 6.35mm jack, amplifier control
- Power cable: IEC
- Dimensions: 96.4 x 371 x 262 mm
- Weight: 4 kg
HEADRUSH FRFR-112 MK2
The ideal companion for amp and effects processors FRFR speakers, which stand for 'Full Range Flat Response', are specially designed to take advantage of the quality of the amp, speaker and effects models built into your guitar and bass processors, such as HeadRush Prime, Core or MX5. Unlike a guitar amp, whose amp-preamp section and loudspeaker with its distinctive sound often add undesirable colour to your models, FRFR speakers offer a pure, transparent sound that won't distort your models. Powerful and precise, the FRFR108 and FRFR112 MK2 deliver enough power for jam sessions, rehearsals and concerts.
Features:
- Amplification: Active
- Application: Facade, return, on mast
- Power handling :
- RMS power: 1,250 W
- Peak power : 2 500 W
- SPL Max / peak : 131 dB
- Number of channels : 2 channels
- Speaker diameter: 12"
- Tweeter: 1"
- Dispersion (H x V): 90° x 60°
- Frequency response: 53 Hz - 20 kHz
- Loudspeaker structure : ABS
- Inputs: 2 XLR/TRS combo jacks with independent volume control and clip LEDs
- Crossover frequency: 2 kHz
- Bluetooth 5.0 with dedicated volume control
- Ground switch
- Dimensions (mm): 351 x 354 x 607
- Weight (kg): 15.7 kg
