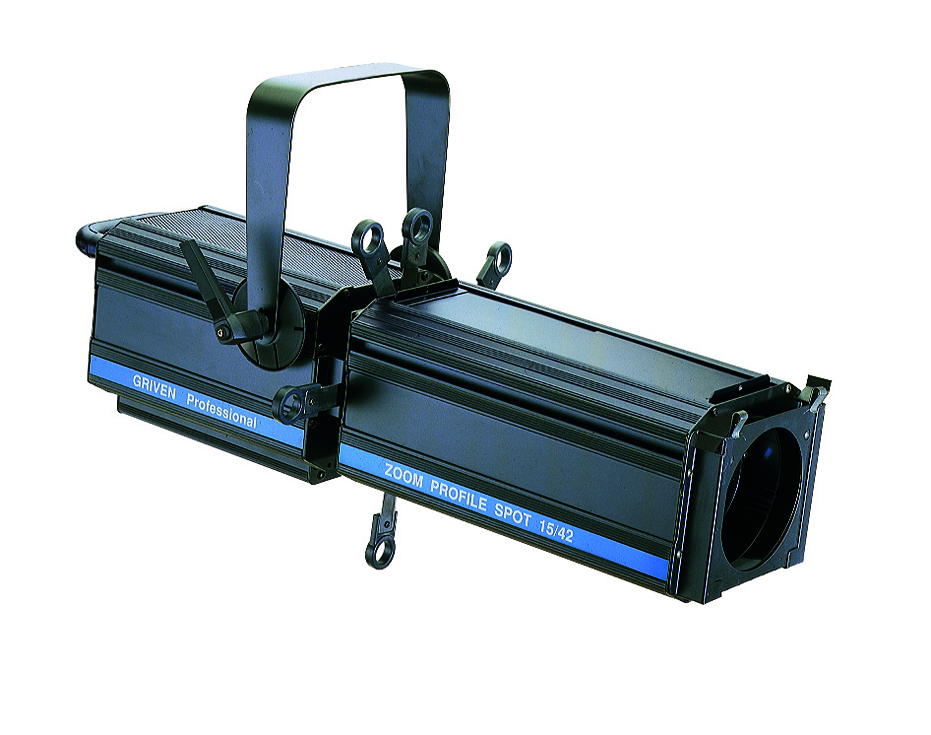

Profile spotlight designed for projecting a shaped beam of light in medium-large theatres and concert halls. The focusing of the beam and the variation in zoom optical system permits the variation and focusing of the beam with angle variation from 14° to 32° or from 22° to 45°. It's supplied complete with colour frame, 4 shutter blades to perfectly shape the beam, insulated rear handle and supply cable. The microswitch allows a safety replacement of the lamp. The adjustable lampholder allows to use 650, 1000 or 1200W lamp GX9,5 base. Painted with black epoxy powder finish. Iris diaphragm and gobo holder are available as optional extra.

The lamp is sold separately. Order code LP0928 (650W version) - LP0900 (1000W version) - LP0926 (1200W version)

LAMP
Type: HALOGEN
SOURCE
Wattage (W): 650-1000/1200
COLOURS
Base: GX 9,5
PROJECTION
Angle: 14°-32°/22°-45°
Gobos Ø (mm): 65-50
HOUSING
Cooling: exchange
SIZE
Width (mm): 355
Depth (mm): 790/720
Height (mm): 450

WEIGHT
16,5 Kg
POWER
Input (V): 230-240
Hz: 50-60
Amp: 2,8-4,3-5
PACKING SIZE
Volume: 0,133 m3
Weight: 19,0 Kg
Size: L92 x W38 x H38 cm
Boxes: 1 cardboard box
