Description

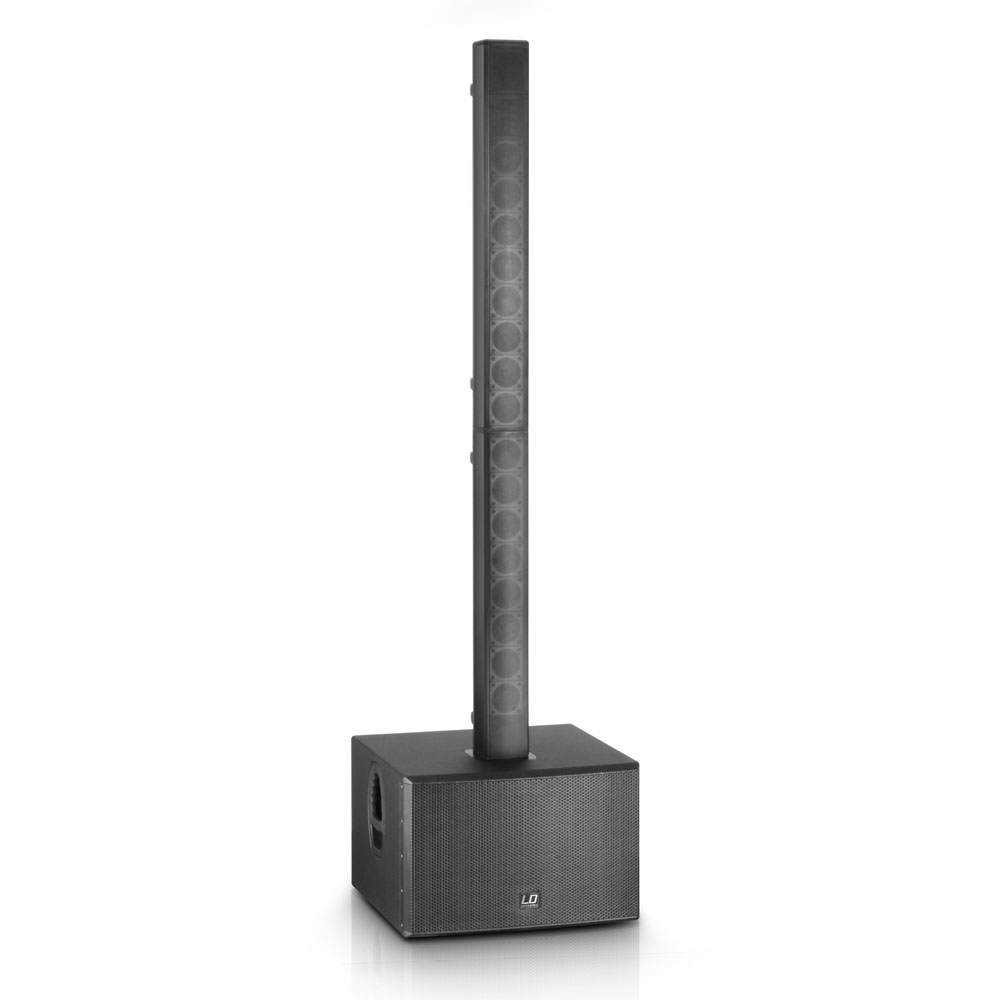

The MAUI 44 is the LD Systems' MAUI family flagship with a massive 1.600 watts RMS of system power , 40 Hz to 20 kHz frequency response and 129 dB peak SPL. Eminently suitable for musicians, DJs, solo entertainers and fixed applications the compact column PA provides superior sonic performance and comprehensive features.

Made from hard-wearing 15 mm birch ply and loaded with 2 x 12" neodymium chassis the band pass subwoofer is driven by two Hypex modules with separate SMPS . The 4 individual frequency groups of the vertical array featuring a total of sixteen 3,5" fullrange speakers with cast frames and integrated heat sinks plus two 1" Celestion HF drivers on a waveguide are individually powered by 4 discrete Class D amplifiers.

The MAUI 44 provides both combo (XLR / 6.3 mm Jack) and RCA inputs. Master and subwoofer levels are adjustable individually and allow a perfect sound balance between crystal clear high tones, punchy mids and powerful bass in any situation . The LD System’s LECC digital signal processing (Limiter, Equalizer, Compressor and Crossover) and dual limiters ensure distortion-free audio and extended dynamics while protections against short circuit, overcurrent and overvoltage guarantee a safe and reliable operation.

Designed for easy portability the MAUI 44 sub and aluminium array assembly weighs in at less than 60 kg. Custom multi-pin connectors minimize setup time , and the system's superior feedback resistance and extremely wide 120° horizontal dispersion eliminate the need for dedicated monitoring. Product number: LDMAUI44
Product type: PA system
Type: active
Colour: black
Max. SPL (continuous): 121dB
Max. SPL (peak): 129dB
Frequency response: 40 - 20000Hz
Dispersion (H x V): (horizontal) 120
Overall height: 2223mm
Weight: 58.4kg
Other features: LECC DSP, stable steel pins for a reliable connection between the components
Subwoofer
Low/mid driver dimensions: 2 x 12"
Low/mid driver dimensions (mm): 2 x 304,8mm
Woofer magnet: Neodymium
Woofer brand: Custom-made
Cabinet construction: vented
Cabinet material: 15 mm Plywood
Cabinet / Housing surface: Polyurethane
Subwoofer width: 620mm
Subwoofer height: 412mm
Depth Subwoofer: 615mm
Subwoofer weight: 40,8kg
Subwoofer features: Custom-made multipin connector for vertical array
Mid/Hi System
Midrange size: 16 x 3,5"
Midrange size: 16 x 88,9mm
Midrange magnet: Neodymium
Midrange brand: Custom-made
Tweeter dimensions: (with Waveguide 1 x 7° tilted) 2 x 1"
Tweeter dimensions (mm): (with Waveguide 1 x 7° tilted) 2 x 25mm
Tweeter magnet: Ferrite
Tweeter brand: Celestion
Loudspeaker inputs: 1 each
Speaker input connections: Custom-made multipin
: Closed
Mid/Hi system cabinet material: aluminium
Mid/Hi system cabinet surface: powder coated
Mid/Hi system width: 120mm
Mid/Hi system height: 1811mm
Mid/Hi system depth: 144mm
Mid/Hi system weight: 17,6kg
Mid/Hi system features: vertical array with an extremely wide sound dispersion
Amplifier Module (integrated in Subwoofer)
Amplifier: Class D
Amplifier Output System (RMS): 1600W
Amplifier Output System (Peak): 3200W
Amplifier Output Subwoofer (RMS): 800W
Amplifier Output Subwoofer (Peak): 1600W
Amplifier Output Mid/Hi (RMS): 4 x 200W
Amplifier Output Mid/Hi (Peak): 4 x 400W
Protection circuits: short circuit, Multiband limiter, over voltage, over-current
Cooling: passive
Controls: Main Level, sub level, Power On/Off
Display: limit, on, signal, protect (protection circuit engaged)
Operating voltage: Switching Power Supply, 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
Line inputs: 2
Line input connectors: XLR, 6.3 mm Jack, RCA
Line outputs: 1
Line output connectors: XLR
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin
DSP characteristics
DSP Functions: Compressor, EQ, Crossover, limiter
Bit depth AD/DA converter: 24/24
Internal sampling frequency: 48
Signal/noise ratio: 100dB
Brand reference number:LDMAUI44
