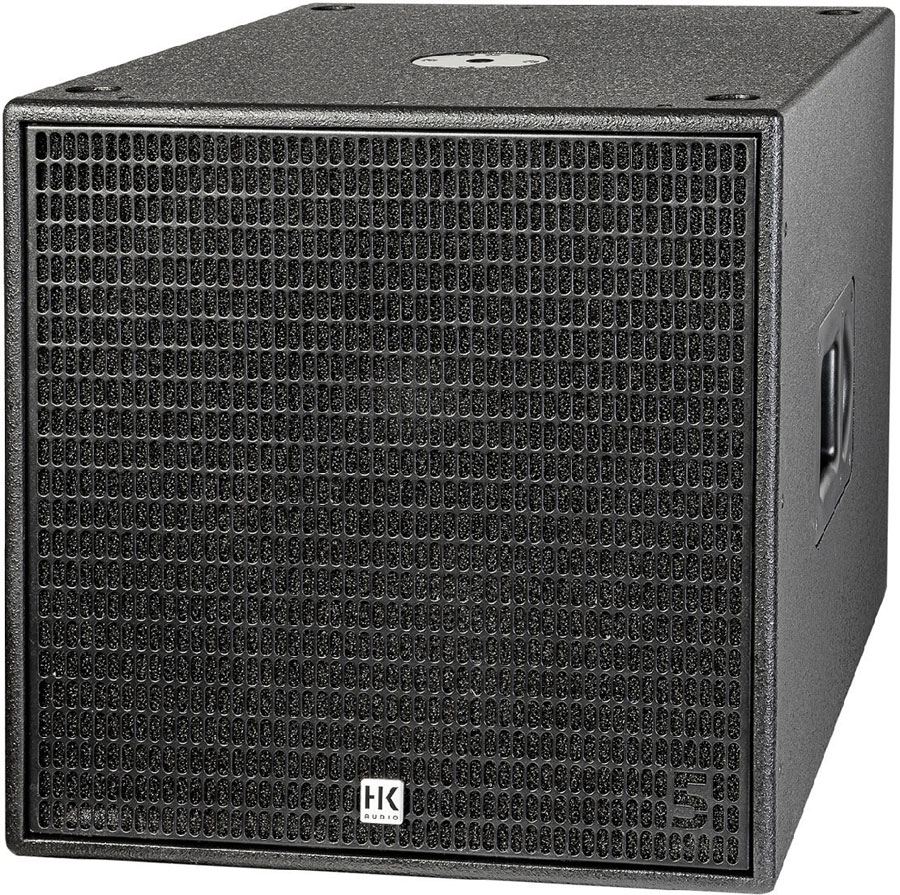

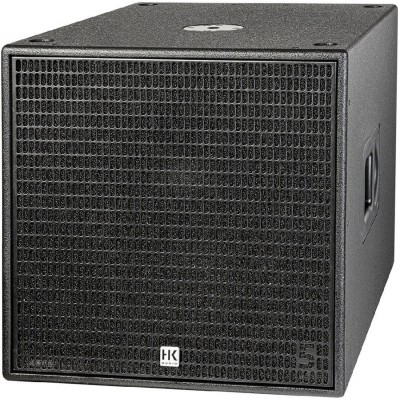

HK AUDIO L5MKII-115SUB-A ACTIVE SUBWOOFERThe new LINEAR 5 MKII series is a completely revisited version of the famous LINEAR 5 series. Made in Germany and equipped with the latest innovations in terms of technology, it is aimed at professional groups and service providers looking for sophisticated, versatile, flexible and economical tools for their daily activities. One of the major developments of the MKII version is the addition of a powerful DSP that can be controlled remotely using dedicated software via an Ethernet connection. The LINEAR 5 MKII can thus be managed over a network. In addition, HK has provided the possibility of integrating speakers that do not have their own DSP into the network.
The new models are lighter and have reduced dimensions compared to their predecessors to facilitate their handling .
To configure systems with optimized performance, two new subwoofers have been specifically developed. They have presets allowing use in cardioid mode.
Technical Characteristics:
- Amplified: Yes
- Bluetooth: No
- Category: sound system
- Connections: Combo, Link XLR, XLR
- Controls: limiter, input gain, mute switch, low pass filter control, polarity switch, delay
- DSP: Yes
- Diameter h-p: 15"
- Dimensions (mm): 48 x 53.5 x 67.5 cm
- EQ: 10-bands
li>
- Inputs: 2 x XLR/jack combo, RJ45
- Finish: Black
- Weight (kg): 32 .90 kg
- Max SPL pressure / peak: 130 dB
- RMS power / peak: 1,200 W
- RMS power: 600 W
- Max SPL: 127 dB
- Outputs: XLR link, XLR DSP
- Speaker structure: plywood birch - MDF
- Transport: 2 handles
- Type: active subwoofer
- Insert type: M20
- Frequency response +/-3 dB: 44 Hz ? cut-off frequency
- Frequency response - 10 dB: 40 Hz ? cutoff frequency
