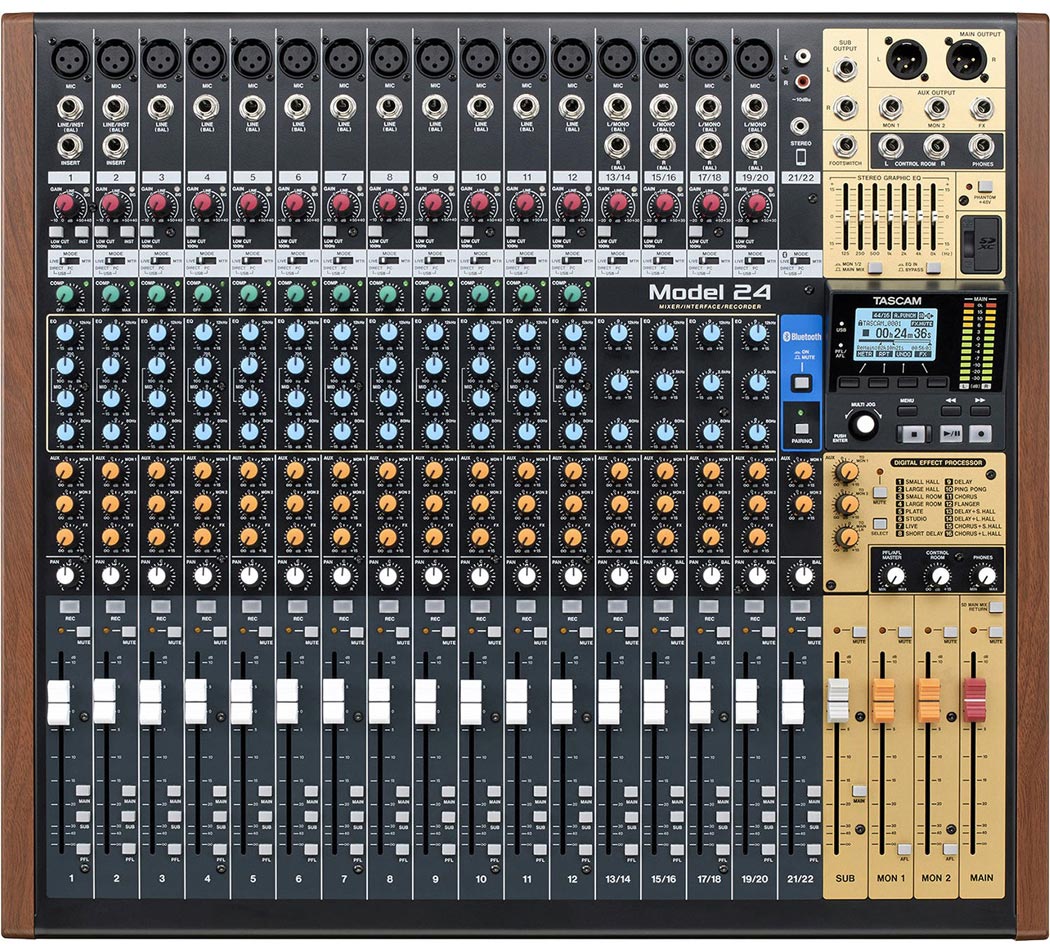

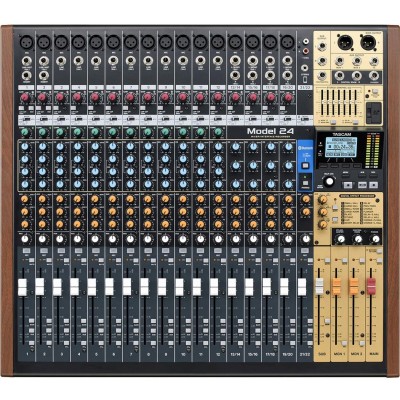

Tascam MODEL 24

Description

Classic sound, revived - A professional hybrid console, combining the warmth of analog and the latest modern technologies
Tascam has always created recording solutions that have become standards: the 8-track Tascam 38 tape, the modular digital multitrack DA-88, and the legendary family of Portastudios, real portable integrated studios on analog cassette then hard drive. Today, Tascam is reinventing its heritage, combining the classic sound of analog consoles with the latest audio technologies: Here is the brand new live console with multitrack recorder, the Model 24.

Whether in rehearsal, concert or production, the Model 24 is an ideal mix: multitrack recorder, mixing console and audio interface. This triple-function hybrid recording console is the result of an evolution perfectly in line with the current requirements of the world of music.

A simple and intuitive design
One glance is enough to understand what is happening: the Model 24 has been developed to be simple and intuitive to use, for everyone. Its physical 100 mm stroke faders provide precise level adjustment, the 7-band stereo graphic equalizer is easily accessible to work on the mixing spectrum, the Mon send equalizer potentiometers are familiar and the input / output connectors are all located on the console's work surface for quick and easy access.

Revolutionary Tascam recording technology
The Model 24 allows the user to record directly to SD card, 24 tracks in 48 kHz / 24 bit, and allows recording inputs / outputs (punch in / out) on 8 tracks at a time. Thanks to the revolutionary Tascam audio chip technology, the console can also play 22 tracks simultaneously from an SD card. The 16 high-end Tascam microphone preamps guarantee a sound of absolute purity.

Flexible connectivity
The Model 24 offers 22 analog inputs: 20 balanced channels (divided into 12 mono channels and 4 stereo channels) and 1 unbalanced stereo input. In addition, the Model 24 connects to your favorite audio workstation software via USB. You can also connect your smartphone to it, via Bluetooth ™, to recover a streaming audio signal, whether it is to work on a song during rehearsal or to broadcast percussive music on hold in order to make your audience wait before you arrive on stage.

Longevity and reliability
The console is lightweight - it is easily transported from a studio to a rehearsal room or concert venue, wherever you actually want to work, and the well-known reliability of Tascam equipment ensures that the Model 24 will perform perfectly anywhere.

Features:
- 22 channels: 12x mono and 5x stereo
- Integrated 24-track recorder
- Recording on SD card with a maximum resolution of 24 Bit / 48 kHz
- Simultaneous playback of 22 tracks possible
- Functions as a 24-channel USB audio interface
- 3-band EQ for channels 1 to 20
- Compressor for channels 1 to 12
- Integrated effects processor
- 3 auxiliary channels
- 7-band graphic equalizer for Master or Aux / Monitor
- Bluetooth receiver for wireless stereo sources
- 100 mm fader
- 16 XLR microphone inputs with +48 V phantom power
- 22 6.3 mm TRS jack line inputs
- Main stereo output: XLR
- Sub stereo output 6.3 mm jack TRS
- Stereo 6.3 mm jack TRS Control Room output
- 6.3 mm stereo jack headphone output
- Integrated power supply
- Dimensions: 577 x 529 x 106 mm
- Weight: 10.4 kg
Brand reference number: MODEL_24

Testimony

4,8 /5
5★
4★
3★
2★
1★
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullhalf
Use
fullfullfullfullhalf
An excellent analog console. A real treat for the ears and eyes! Very well designed, reliable and sturdy. The summing results are extraordinary, the musical EQs, the resistance and travel of the faders are top-notch... In short, pure happiness and top-notch Woodbrass service ;-) Don't hesitate for a second.
Certified
Posted on 21/07/2022
By Adrien S.
The mixer is of very good build quality. I have been using Tascam products in my home studio for years now, because of their build quality and performance.
Verified
Posted on 02/11/2021
By Shafty David Sylvain Abé
Quality
fullfullfullfullempty
Quality / price
fullfullfullfullfull
Use
fullfullfullfullfull
Tascam is already one of my favorite brands. Model 24 is the top versatile mixing console.
Verified
Posted on 07/12/2022
By Funkle Ace
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullfull
Use
fullfullfullfullfull
Super product developed by the company Tascam. An extraordinary value for money.
Verified
Posted on 04/06/2021
By Frederick
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullfull
Use
fullfullfullfullfull
Perfect for live recordings on Logic Pro X.
Verified
Posted on 15/07/2022
By M. Fran�Ois Cherel
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullempty
Use
fullfullfullfullempty
Up to my expectations!
Verified
Posted on 11/11/2021
By Thierry FERREIRA
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullempty
Use
fullfullfullfullempty
Very good product - as usual, it always takes me a little time to master all the features
Verified
Posted on 16/10/2023
By JF PEIGNER
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullempty
Use
fullfullfullfullempty
No simple midi setup
Verified
Posted on 07/10/2022
By Timothee Trouillot
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullempty
Use
fullfullfullemptyempty
