Mixer Line inputs 8 stereo sources. Stereo output. Bus connector.

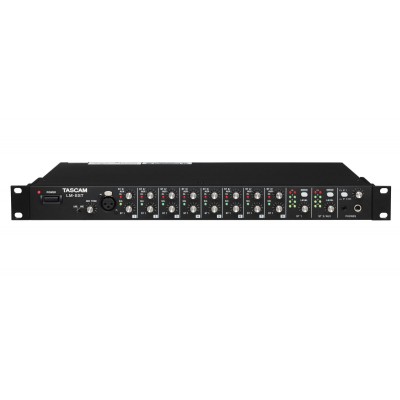

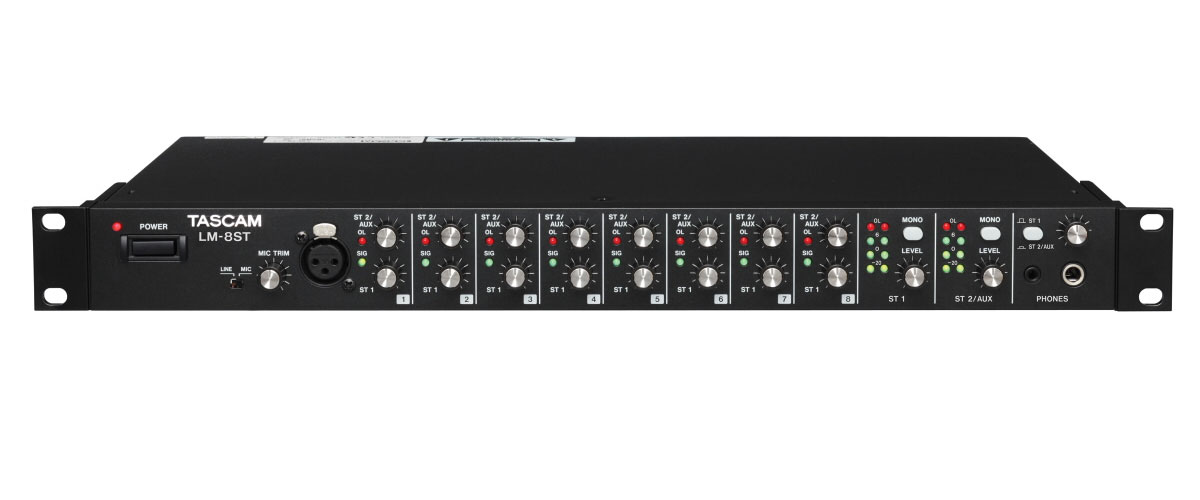

The LM-8ST is a compact line signal mixer, designed for installations, studio premixes, keyboard mixes on stage or, more generally, for anyone who needs to mix stereo signals at line level. It allows 8 stereo line sources - CD player, MP3 player, tuner, musical instrument, etc. - to be independently assigned to a pair of stereo outputs. For this second output, the user can choose between pre- or post-fader assignment. Input and output level control knobs and level indicators allow all signals to be monitored. A microphone input on the front panel is provided for announcements, for example. Inputs and outputs on the Master bus are available for cascading several devices if desired.
The LM-8ST has a robust metal case, 1U rack, with integrated power supply (no power adapter), for years of safe and reliable connection.
Features:
- Line-level stereo mixer, highly flexible signal routing
- 8 stereo inputs (on balanced TRS jack)
- Additional mic/line input on XLR on front panel for channel 1
- 2 stereo inputs (ST1 and ST2/AUX, balanced XLR / unbalanced RCA)
- Each stereo input signal can be mixed independently on each stereo output:
- ST1: the input signal is sent to the ST1 output.
- ST2: The signal is picked up before the ST1 level control potentiometer, then sent to the ST2/AUX output.
- AUX: The signal is picked up after the ST1 level control potentiometer, then sent to the ST2/AUX output.
- Input level selection (+4 dBu / –10 dBV) per channel
- LED indicators for signal presence and clipping
- 2 x 4 LED level indicator on each output
- Mono switch on each stereo output
- High-power headphone output, with level control and choice of source (ST1, ST2/AUX)
- Balanced input and output for Master bus (ST1, ST2/AUX and Mix)
- Ground terminal and ground lift switch
- Easy fuse replacement
- 1U rack-mountable case
