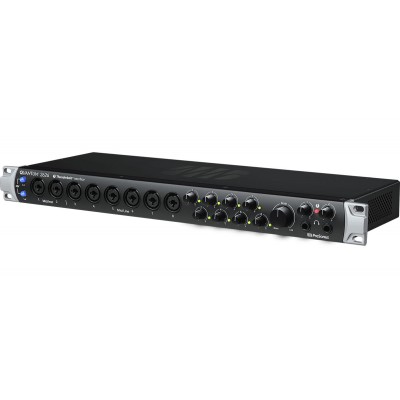

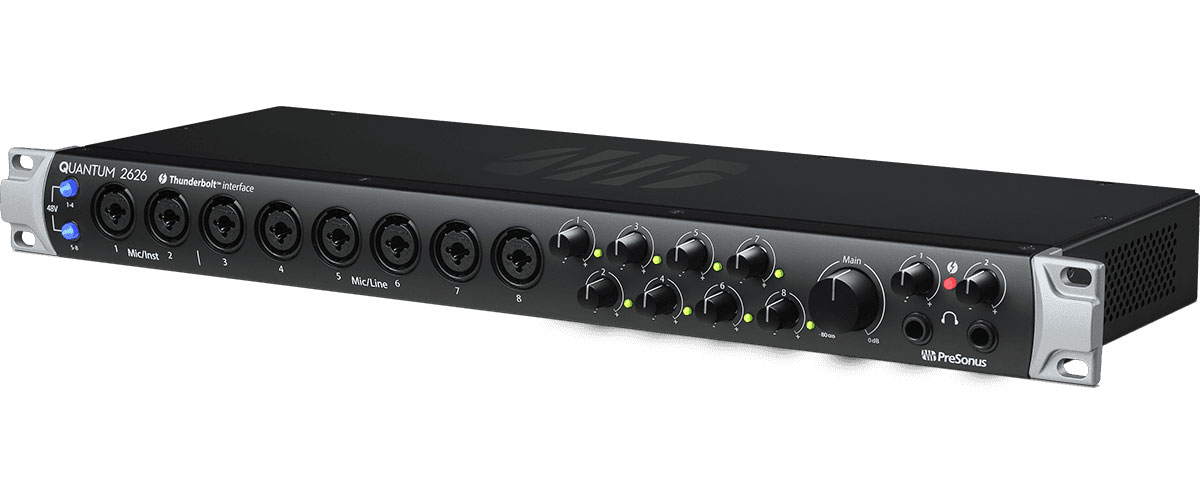

Essential Information About the PreSonus Quantum 2626 Audio Interface
- Ultra-low round-trip latency advertised at under 1 ms (depending on configuration) for recording with an immediate feel, even with real-time processing.
- High-definition conversion up to 24-bit/192 kHz, with 115 dB dynamic range in AD/DA for detailed recordings and precise monitoring.
- 8 analog XMAX preamps (Class A) on combo inputs, designed to remain transparent and musical, with a wide headroom.
- Full 26x26 rack format: ADAT, S/PDIF, MIDI, word clock, dedicated headphone outputs, plus direct outputs with insert returns to integrate external gear.
A Thunderbolt 3 Reference in the Quantum Range
The Quantum 2626 fits within the Quantum series philosophy: an interface focused on speed and fidelity, designed to minimize latency without sacrificing audio quality. Its Thunderbolt 3 architecture and driver-centric design aim for a modern workflow, allowing quick transitions from recording to mixing, with conversion and clocking engineered to preserve transients and detail.
Who Is It For, and What Studio Uses?
This interface targets demanding home studios, project studios, and hybrid setups that want to record multiple sources simultaneously (drums, bands, multi-mic recordings) while maintaining near-instant headphone response. With its numerous inputs, analog outputs, and digital I/O, the Quantum 2626 is also suitable for producers switching between vocal/instrument tracking, re-amping, integrating preamps or external compressors, and high-resolution mixing sessions.
Performance, Preamps, and Integration: Designed for Recording Without Compromise
Conversion and Clocking for a Stable Image
The Quantum 2626 operates up to 192 kHz and relies on conversion boasting a 115 dB dynamic range to maintain a clean stereo image, clear lows, and smooth highs. The low-jitter clock contributes to a more stable playback, useful both during tracking and monitoring.
XMAX Preamps: Transparency and Gain Headroom
The XMAX microphone preamps (Class A, analog design) are engineered to capture sources accurately, maintaining headroom before saturation and a natural response. This is an appropriate choice if you record dynamic vocals, acoustic guitars, or drums where transient handling is critical.
26x26 Routing and Inserts for a Hybrid Studio
With 26x26 simultaneous I/O, the Quantum 2626 facilitates routing to headphone mixes, control room monitoring, and external processing. The two direct outputs with two insert returns allow easy integration of analog devices into the chain without complicating cabling.
Technical Specifications
Audio and Conversion
- Resolution: 24-bit/192 kHz
- AD/DA conversion with 115 dB dynamic range
- Simultaneous I/O: 26x26
Interface and Compatibility
- Thunderbolt 3 audio interface
- Compatible with Mac OS X 10.11.6 or higher
- Windows 10 64-bit
- Integration with Studio One
Analog Inputs and Preamps
- 2 x combo mic/instrument/line inputs; XMAX preamps
- 6 x combo mic/line inputs; XMAX preamps
Analog Outputs and Monitoring
- 2 x direct outputs with two insert returns for external devices
- Main output (L/R) on 6.35 mm TRS jack
- 8 x 6.35 mm TRS jack outputs with DC power for analog gear
- 2 x headphone outputs with dedicated volume control
Digital I/O and Synchronization
- ADAT I/O: 16 x 16 (44.1/48 kHz), 8 x 8 (88.2/96 kHz)
- S/PDIF I/O
- MIDI I/O
- BNC word clock I/O
Included Software
- Includes: Studio One Artist, Ableton Live Lite, and Studio Magic plug-in bundle
Form Factor
- Dimensions: 483 x 140 x 45 mm
- Weight: 2.22 kg
