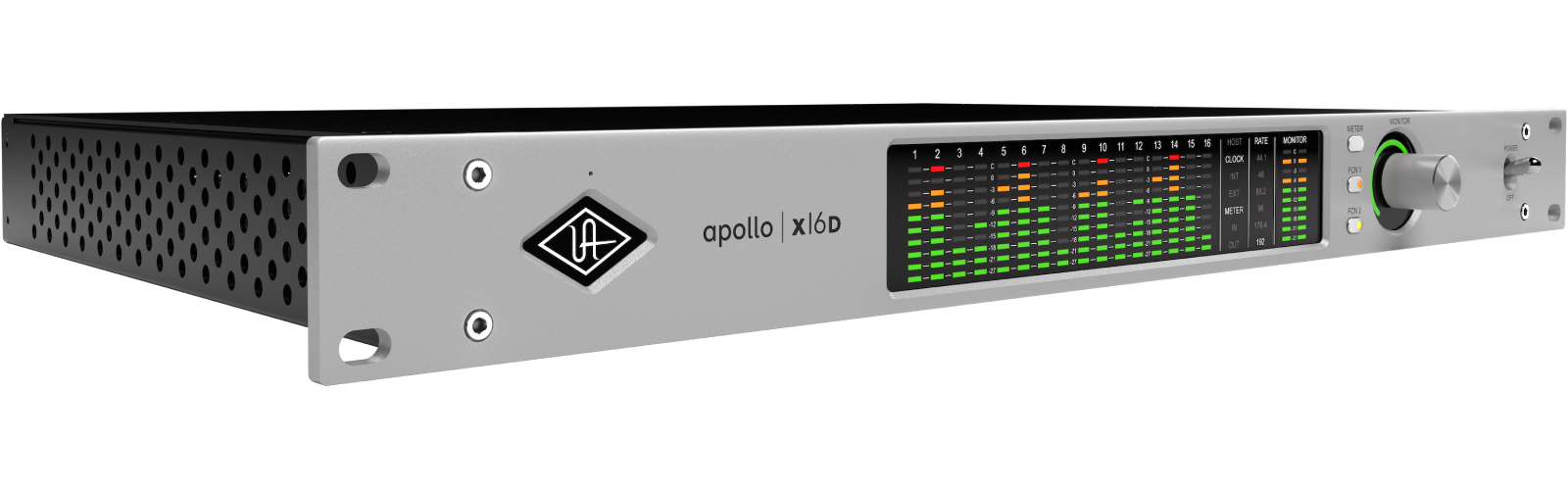

Essential Information About the Universal Audio Apollo x16D Audio Interface
- Hybrid Thunderbolt 3 and Dante 16x16 connections for seamless integration in live and networked studio environments.
- Real-time UAD processing via HEXA Core DSP for near-zero latency effects chains and instant MIDI recall.
- Premium 24-bit/192 kHz conversion and 16-channel immersive monitoring for Dolby Atmos, Auro-3D, Sony 360 Reality Audio.
- Expandable ecosystem: chain up to four x16D units for 64 Dante channels with network redundancy.
The Network Gateway of the Apollo X Range
The "D" version of the iconic Apollo X, the Apollo x16D adds Dante networking to the conversion and DSP praised by studios. It connects digital consoles, control rooms, and auxiliary rooms without multiplying interfaces, while maintaining the Apollo philosophy: premium sound and real-time UAD plug-ins.
For Live Engineers and Multi-Room Studios
Whether mixing a tour, capturing a concert, or managing a multi-room studio, the Apollo x16D offers a fast, reliable, and consistent workflow. Snapshots and MIDI recall allow you to instantly retrieve your UAD chains without interrupting artists or compromising latency.
Modern Workflow, UAD Power, and Dante Network
Real-Time UAD Processing
Insert emulations of Teletronix LA-2A and 1176 compressors, Pultec equalizers, Neve and SSL channel strips, as well as Antares Auto-Tune, directly at the input. The HEXA Core DSP supports full effects chains for recording and mixing with a natural playing feel.
Dante with Redundancy and Scalability
Two RJ45 ports provide the main and redundant Dante connections. You can chain up to four x16D units to reach 64 network channels or integrate an existing Apollo Thunderbolt into your Dante infrastructure without starting from scratch.
Immersive Monitoring Ready for Atmos
The mixing engine handles up to 16 channels for current immersive formats. Benefit from clear routing, precise front-panel LED metering, and monitor output control on XLR for reliable calibration in the control room.
Technical Specifications
Audio and Conversion
- Resolution: 24-bit/192 kHz.
- 16-channel immersive audio mixes compatible with Dolby Atmos, Auro-3D, Sony 360 Reality Audio, and others.
- Front-panel LED metering.
DSP and Processing
- 6-core SHARC DSP (HEXA Core) for internal real-time UAD processing.
- MIDI recall of plug-in settings.
Connections and Network
- 16x16 Thunderbolt 3 audio interface with Dante.
- 2x Thunderbolt 3 ports.
- 2x RJ45 ports for Dante (main and redundant network).
- AES/EBU input/output on XLR.
- Word Clock input/output on BNC.
- Chainable up to four x16D units to create a 64-channel Dante system with redundancy.
Monitoring and Control
- 2x Monitor outputs on XLR.
- 2x assignable function buttons.
Power and Chassis
- Connection for external power supply unit.
- 19-inch rack format - 1U.
Software Included
- Included: Essentials+ Edition plug-in bundle.
- Preamps and channel strips: Century Tube Channel Strip; Helios Type 69 Preamp & EQ; Helios Type 69 Preamp & EQ Legacy; Precision Channel Strip; UA 610-A Preamp & EQ; UA 610-B Preamp & EQ.
- Dynamics: Fairchild 670 Legacy; Teletronix LA-2A Classic Leveler; Teletronix LA-2A Gray Classic Leveler; Teletronix LA-2A Silver Classic Leveler; UA 1176LN Legacy; UA 1176SE Legacy.
- Tuning and Utilities: Auto-Tune Realtime Access; Precision Enhancer Hz; PolyMAX Synth.
- Delays, Echoes, and Modulations: Galaxy Tape Echo; Oxide Tape Recorder; Precision Delay Mod; Precision Delay Mod L; Precision Reflection Engine.
- Reverbs: Pure Plate Reverb; RealVerb Pro.
- Equalizers: Pultec EQP-1A Passive EQ; Pultec HLF-3C Passive EQ; Pultec MEQ-5 Passive EQ.
- Saturation and Amps: Raw Distortion; Ampeg SVT-VR Bass Amplifier; Marshall Plexi Super Lead 1959.
