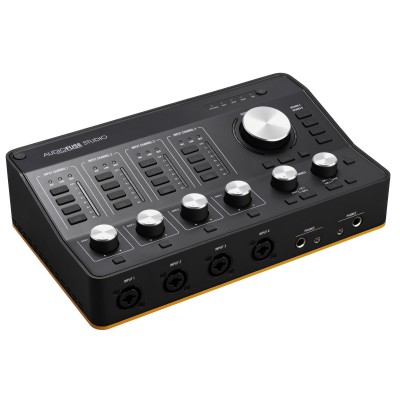

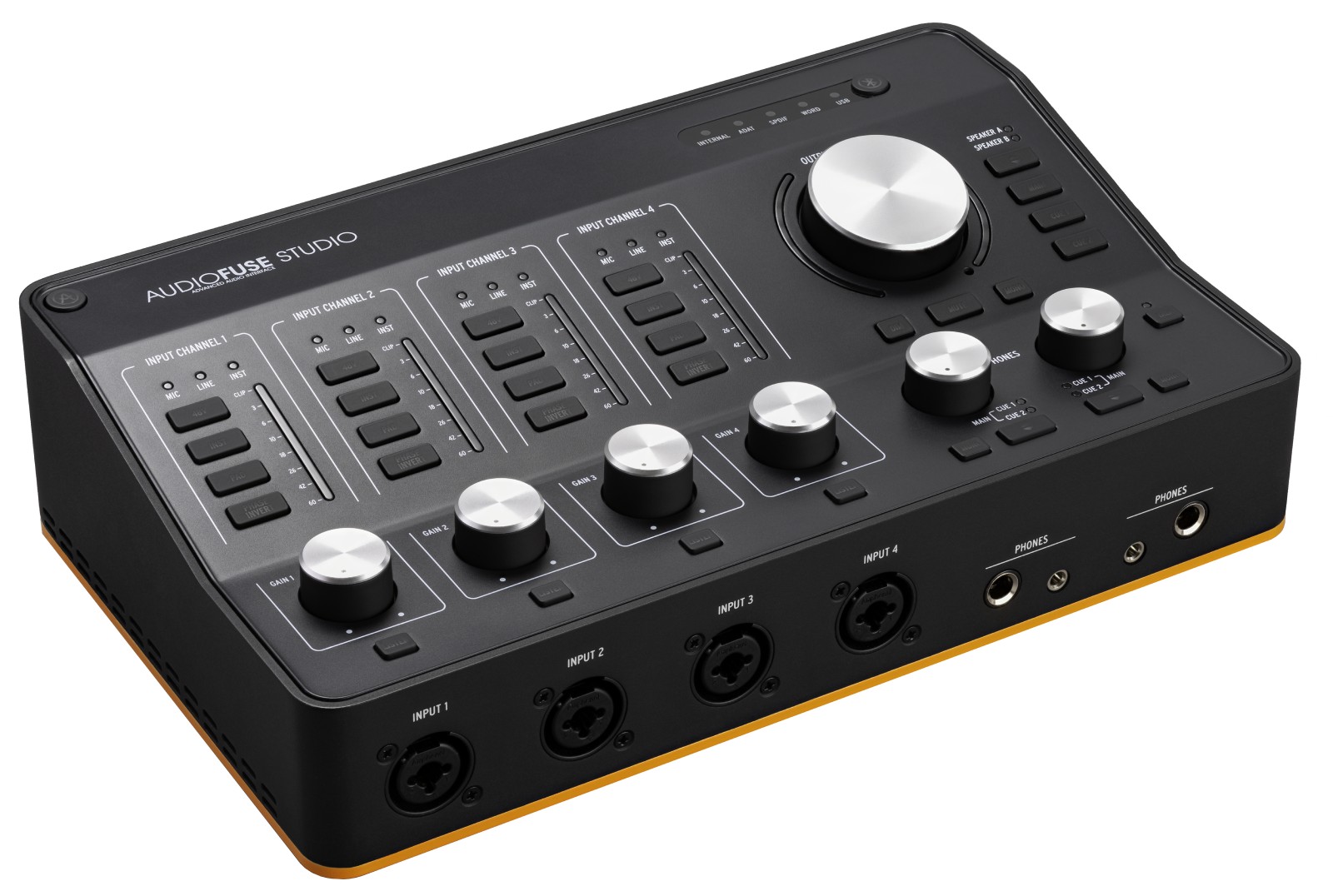

The quantity and quality of AudioFuse Studio connections must be seen to be believed. 4 TOR Pro inputs, 4 line outputs, 4 analog insertion points, ADAT I / O, SPDIF I / O, Word Clock, USB-C and MIDI. Oh, and a 3-port USB hub, because you can never have too many USB ports! AudioFuse Studio keeps it all in one place, with a well thought-out workflow and "one button: one function" controls, so you can stay creative and focus on what matters: your music. Quality.
Features: - Max resolution: 24 bits / 192 kHz - 18 inputs and 20 outputs - 4 microphone / line inputs: XLR combo plug / TRS jack - 4 line inputs: 6.3 mm TRS jack - Phono input: Cinch - Inputs 1 to 4 switchable instrument level - Inserts for inputs 1 to 4: 6.3 mm TRS jack - 4 line outputs: 6.3 mm TRS jack - 2 auxiliary outputs: 6.3 mm TRS jack for line level signals and for reamping - S / PDIF coaxial input and output: Switchable cinch for Wordclock - 2 headphone outputs: 6.3 mm TRS and 3.5 mm TRS - 2 ADAT inputs / outputs for a maximum of 8 channels at a sampling frequency of 96 kHz - Integrated Bluetooth audio receiver - Compatible with AAC and aptX files - Integrated monitor controller with dim / mute / mono functions - Monitoring and source selection - Integrated triple USB hub for external devices - USB-C plugs - Supports USB 2.0 - Compatible with Windows and Mac OS X - Robust metal housing - Comes with AudioFuse Creative Suite - Dimensions: 265 x 160 x 72 mm - Weight: 1.5 kg
