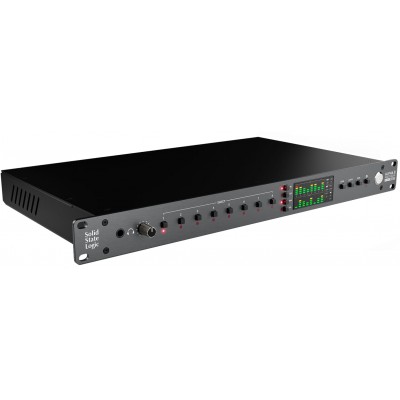

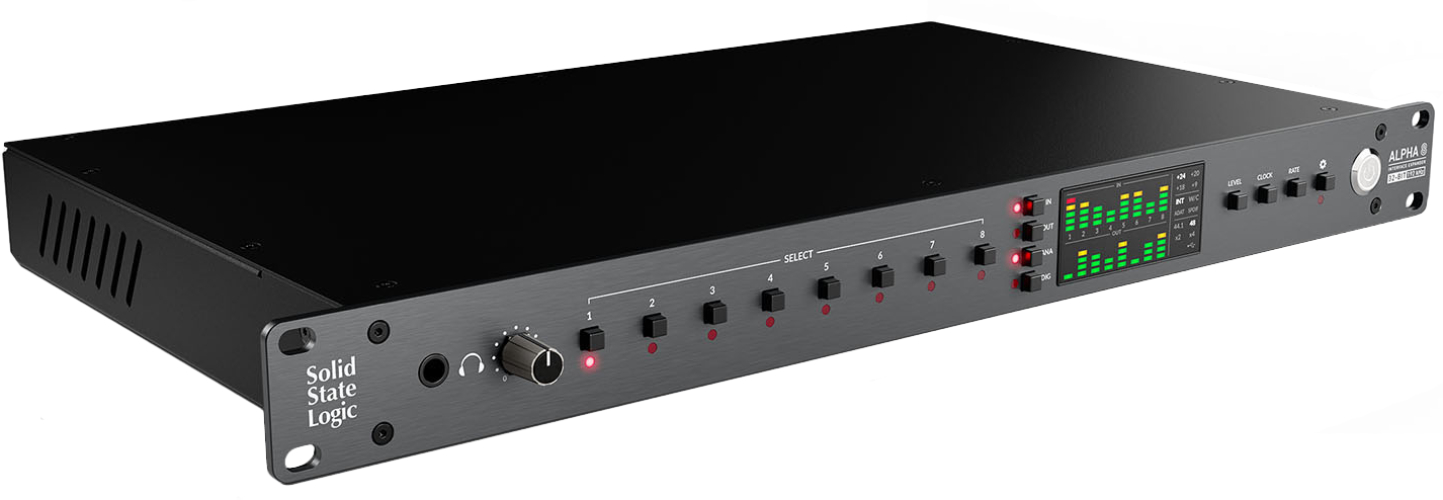

The Essentials to Know About the 8x8 AD/DA Converter "ALPHA 8"
- Next-generation 32-bit/192 kHz conversion for studio-quality sound and extended dynamic range
- Ideal expansion via ADAT and S/PDIF or aggregated USB interface with 18 inputs/18 outputs
- Flexible routing of analog and digital I/O to adapt to any configuration
- Reliable front-panel headphone control plus input/output knobs for instant adjustments
From Alpha Link Heritage to a New 8x8 Benchmark
Designed in the lineage of the renowned "Alpha Link" series, the ALPHA 8 modernizes the 8-in/8-out converter approach with updated electronics and 32-bit/192 kHz converters. It adds front-panel control (high-power headphone, I/O knobs) and USB connectivity allowing simultaneous use of analog and digital inputs and outputs, creating a true 18x18 interface when the workflow demands it.
For Hybrid Studios, Producers, and Hardware-Oriented Engineers
Whether you're looking to expand an existing interface via ADAT/S/PDIF or centralize a hardware setup (synths, drum machines, samplers, outboard gear), the ALPHA 8 integrates seamlessly. Its optimized line level and minimal crosstalk ensure clean analog inserts, while the "confidence" headphone monitoring lets you quickly listen to any input or output pair for fast checks.
Key Features and Innovations
High-End Conversion
The 32-bit/192 kHz converters deliver a high level of detail, with exceptionally low noise floor, reduced THD+N, and wide dynamic range. The result is a more faithful capture and precise monitoring for both mixing and mastering.
Modular Routing
From simple analog <-> ADAT/S/PDIF bridging to the 18x18 USB configuration, the ALPHA 8 offers multiple modes to make the most of its 8 analog channels and 10 digital channels. You choose whether the device acts as a conversion expander, main interface, or a mix of both.
Front-Panel Monitoring and Control
The high-current headphone output facilitates quick checks of any source or bus without detouring through software. Dedicated input and output knobs provide precise gain staging directly on the unit to set your recording and reamping levels.
Clocking and Studio Integration
With Wordclock input/output and switchable termination, as well as synchronization options from the internal clock, ADAT, S/PDIF, or incoming Wordclock, the ALPHA 8 effortlessly locks into the heart of an existing digital network.
Technical Specifications
Conversion and Audio
- Next-generation 32-bit/192 kHz converters
- High dynamic range, optimized THD+N and crosstalk
- 8 balanced line inputs and 8 balanced line outputs
- Line level tailored for external analog processing, synths, samplers, and drum machines
Connectivity and I/O
- Up to 8 channels of analog-to-ADAT and ADAT-to-analog conversion
- 10 digital I/O: 8 ADAT channels + 2 S/PDIF channels
- USB audio interface with 18 inputs / 18 outputs (simultaneous addressing of analog and digital I/O)
- Reliable high-current front-panel headphone control (listening to any input, output, or stereo pair)
- Dedicated input and output level knobs on the front panel
Clocking and Synchronization
- Wordclock input and output with termination switch
- Internal clock or synchronization via ADAT, S/PDIF, or incoming Wordclock
Format and Dimensions
- Dimensions: 630 x 370 x 250 mm
- Weight: 6 kg
