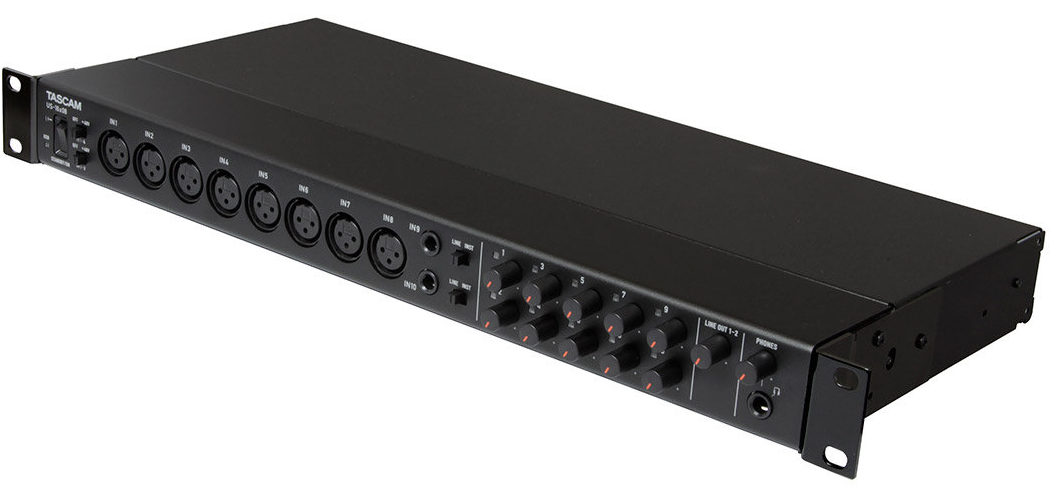

Tascam US-16X08

Register here and stay informed about the next restock

Description

Essential Information About the Tascam US-16x08 Audio Interface

  • 16 inputs and 8 outputs to handle ambitious recording sessions: drums, live band, multitrack recordings in a home studio.
  • 8 Ultra-HDDA mic preamps: transparent sound, low noise floor, and up to 56 dB of gain to accommodate both dynamic and condenser microphones.
  • Built-in low-latency DSP mixer with 4-band EQ and compressor on each channel for detailed headphone mixes and control mixes.
  • Comprehensive connectivity: balanced line inputs, 2 front-panel instrument inputs, dedicated line outputs for monitoring, MIDI I/O, and USB Audio Compliant 2.0 compatibility.

A Multichannel USB Interface Designed for Complex Recordings

The Tascam US-16x08 fits into the brand's "practical studio" approach: offering a USB interface capable of centralizing a large number of sources without multiplying devices. Its rack-mountable format and input distribution (mics on the front, additional line inputs on the rear) make it a coherent solution for a fixed setup, whether it's an advanced home studio or an equipped rehearsal room.

Who Is It For and What Studio Uses?

This audio interface is ideal if you record multiple musicians simultaneously: drums (multiple mics), direct guitars and basses, stereo keyboards, vocals, or live captures. The two front-panel inputs switchable between instrument and line level facilitate direct connection of an electric guitar or bass, while the balanced line outputs allow feeding monitoring speakers, a foldback system, or console inputs.

In production, the DSP mixer enables building comfortable monitoring with minimal latency, without overloading the computer. And if your needs evolve, the US-16x08 can also be used as a standalone mic preamp, convenient for expanding an existing system or creating an input rack.

DSP, Monitoring, and Connectivity: A Smooth Daily Workflow

DSP Mixer with Channel Processing

The onboard DSP mixer allows precise monitor mixing for musicians: each channel features a 4-band EQ and a compressor to fine-tune a vocalist's headphone mix, control a bass's dynamics, or brighten a drum take during playback. The result: faster, more enjoyable sessions and better-controlled recordings.

Monitoring and Dedicated Outputs

The 8 balanced line outputs provide flexibility for monitoring and routing. Channels 1 and 2, dedicated to monitoring, have a front-panel adjustable level to quickly adjust control room listening, and the powerful headphone output features an independent level control.

Compatibility and Integration

With Mac OS and Windows drivers, as well as USB Audio Compliant 2.0 mode, the US-16x08 also integrates into a mobile setup with compatible tablets. The MIDI input/output simplifies connecting a master keyboard, expander, or control surface without an additional interface.

Technical Specifications

Conversion and Interface

  • USB 2.0 digital audio interface
  • Resolution: 24 bit / 96 kHz
  • 16x audio inputs and 8x audio outputs
  • USB 2 port, compatible with iOS, PC, and Mac

Inputs

  • 8x balanced microphone inputs
  • 2x 6.3 mm TR jack connectors on the front panel, switchable between instrument and line level
  • 6x line-level inputs on the rear (+4 dBu / -10 dBV switchable by pair)
  • 48 V phantom power (channels 1 to 4 and 5 to 8)

Outputs and Monitoring

  • 8x line outputs with front-panel level control for channels 1 & 2 dedicated to monitoring
  • Powerful headphone output with independent level control

Processing and Features

  • Compressor and 4-band EQ per channel via internal DSP
  • Can be used standalone as a mic preamp

MIDI

  • MIDI input and output

Accessories and Format

  • Included: Rack mounting kit and power supply
  • Dimensions: 445 x 59 x 219 mm
  • Weight: 2.8 kg
Brand reference number: US-16X08

Testimony

5,0 /5
5★
4★
3★
2★
1★
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullfull
Use
fullfullfullfullfull
The seller had told me more than 4 weeks ...... miracle, delivery in less than 2 weeks. Otherwise, quality-price ratio it seems difficult to do better 16 inputs .... 8 outputs at this price it's a gift. Apart from that, the latency on Logic Pro X is super low, no installation problem under Yosemite. I particularly appreciate the 2 inputs for Guitar/Bass on the front.
Certified
Posted on 21/03/2015
By Olivier D.

Perfect, short delivery times, product well protected.
Certified
Posted on 28/11/2015
By Bruno C.

This product perfectly meets my needs.
Verified
Posted on 13/04/2021
By Jean-Michel PRIN
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullfull
Use
fullfullfullfullfull

very good product
Verified
Posted on 01/09/2020
By Gerard Verhaeghe
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullfull
Use
fullfullfullfullfull
