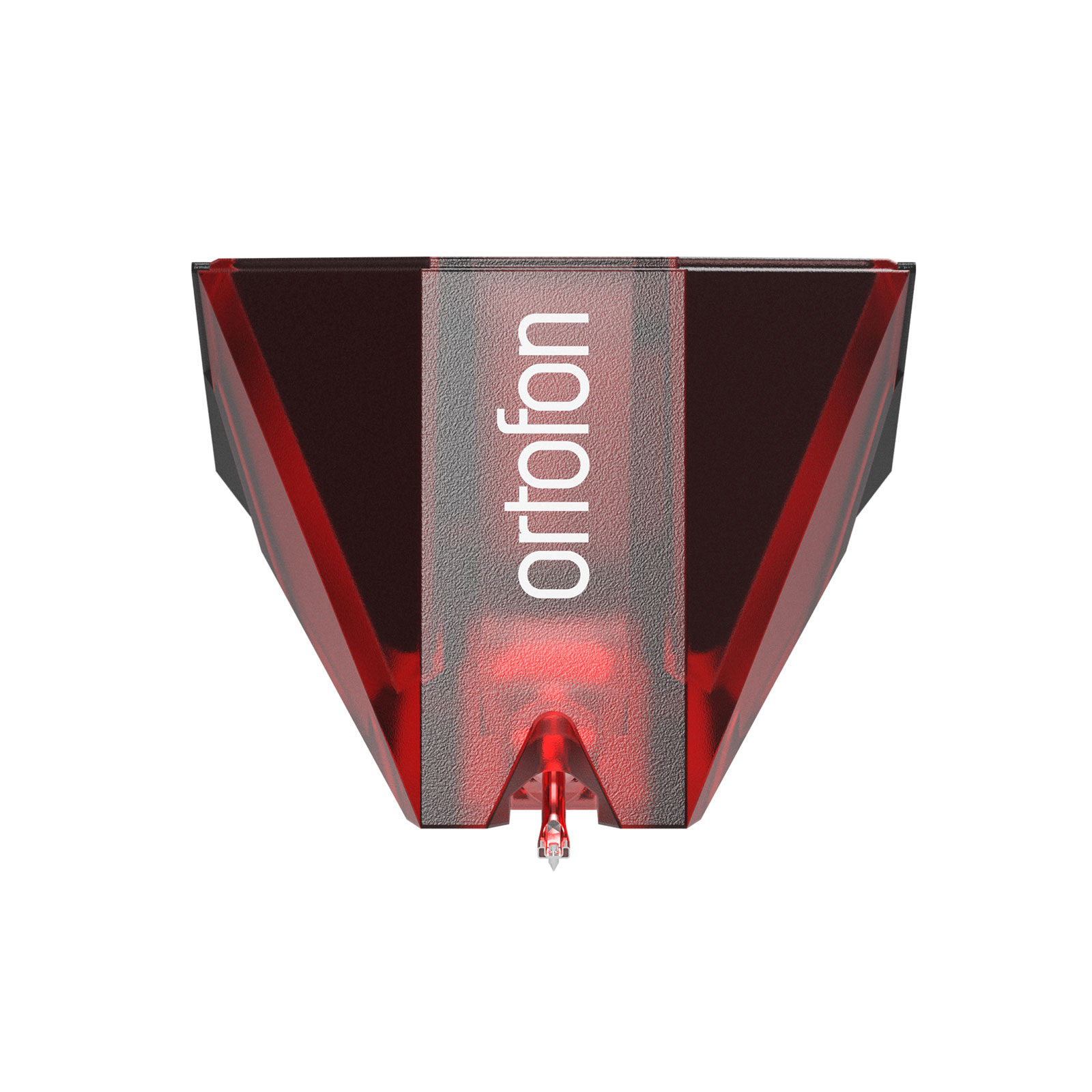

- Type: MM (Moving Magnet) - Diamond: Elliptical - Output voltage at 1000 Hz, 5 cm/sec: 5.5 mV - Channel balance at 1 kHz: 1.5 dB - Channel separation at 1 kHz: 22 dB - Channel separation at 15 kHz: 15 dB - Frequency response: 20-20,000 Hz (+3 / -1 dB) - Tracking ability (315 Hz with recommended tracking force): 70 ?m - Dynamic lateral compliance: 20 ?m/mN - Stylus tip radius: r/R 8/18 ?m - Tracking force range: 1.6 to 2.0 g (16 to 20 mN) - Recommended tracking force: 1.8 g (18 mN) - Tracking angle: 20° - Internal impedance: 1.3 ohms - Internal inductance: 700 mH - Recommended load resistance: 47 kOhm - Recommended load capacitance: 150-300 pF - Cartridge and stylus color: Black/Red - Weight of 2MR cartridge: 6 g - Weight of Verso 2M and 2M cartridges: 7.2 g - Weight of pre-mounted 2M cartridge: 16.7 g - Replacement diamond: 2M Red (interchangeable with 2M Blue and 2M Silver)
Brand reference number:
9030_2MR_RED
