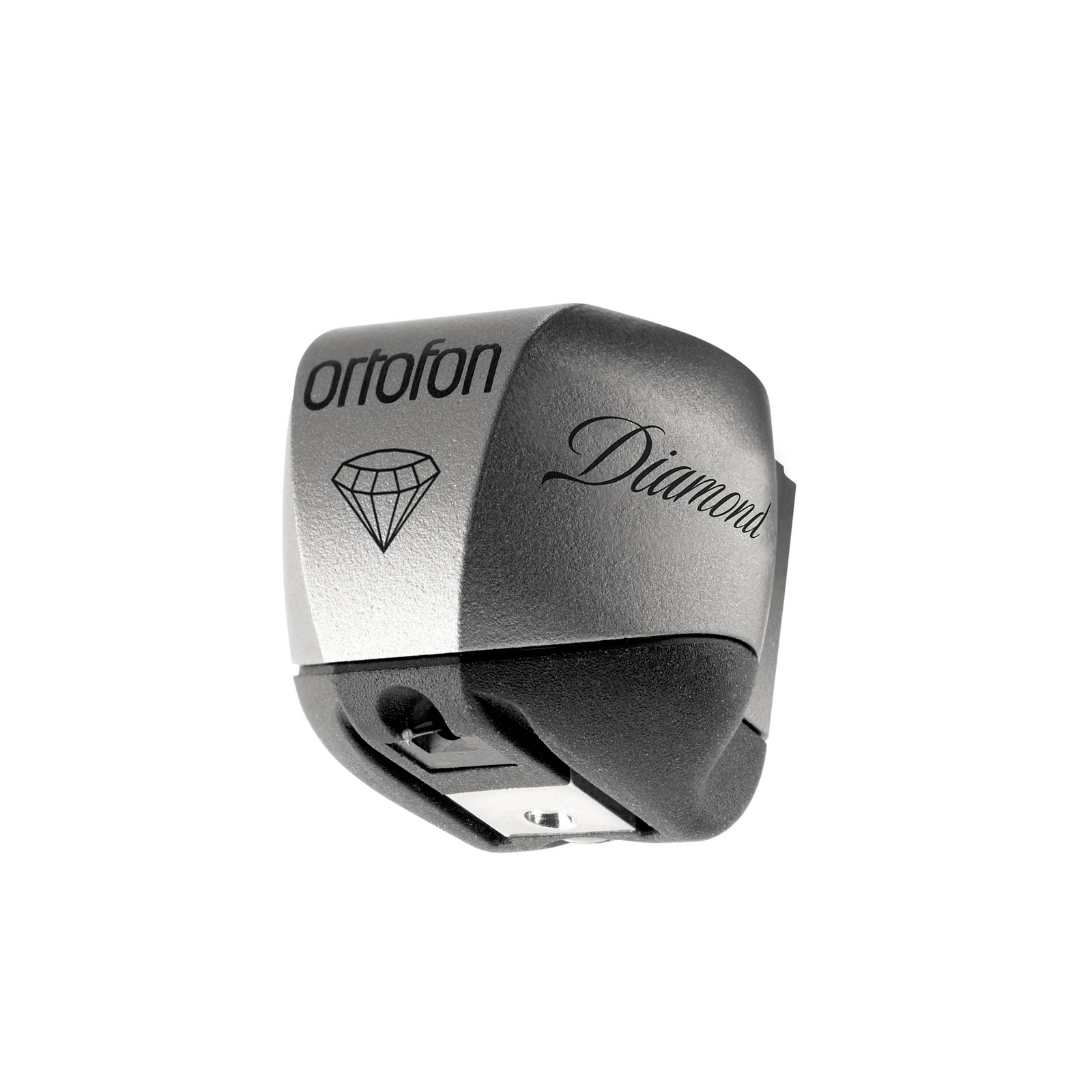

- Type: Low-level MC (Moving Coil) - Diamond: Naked Tip / Micro Line Specially Polished "Replicant 100" - Cantilever: Diamond - Output voltage at 1 kHz, 5 cm/sec. - 0.2 mV - Channel balance at 1 kHz - 0.5 dB - Channel separation at 1 kHz - 25 dB - Channel separation at 15 kHz - 20 dB - Frequency response: 20 Hz-20 kHz +/- 2 dB - Tracking capacity (315 Hz with recommended tracking force) - 80 µm - Dynamic lateral compliance: 11 µm/mN - Stylus tip radius - r/R 5/100 µm - Tracking force range: 2.5-2.8 g (25-28 mN) - Recommended force: 2.6 g (26 mN) - Tracking angle: 23° - Internal impedance: 6 Ohm - Recommended load impedance: > 10 Ohm - Coil wire material: Ultra-pure oxygen-free copper - Cartridge body material: SLM Titanium - Cartridge color: Silver/Black - Cartridge weight: 17.5 g
Brand reference number:
9030_MC_DIAMOND
