Soundcraft UI24R

Description

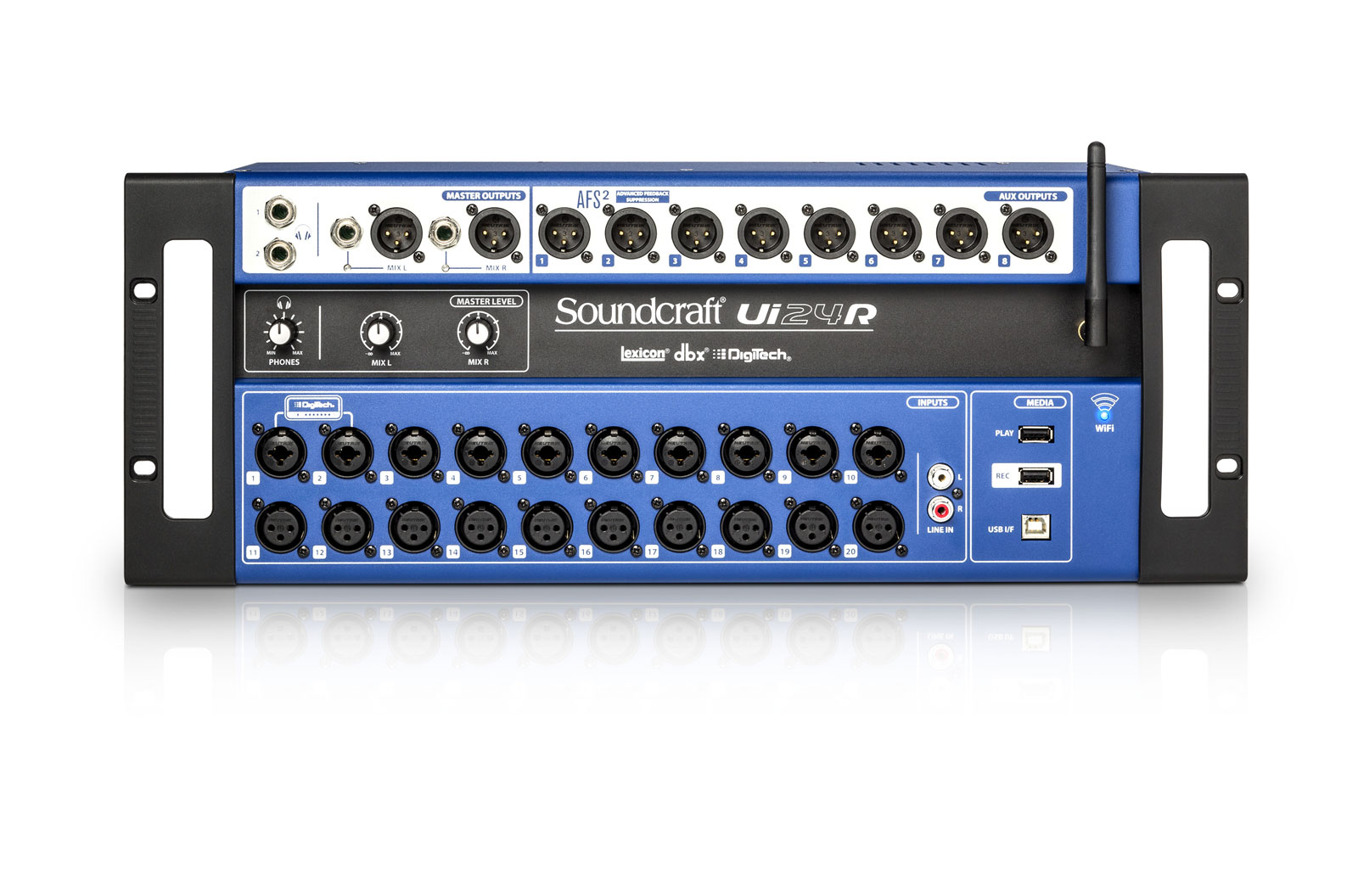

The Soundcraft Ui24R is a complete, rack-mountable, digital mixing and multi-track recording system that delivers flexible I/O, pristine sound quality, intuitive wireless control, and roadworthy reliability—all in a streamlined design.

The system can double as a stagebox and can be controlled by up to 10 devices via Ethernet or built-in dual-band Wi-Fi, making it possible to control mixing and multi-track recording wirelessly from anywhere in the venue.

Renowned Lexicon, dbx and DigiTech signal processing ensures pristine sound, while 20 Studer-designed microphone preamps deliver more professional inputs than any other mixer in its class.

The compact, rack-mounted Ui 24R is also compatible with the new HARMAN Connected PA system, and offers unprecedented control, versatility and power at an incredible value. From the stage to the studio, Soundcraft Ui 24 R is the ultimate system for artists, venues and engineers who need to save space and deliver superior sound.

Features
- Renowned Soundcraft quality and performance
- Built-in dual-band Wi-Fi eliminates the need for a router to provides a reliable connection to up to 10 mobile devices in mission critical situations
- Control Ui24R from iOS, Android, Windows, Mac OS and Linux browsers without installing additional apps
- Record and mix with the warmth of 20 professional-quality Studer-designed preamps
- dbx compression and iconic Lexicon reverb and delay processing
- 2 channels of DigiTech guitar amp modeling
- Dual-path, redundant multi-track recording of all 24 inputs to USB drive and connected Mac/PC
- 24 simultaneous inputs (10 combo ¼” TRS/XLR, 10 XLR, 2 line level, 2 digital)
- 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels
- 31-band graphic EQ, noise gate, compressor, and dbx® AFS2 Automatic Feedback Suppression on all outputs
- Real-time frequency analyzer (RTA) on inputs and outputs
- Compatible with Mac/PC DAWs and other music software
- Compatible with Harman Connected PA application and system for easier setup and control
- 4U rackmount design

Specifications
- (20) Mic Preamps: Studer designed, 10 combi, 10 XLR
- (2x) Line Inputs: -10 unbalanced
- (2x) Master Outputs: +4 XLR, with individual volume pots
- (2x) Headphone Outputs: With shared volume pot
- (8x) AUX Outputs: +4 XLR with 32 band graphic and dbx AFS² Feedback Suppression
- USB PLAY: USB A port
- USB RED: USB A port
- USB I/F: USB B port
- USB 1: USB A, for controllers (such as a computer mouse)
- USB 2: USB A, for software update installation
- Footswitch: ¼" for closure pedal event trigger
- Ethernet : RJ45, for LAN connections

In the box
- Ui24R
- Power cord
Brand reference number: 5076586

Testimony

4,6 /5
5★
4★
3★
2★
1★
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullfull
Use
fullfullfullfullhalf
Superb product of good quality, good preamps, good effects... I believe Soundcraft (after Behringer) is opening the way to a new way of working live! So much so that it almost becomes outdated to still use a mixing console nowadays... No more cables and no more bulky console. Possibility to do multi-screen, or multi-tablet since the thin client can open on several browsers of the same computer. Obviously, also practical on an iPhone so that musicians can adjust their own monitor mixes (configurable visualization for each user). It is the only console in its range that offers multitrack recording in "Direct to Disk" (USB) and remote compatibility via PC / Tablet PC / MAC / iPad. It is intuitive, stable, and of impeccable quality. The effects (EQ, Gate, Compressor, Reverb...) are available on all channels. Apart from live performances, it is perfect as a simple USB 2 audio interface... With its 22 inputs and 10 outputs, it makes you think about the audio interfaces offered for the same price that do not offer as many I/Os... Admittedly, it does not go beyond 48 kHz, but the quantization is still 24 bit, which is more than enough for high-quality recordings and mixes. It might be missing an Spdif, ADAT, AES or DANTE connection, but at this price, I think it already reaches peaks in terms of competitiveness (besides, the competition does not offer it either). Buy with your eyes closed, you will not be disappointed.... (Show more)
Certified
Posted on 29/01/2018
By Benoît Q.
Excellent device, the mixer/sound card combo greatly simplifies recording. The effects are of good quality, the device seems robust. The recording function on USB key is very practical and easy to use. The controls via a smartphone are adequate, but something I hadn't thought of is that when using the phone, you no longer have internet access because you connect via WiFi to the mixer.
Verified
Posted on 11/04/2022
By florent jousse
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullfull
Use
fullfullfullfullfull
great equipment, top sound quality, compact size, impressive routing features and the possibility to use it as a sound card for DAW.
Certified
Posted on 03/12/2021
By Richard P.
Very good product I have been using it live for more than 2 years ... no issues
Certified
Posted on 26/10/2022
By Nicolas R.
Quality material? soft easy. so cool to handle
Verified
Posted on 11/07/2023
By henri castanier
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullempty
Use
fullfullfullfullfull
Super good, in 3 days I knew how to master the beast on the tablet for our first concert. I just give one star less for saving the mix settings, equalization, etc., for which I still haven't found the method. Otherwise, it's super good. Thank you
Verified
Posted on 25/10/2023
By Philippe
Quality
fullfullfullfullfull
Quality / price
fullfullfullfullfull
Use
fullfullfullfullempty
Excellent digital tablet, but what a hassle to connect to the wifi hotspot, I'm looking for an expert to create my password, it doesn't work with the two I've registered??
Certified
Posted on 02/11/2018
By Jean Claude F.
Not really made for live.
Verified
Posted on 02/09/2020
By beuvard jasmin
Quality
fullfullfullemptyempty
Quality / price
fullfullfullfullempty
Use
fullfullfullemptyempty
