Cameo SB8.3 - SPLITTER - 8 CHANNEL DMX BOOSTER (3 POINT XLR)

Description

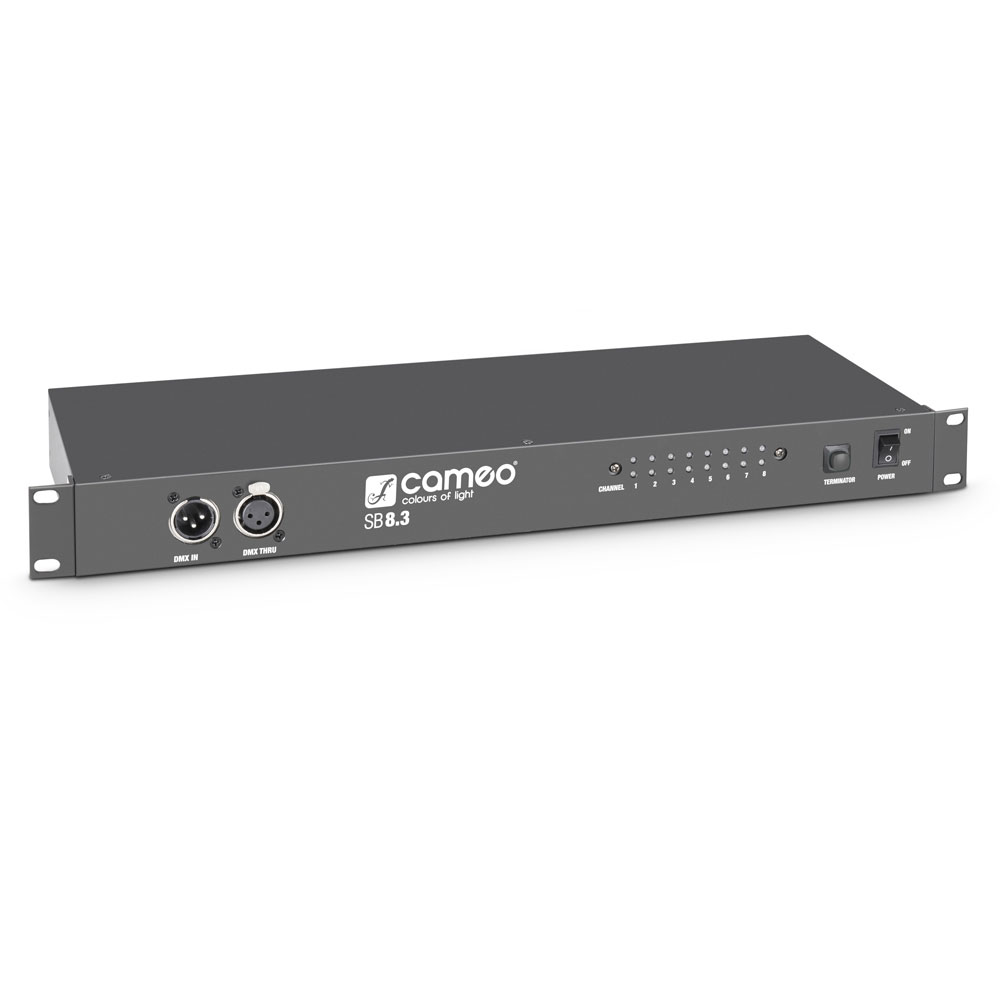

The Cameo CLSB83 is the professional solution for configuring DMX networks. The splitter and booster in 19" format amplifies the DMX input signal and distributes it to 8 electrically isolated outputs. It is connected directly to the DMX controller or to DMX devices. The input and the THRU socket for looping of the signal are duplicated on the front and back of the CLSB83 and connected in parallel. Bright LEDs show the DMX and power status of the channels on the front panel, the outputs are located on the back. A switchable 120 Ohm terminating resistor on the DMX THRU output and the power switch complete the equipment; the IEC-cable is supplied. For convenient output connector access and reverse installation the rack-mount angles can be attached to the rear of the chassis.




Type: DMX 512 protocol
DMX Inputs: 2 (parallel)
DMX Input Connectors: 3-pin XLR male
DMX Thru Outputs: 2 (parallel)
DMX Thru Output Connectors: 3-pin XLR female
DMX Outputs: 8 (electrically isolated)
DMX Output Connectors: 3-pin XLR female
Controls: Power On/Off, DMX Thru Terminator
Indicators: 8 x Power LED, 8 x Signal LED
Power Socket: IEC power socket
Power Supply: transformer
Operating Voltage: 230 V AC, 50 Hz
Power Consumption (max.): 15 W
Dimensions (W x H x D): 483 x 44 x 160 mm
Accessories included in package: power cord
Brand reference number: CLSB83
