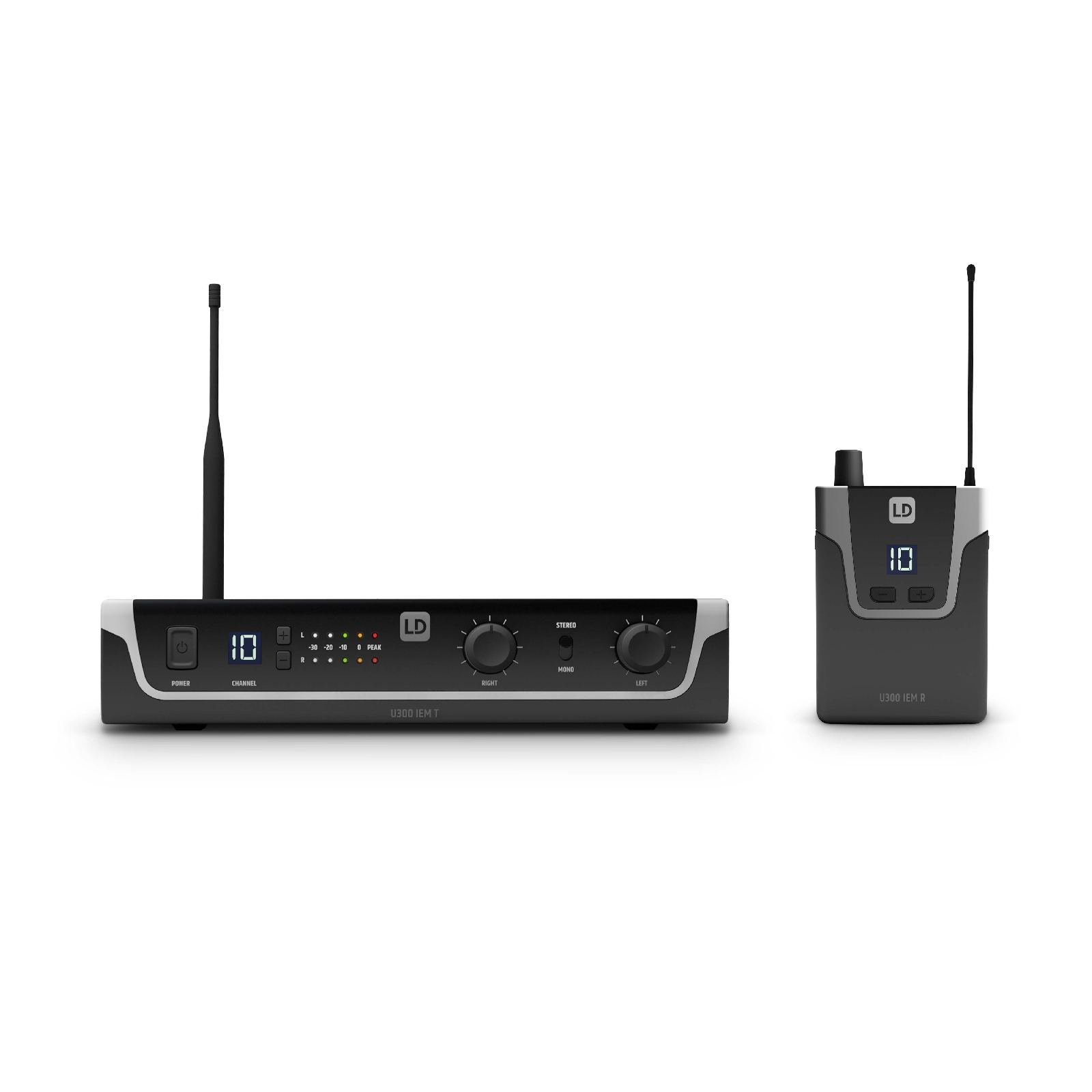

We have developed the U300® wireless in-ear control systems for unlimited freedom of movement on stage with perfect in-ear sound at all times. Developed in Germany, their clear, modern design and simple operation make them the perfect choice - not just for beginners. Their reliable range up to 100 m and their low frequency band from 50 Hz to 16 kHz guarantee professional performance. U300® in-ear sets are available to operate in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz + 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Six systems can be used simultaneously in each case.
U300® in-ear transmitters offer a choice of 12 transmission channels and an RF transmission power of 10 mW. They can also operate in mono or stereo mode. The combo jacks serve as balanced XLR and unbalanced 6.35 mm jack inputs. The left and right input levels can be controlled separately, while two LED chains indicate the strength of the audio signal.
The U300® pocket receiver has a mini-jack for connecting headphones as well as screens for channel, stereo mode and low battery status. Operating on two AA batteries, it has an operating time of 10 hours. A practical controller allows individual adjustment of the monitoring volume during performance. 19 "rack mounting kit included.
Specificities
- Reliable radio transmission up to 100 m range
- Low frequency response
- 12 channels to choose from
- Choice of Stereo or Mono mode
- Up to 6 systems that can be used simultaneously
- 10 hr portable receiver autonomy with two AA batteries
- Possibility to set an unlimited number of portable receivers on the same transmission frequency
- Display on the portable receiver of the channel and RF reception
- Transmitter in solid metal housing with stereo level display
- Removable antenna with BNC connector
- 19 "rack mounting kit included in delivery
- Product type: Accessories for in-ear monitoring
- Type: Transmitters
- Channels: 12
- Mode of use: FM, mono / stereo, Mono / Stereo
- Transmission type: FM, mono / stereo
- Rated HF output power: 10 mW
- Distortion rate (THD): <0.5%
- Frequency response: 50 - 16,000 Hz
- Signal / noise ratio: 90 dB
- Dynamic: 88 dB
- Antenna connector: BNC
- Entrances: 2
- Settings: Input level, Power On / Off, Mono / Stereo selector
- Input connectors: 6.35mm jack, XLR
- Input impedance (kohms): 8.5 kohms
- Indicators: LCD screen
- Input sensitivity: -4.5 dbu
- Mains voltage: 12 - 18 V DC
- Dimensions (W x H x D): 212 x 43 x 123 mm
- Power consumption: 1.7 W
- Weight: 0.66 kg
- Accessories included: BNC antenna, Power supply unit, Rack mounting kit 19
LDU305IEMR - LD Systems U305 IEM R Receiver
- Type: Receivers
- Distortion rate (THD): 0.25%
- Audio output: 3.5 mm stereo mini-jack
- Minimum impedance: 16 Ohm (s)
- Maximum audio output level: 100 (@ 16 Ohm load capacity) mW, 73 (@ 33 Ohm load capacity) mW
- Antenna connector: Attached to the housing
- Settings: Channel down, Channel up, On / Off switch, Volume potentiometer
- Indicators: RF (LED)
- Mains voltage: 2 x 1.5 Volt LR06 (AA) batteries
- Autonomy: <10 Std.
- Dimensions (W x H x D): 64 x 103 x 24 mm
- Weight: 0.085 kg
- Features: Battery status LED, supplied with batteries
