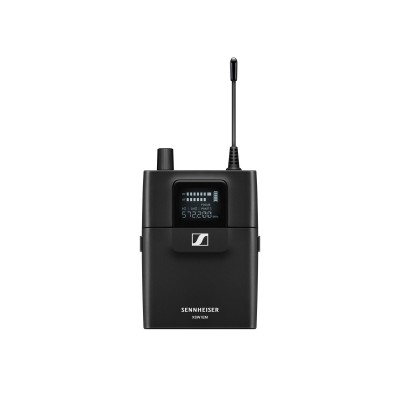

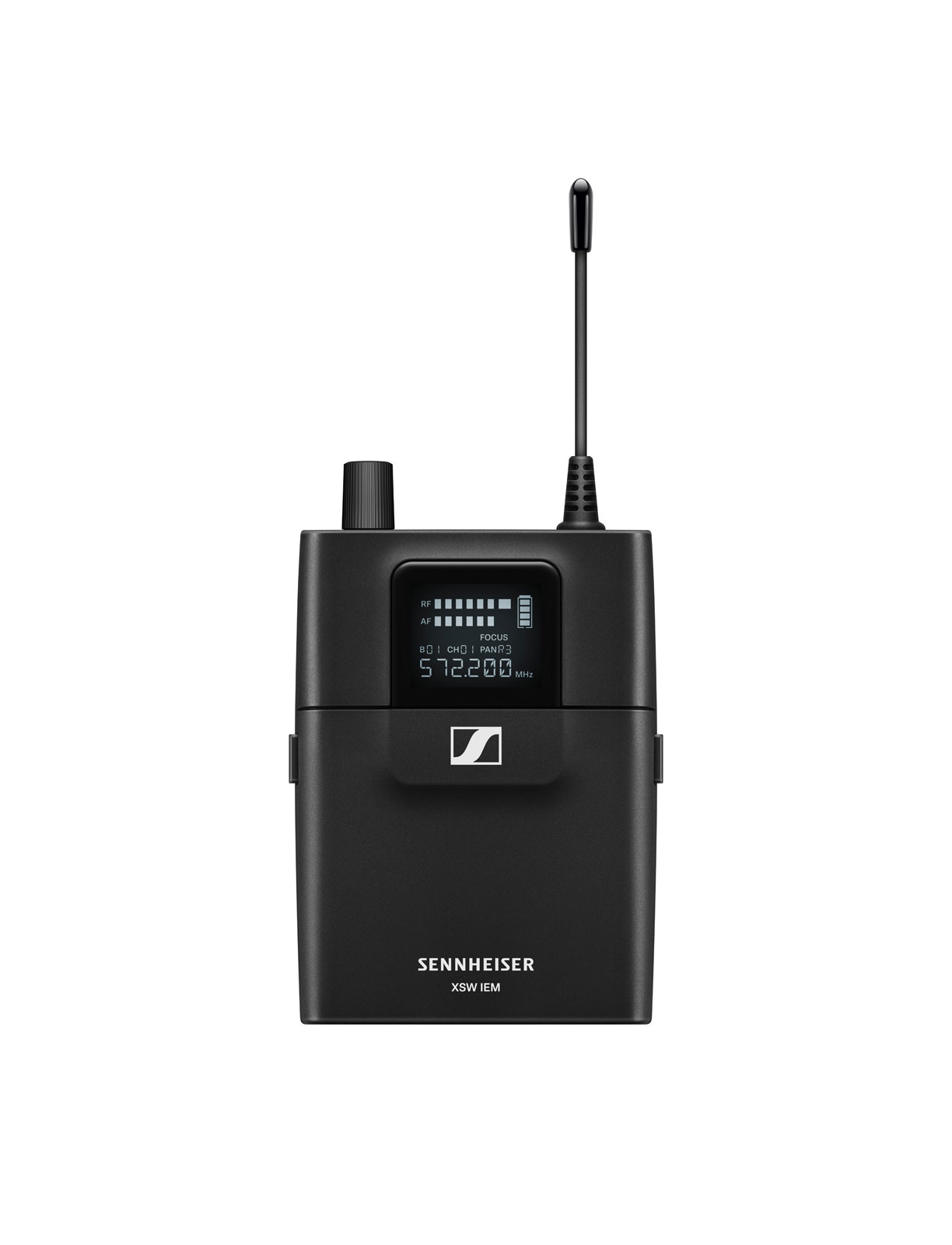

stereo receiver for in ear monitor sennheiser xsw iem sr (a: 476 - 500 mhz)
a professional iem receiver goes unnoticed most of the time, but becomes a powerful tool in a few clicks. it's the bodypack xs wireless iem bodypack dna. you can easily extend your xs wireless iem configuration by connecting additional receivers to your transmitter.
his little state led is all you can see during repetitions or concerts. it points to both the condition of the battery and the wireless connection. the lc screen will only illuminate when you access the secure control panel. in a few clicks, you can balance your intra-ear mix, move from one focus mode to another, use an equalizer for high high frequencies, activate the limiter, choose a new option from the predefined channels or set your frequency manually.
the standard 3.5 mm output is open for the pair of ie 4 intra-ear monitors provided - or you can improve your sound with a model of ie pro intra-ear monitors.
advanced functions such as the limiter help you protect your ears by limiting strong and sudden signals. with the eq option, you can get more air and brightness by reinforcing your sound at 13 khz.
bodypack works with two aa primary batteries or rechargeable batteries. depending on the volume level, you can count on an autonomy of about six hours.
add a receiver ... or a dozen
you can easily extend your xs wireless iem intra-ear monitoring system by connecting additional receivers to your existing transmitter. everyone can be connected to your main mix - and everyone can balance this mix according to its needs.
a click that means the world
you will quickly forget the material, but you will never forget the sound. once lit, the xs wireless iem receiver connects you to a new level of personal monitoring. you will not notice the lightness of technology, but will be surprised by the possibilities it offers. bodypack is also your control center for more advanced options. you can change your modes and mix, increase the brightness with the eq option, or protect your ears from sudden peaks with the limiter.
strengths
light and discreet, for limitless performance
3.5 mm standard jack for a wide variety
ideal for upgrades with the ie pro intra-ear monitors range
control panel - direct access to individual options
led: quick control of battery life and link status
integrated limiter protecting against sudden audio peaks
eq optional to reinforce the brightness
panoramic control for personal balancing
works for 6 hours with primary or rechargeable batteries
features
uhf pocket receiver to extend existing iem xs wireless configurations
light pocket receiver with back clamp and stage control panel
3.5 mm standard jack for ie 4 intra-ear monitors supplied or intra-ear sets optional
backlit front panel and status led for battery status and link
- access by menu to the sound parameters of the receiver, such as the focus modes, the control of the volume, the limiter and the equalizer
panoramic control for the individual scale of the input channels
works with 2 aa primary batteries or rechargeable batteries
technical data
modulation: fm broadband
frequency ranges:
- a 476-500 mhz
- b 572-596 mhz
- c 662-686 mhz
- e 823,2-831.8 mhz
- k 925,2-937.3 mhz
frequency band switching: up to 24 mhz
normal deviation / peak: ± 15 khz / ± 24 khz
skech: 10 ?v, fixed
signal / noise ratio (1 mv, peak deviation): ? 88 db
total harmonic distortion (dht): ? 1%
3.5 mm output level: 2 x 1.25 veff to 16 ?
aigus amplification (equalization): +10 db to 13 khz
limiter: -10 db
af frequency response: 45 hz to 15 khz
crosstalk (50 hz - 10 khz): approx. 45 db
temperature range: from 0 ° c to +40 ° c
power: 2 aa batteries, 1.5 v
nominal voltage: 3v battery / rechargeable battery of 2.4 v
autonomy: approx. 6 hours
dimensions: approx. 95 x 70 x 26 mm
weight (with batteries): approx. 110 g
included in the box:
xsw iem ek stereo receiver
intra-ear headphones ie 4
2 aa batteries
Brand reference number:
509157
