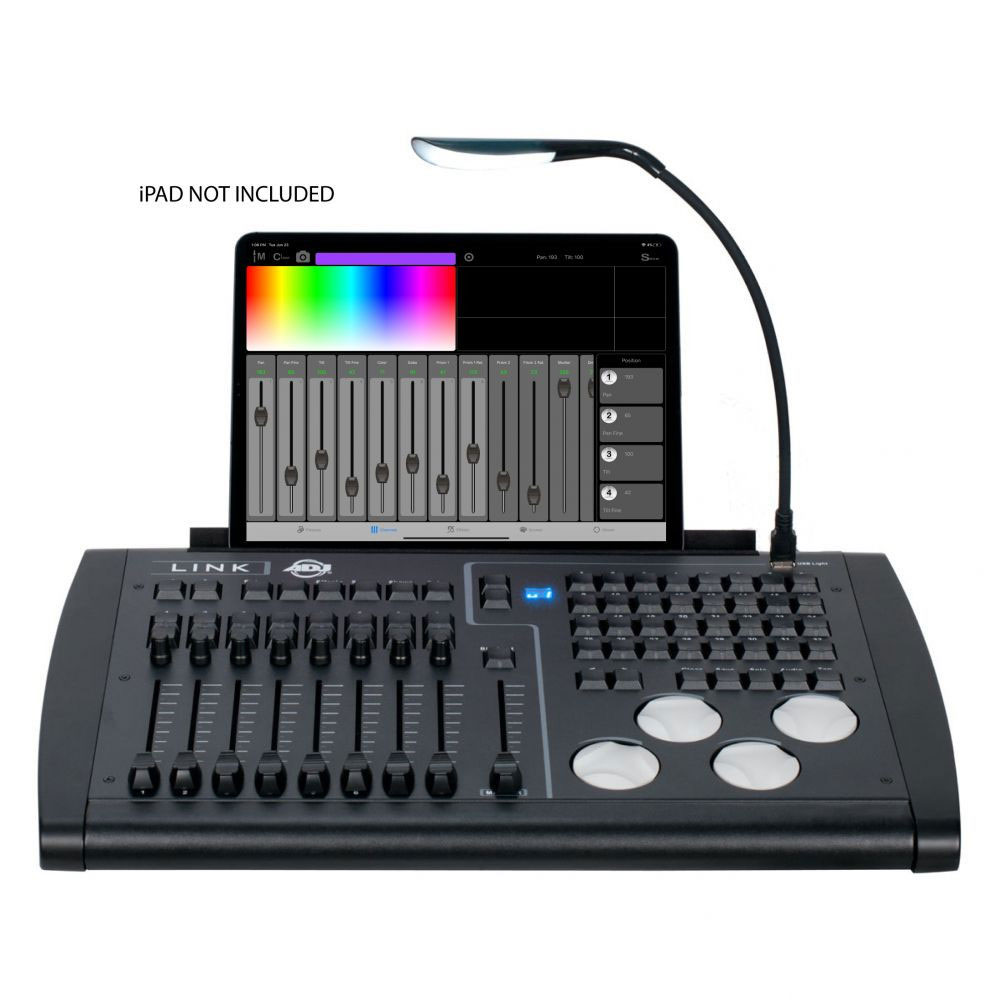

ADJ - ADJ LINK - DMX ControllerADJ LINK is a 4-universe controller designed to control DMX devices from the dedicated iOS Airstream LINK app for iPad.
ADJ LINK creates a private, standalone 2.4 or 5 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network that coexists in RF-heavy environments with other wireless technologies for the connection between the iPad and the ADJ Link controller. Wired connection possible via the Apple Camera USB adapter.
ADJ LINK is ideal for small production events, nightclubs, bars, or any event or venue that requires the flexibility of wireless control from the iPad, and seeks a robust lighting control solution based on 4 DMX universes and APP.
The ADJ LINK controller is compatible with the dedicated Airstream LINK iOS APP for iPad, which can be downloaded here: https://apps.apple.com/us/app/airstream-dmx-link/id1487843782Compatible.
Compatible with iPad only. Requires iOS 14.5 or higher. *iPad not included.
Features:
Control
- 6 general-purpose buttons
- 1 master fader and 8 control faders of 100 mm
- 16 page playback buttons above the faders
- 8 rotary dials with push selection above the faders
- 1 Blackout button
- 32 instant effect or scene call buttons
- 8 instant or Bump-type effect buttons
- 4 rotary encoders with Push-In selection
Connections
- 4 DMX outputs with 5-pin connectors
- 2.4 and 5 GHz DSSS WiFi network for connection with iPad
- USB 2.0 Type "B" port for wired connection with iPad (with optional Apple Camera/USB adapter)
- USB Type "A" port for gooseneck work lamp (included)
- Removable outer casing for 6U rack mounting.
- Kensington security device slot?
Dimensions/Weight
- Length: 514 mm
- Width: 328 mm
- Height: 91 mm
- Weight: 6.8 kg
What’s Included
- USB cable
- USB lamp
- DC9V switching power supply
- Rack mounting kit
