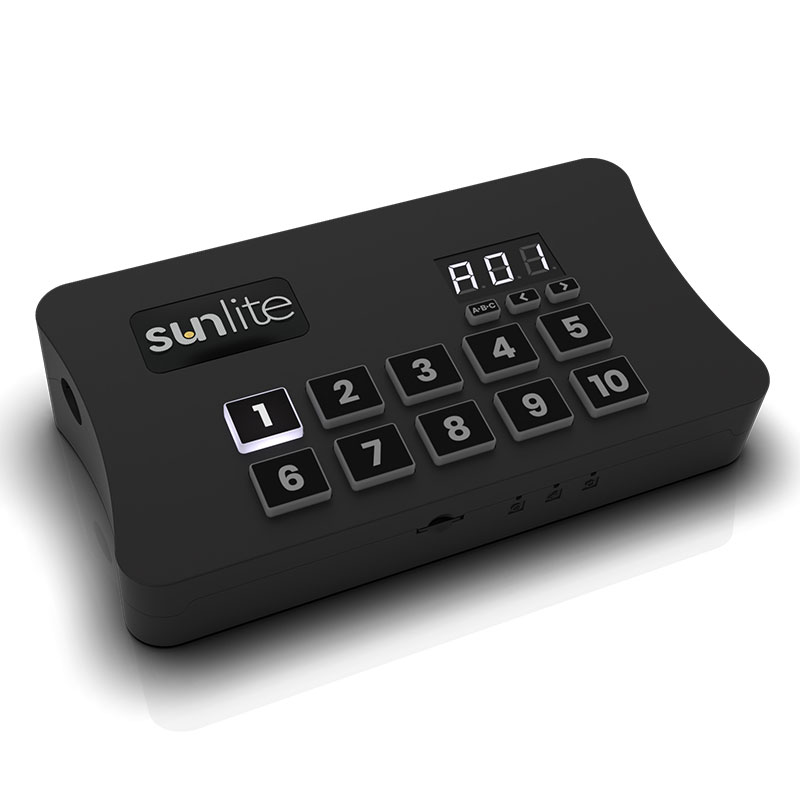

SUNLITE-EC
With its 1024 DMX channels (expandable to 2048), 4 XLR connectors, anthracite gray refined finish, and backlit keyboard, the new SUNLITE-EC interface combines power and ease of use with Sunlite Suite 3.
NEW SUNLITE ECONOMY CLASSThe new SUNLITE-EC is our latest generation of DMX interfaces for Sunlite Suite 3.
In addition to its elegant anthracite gray design, the SUNLITE-EC provides 4 DMX connectors and a backlit keyboard to control your lighting.
Featuring 1024 DMX channels and Sunlite Suite 3 EXPRESS mode out of the box, the interface can be upgraded to 2048 channels or the full software version on the DmxSoft shop.
EXPRESSIn EXPRESS mode, multimedia features (AUDIO and VIDEO), Midi Time Code synchronization, as well as time/calendar triggers are not available. However, EXPRESS mode is sufficient for most applications.
FULLTake advantage of the full power of the Sunlite Suite 3 software with FULL mode: time/calendar triggers, multimedia (AUDIO and VIDEO), Midi Time Code synchronization... all features are available. FULL mode may be necessary if you need to build a fully automated show.
The SUNLITE-EC comes with standalone microSD memory, allowing a show to be played autonomously without a computer. This feature is perfect for small shows where a computer is not needed, as a backup in case of computer failure, for rental, or for architectural installations.
Standalone scenes can be called via the backlit keyboard.
TECHNICAL SPECIFICATIONS
- Case: Plastic
- Ethernet: YES
- RDM: option*
- Connector: USB Type-C
LIVE USE- DMX Channels: 1024 (exp. to 2048)*
- ArtNet Channels: option*
- Sunlite Suite 2 (PC): express
- Sunlite Suite 3 (PC): express
- ESA2 (PC, Mac): YES
- Older Sunlite software (PC): YES
- MIDI Triggers: YES
- Easy Remote Application: YES
- Buttons: 13
STANDALONE MODE- DMX Channels 512: (exp. to 2048)*
- Memory: Micro SD Card
- Clock/Date/Time Triggers: option*
- Buttons: 13
- Dry Contacts: up to 16*
