- Dynamic microphone designed for drums and percussions, wind instruments, and guitar amps
- Patented AKG Varimotion diaphragm
- Custom built capsule mounting
- Spring steel wire-mesh cap
- Rugged all-metal body withstands typical tough handling on stage

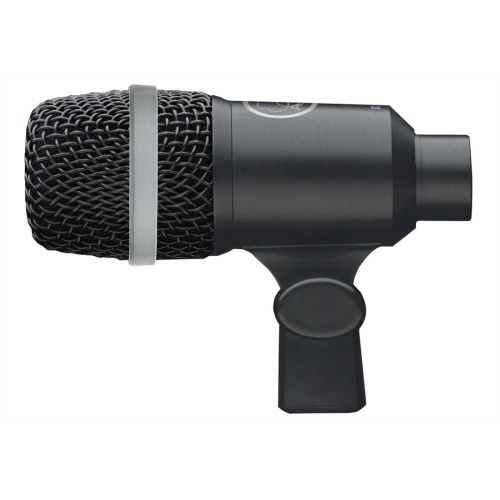

The D 40 with its solid all-metal body will stand up to the hardships of night-after-night onstage use "with a smile".
The Varimotion diaphragm deep-drawing process allows the diaphragm itself to be fine-tuned with no need for tuning resonators, leading to a quantum leap in audio performance.
The transducer is protected by a sturdy wire-mesh cap and takes extremely high sound pressure levels with ease.
An integrated stand adapter and standard H 440 mounting bracket for snare drums, tom-toms, etc. make the D 40 a highly versatile tool for use on drums, percussions, wind instruments, and guitar amps.
Polar pattern 75 to 20,000 Hz
Sensitivity 4 mV/Pa (-48 dBV)
Max. SPL 144/156 dB SPL (for 1%/3 % THD)
Equivalent noise level 18 dB-A
Impedance <=200 ohms
Recommended load impedance >=1000 ohms
Connector 3-pin XLR
Finish dark stage blue
Dimensions length 104 mm (4.1 in.) height (incl. stand adapter): 79 mm (3.1 in.) max. dia.: 44 mm (1.7 in.)
Net weight 245 g (8.6 oz.)
Shipping weight 380 g (13.4 oz.)
Brand reference number:D40
