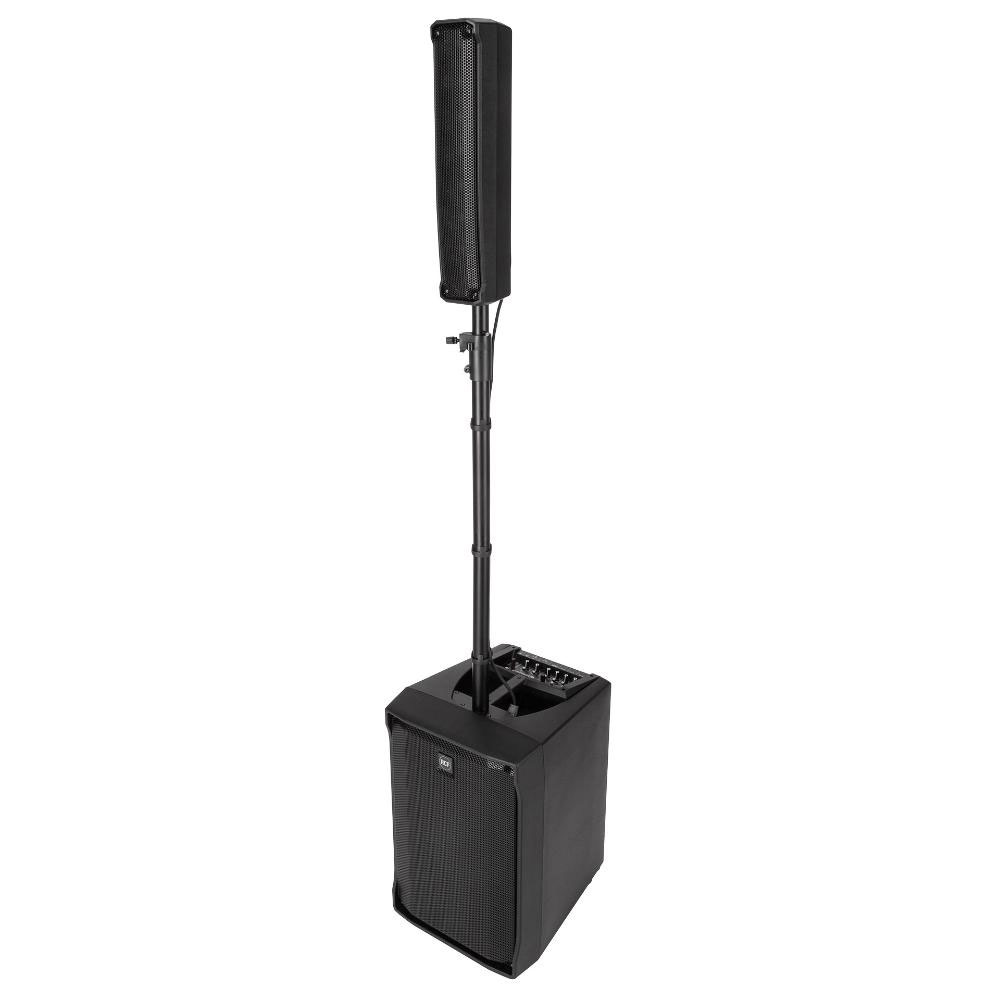

RCF EVOX JMIX8 220-240 V

1045
or
icon-cart Add
favorite_border
Online : immediate shipping
shipping icon
Shipping: from 10000 €
warranty icon
This item is warranted for 3 years
reference icon
Ref.: 384035

Description

EVOX JMIX 8 TWO-WAY ACTIVE ARRAY SOUND SYSTEM


RCF takes the EVOX J series a step forward by equipping their system with an 8-track digital mixer. The innovative onboard Z.CORE DSP offers much more than comprehensive mixing functions; It also includes high-end instruments for effects and amp simulations. An EVOX app compatible with iOS and Android operating systems allows you to control the JMIX8. With the addition of a Bluetooth audio gateway and a Hi-Z jack, the EVOX JMIX8 combines the quality and reliability of RCF amps and transducers, thanks to a powerful 8-track digital mixer, with control capability remotely.

EVOX APP
The EVOX RCF app guarantees global control of the J series mixers, all the processing you need, on your smartphone, via Bluetooth. Featuring attractive, intuitive graphics created by audio professionals, the RCF EVOX app lets you flip through pages and fully control mixer settings even while you play. RCF EVOX J The EVOX app is available for iOS and Android operating systems.

 Responsive Image

On-board digital mixer
All functions available on the mixer integrated EVOX JMIX8 system can be managed from the control panel. The selection buttons: INPUT, EXIT, HOME, SYSTEM, MFX, FX provide access to all settings pages on the LCD screen.

Upper transducers< br />HIGH FREQUENCIES - The ultra-compact RCF 50.8mm full-band drivers are capable of handling high SPL and power levels and deliver superb acoustic performance.
LOW FREQUENCIES - The RCF 304.8mm woofer High excursion extends to the lowest frequencies delivering a fast and precise punch. The bass-reflex port prevents air turbulence, reducing distortion. By design, EVOX ensures constant directivity coverage of 120° x 30° (HxV), providing a perfect coverage pattern. The vertical array is formed gradually to ensure consistent sound coverage from the first row to the last.

 Responsive Image

Ready to play in just a few simple steps
PORTABILITY In addition to the handle on the top of the woofer box , transportation is made easy thanks to the trolley, which is fully integrated into the optional speaker cover. During transport, the metal pole is securely attached to the trolley with the lid handles.
MOUNTING Screw the pole onto its bracket above the subwoofer. Insert the top of the column, connect the SpeakOn and it's done! An adjustable clip allows you to adapt the length of the mast.
PLAY! Carrying and mounting your audio system has never been faster!

Responsive Image

J System Configurations
From solo musicians to large DJ parties, the flexibility of EVOX J system is a must. Thanks to multiple outputs and FIRPHASE processing with 0° phase response, achieving the best hearing experience anywhere is an easy task. Discover some standard configurations to understand the installation of the system.

Responsive Image

New perspective on linearity
RCF speakers are designed using patented advanced crossover technology FiR, developed to offer the listener transparent sound, absolute precision and impeccable stereo images.
The special FiRPHASE filters make it possible to achieve a coherent sound distribution for all listeners without phase distortion, ensuring minimal latencies for the system.

Responsive Image

TECHNICAL SPECIFICATIONS


ACCOUSTIC SPECIFICATIONS
  • Frequency response: 40 Hz ÷ 20000 Hz
  • Max. SPL. @ 1m: 128 dB
  • Horizontal coverage angle: 120°
  • Vertical detection angle: 30°

HIGH- SPEAKERS
  • Full range: 8 x 2.0'', 1.0'' v.c
  • Woofer: 12'', 2.5'' v.c
  • < /ul>
    INPUTS / OUTPUTS SECTION
    • Input signal: bal/unbal
    • Input connectors: XLR, Jack
    • Output connectors: XLR
    • Input sensitivity: -2 dBu/+4 dBu

    PROCESSOR SECTION < /strong>
    • Overlap frequencies: 220 Hz
    • Protections: Thermal, RMS
    • Limiteur: Soft Limiter
    • Controls: Volume, Boost, Mic/Line

    POWER SECTION
    • Total power: 1400 W Peak, 700 W RMS
    • High frequencies: 400 W Peak, 200 W RMS
    • Low frequencies: 1000 W Peak, 500 W RMS
    • Cooling system: Convection
    • Connections: VDE

    PROCESSING
    • Processing channels: 8
    • Signal processing: 32 Bit Floating Point
    • A/D-D/A conversion: 24 Bit @ 48.0 kHz
    • Dynamic range: 108
    < /div>
    INPUTS
    • Microphone: 4
    • Remotely controlled stored gain: Yes
    • Gain range: 0 dB ÷ 45 dB
    • Input noise level (weighted dBu): -114 dBu A-Weighted
    • Microphone input impedance (KOhm): 3 kohm
    • Low cut: 20 Hz ÷ 1000 Hz
    • Phantom voltage + 48 V: Yes
    • Mono line:
    • Gain adjustment: 0 dB ÷ 45 dB
    • Line input impedance (KOhm): 11 kohm
    • HI-Z line entries: 1
    • HI-Z line input impedance (MOhm): 1 Mohm
    • A/D dynamic range (db): 108 dB
    • Stereo line: 2
    • Gain setting 0: dB ÷ 45 dB
    • Stereo line input impedance (KOhm): 11 kohm

    OUTPUTS
    • AUX-Send: 1
    • AUX output: 1
    • Main output impedance (Ohm): 150 ohmMain output level (dBu): 19 dBu
    • AUX output impedance (Ohm): 150 ohm
    • AUX output level (dBu): 19 dBu
    • Dynamic range (dB) D/A: 108 dB

    COMPRESSORS
    • RCF compressors: 4 mono (6 preset)
    EQUALIZATION
    < div class="row mb-3 px-5 px-md-0">
    • Equalizer of input channels: 1 Semi Parametric / 2 Shelving Description: 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency, Graphic 7 Band EQ on Main Mix and AUX send.

    DEPART AUX
    • AUX: 1 PRE/POST
    • POST FX: 1

    INTERNAL EFFECTS
    • Effects Send: 1
    • MultiFX insert effects: 1

    MASTER PROCESSORS
    • Main processors: 1

    OTHER FEATURES
    • USB: 2
    • Pedal control: Yes< /li>
    • Power supply: Internal

    PHYSICAL SPECIFICATIONS
    • Cabinet/casing material: PP Composite< /li>
    • Handles: 1 Top
    • Grid: Steel
    • Color: Black, White

    SIZE
    • Height: 2200 mm / 86.61 inches
    • Width: 410 mm / 16.14 inches
    • Depth: 560 mm / 22.05 inches
    • < li>Weight: 36.4 kg / 80.25 lbs
    Brand reference number: 13000556
