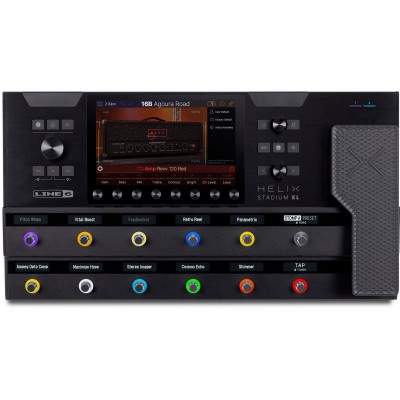

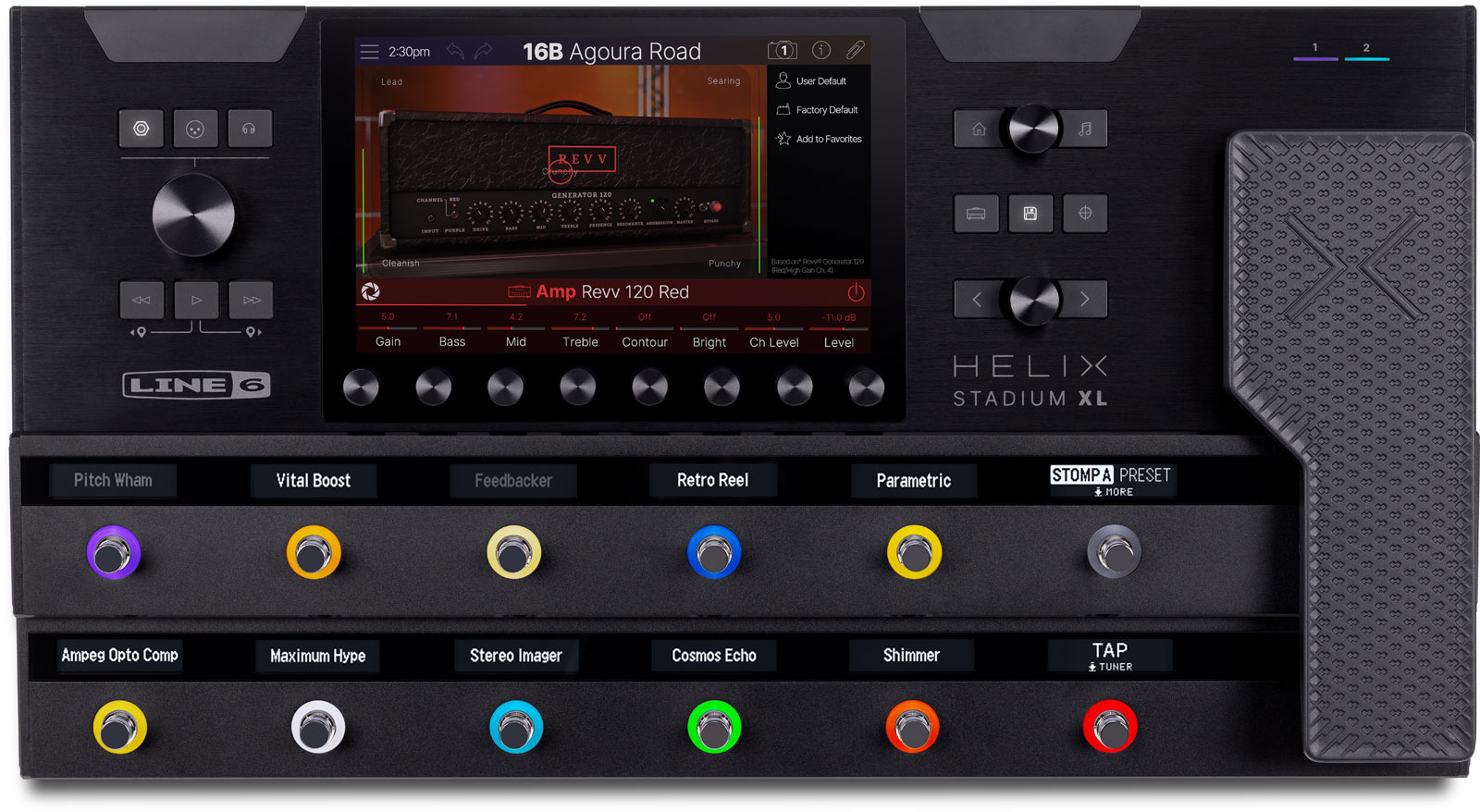

Line 6 Helix Stadium XL Floor
Essential information about the Line 6 Helix Stadium XL Floor effects processor
- Agoura™ modelling technology for unprecedented sound realism
- & High-resolution 8" touchscreen and 12 OLED displays for intuitive control
- Showcase™ automation engine for managing sounds, loops, lights and videos live
- Full compatibility with Helix/HX® presets and extended connectivity (Wi-Fi, Bluetooth, MIDI, Nexus™)
A new era for the Helix family
The flagship of the Helix Stadium range, the
Helix Stadium XL Floor marks a major step forward in the evolution of Line 6 effects and amp processors. Designed using the new Agoura™ methodology, it redefines the standards of sound realism and responsiveness, while offering a more fluid and musical interface than ever before. It is the heart of any professional stage or studio setup. A processor designed for demanding guitarists The Helix Stadium XL Floor is aimed at users who are already familiar with the Helix ecosystem, as well as musicians looking for a powerful and inspiring all-in-one processor. Helix ecosystem as well as musicians looking for a powerful and inspiring all-in-one processor. It appeals to guitarists and bassists who want to combine the flexibility of digital with the organic feel of tube amps, while benefiting from complete management of their live and studio setups. Its Showcase™ engine transforms every performance into an immersive experience, automating sound changes, MIDI control and even lighting and video synchronisation.
Cutting-edge technical innovations
Thanks to
Agoura™ technology, the Helix Stadium XL Floor reproduces the physical behaviour of amps, transformers and speakers with unrivalled precision. The
Hype control allows you to shift the tone between an ‘authentic’ sound and a more ‘idealised’ sound, depending on the style you are looking for. Its interface combines a large touchscreen, twelve OLED strips and an ultra-precise expression pedal for direct and natural control. The Proxy function allows you to capture your own amps and effects in the cloud, while Wi-Fi and Bluetooth connectivity make it easy to manage them using the free Helix Stadium Edit software editor.
Technical specifications
Interface and controls
- 8" high-resolution colour touchscreen
- 12 high-visibility OLED displays
- 11 rotary knobs, 13 buttons, 12 footswitches
- Integrated expression pedal with footswitch
- Focus View function for contextual control preset preview audio playback
Technology and modelling
- Agoura™ modelling engine>
- Control for morphing between realistic and idealised sounds Proxy function for cloning amps, cabinets and effects Full compatibility with Helix® and HX® presets
Connectivity
- Inputs: 2 instruments, 1 microphone, 4 send/return
- Outputs: XLR, 1/4" jack, headphones, S/PDIF
- Ports: MIDI DIN and USB, USB A, proprietary Nexus™ proprietary
- Built-in Wi-Fi and Bluetooth
- Support for external pedals and footswitches (EX2™ optional)
Automation and Extensions
- Showcase™ automation engine for presets, MIDI, loops and video Support for optional Expand D10 module (VDI, L6 LINK™, 8-channel optical output)
- Compatible with the Helix Stadium Backpack carrying bag>
Miscellaneous
- Integrated 8-channel audio interface
- Internal Matrix Cue mixer
- Helix Stadium Edit editing software included Edit software included
- Ready for future Line 6 hardware updates and extensions
