Simplified Cable Management

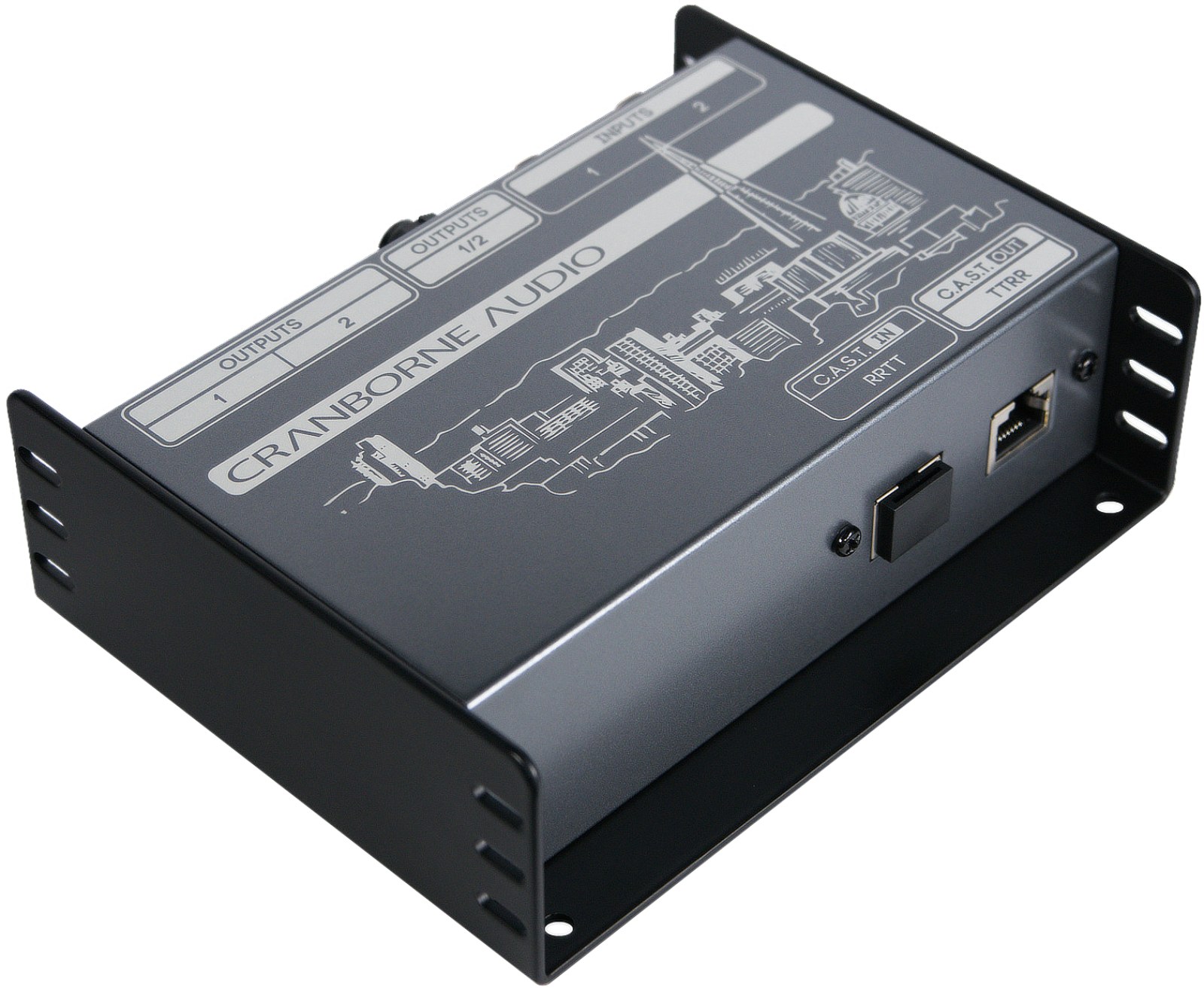

The Cranborne Audio N22 is a solution developed by Cranborne Audio for flexible, high-fidelity and cost-effective audio distribution. In simple terms, the N22 replaces 4 balanced XLR cables with a shielded Cat 5e, Cat 6, Cat 7 cable to carry 4 channels of analogue audio over distances of up to 100 metres. Connect 2 N22s together using a single shielded Cat 5e, Cat 6, Cat 7 cable and you can run 4 channels of balanced analogue audio (including 48V phantom power) between 2 remote locations. Use the N22 in the studio to connect the sound booth to the inputs/outputs of your audio interface, in a live setting to connect your mixing console to your power amps, or even at home to connect your surround speakers to your home cinema system.
Less Cable Clutter
Using shielded Cat 5e, Cat 6, Cat 7 cable instead of 4 XLRs not only allows you to reduce cable clutter in your studio, but also allows you to distribute audio throughout studios or stages using affordable network cabling, while still achieving the best sonic results thanks to the shielding and low crosstalk of Cat 5e, 6 and Cat 7 cables. In addition, the N22 is completely passive and requires no external power supply in order to transport audio at the highest level of quality over the longest distances. Each C.A.S.T. connection features a unique optimization to ensure that maximum signal integrity is transmitted over shielded Cat 5 cables over distances of up to 100 m, with no attenuation and low crosstalk.
Features:
- 2 x balanced combi jack inputs
- 2 x balanced 6.35mm jack outputs
- 2 x balanced XLR outputs
- Fully passive operation
- Fully supports 48V phantom power
- C.A.S.T IN RRTT port, to connect to C.A.S.T. Out of N22 or other C.A.S.T devices
- C.A.S.T TTRR OUT port, to connect to C.A.S.T. IN of 500R8, 500ADAT or other C.A.S.T devices
- Cat5 connectivity with N22H or second N22
- Compatible with any Cat 5e/Cat 6/Cat 7 shielded cable with distances up to 100m Improved crosstalk performance with high performance Cat 6 and Cat 7 (recommended)
- Robust metal housing
- Mounting holes for permanent installation
- Cable tie holes for cable management
- Non-slip rubber feet
- Dimensions: 150 x 110 x 50 mm
- Weight: 0.74kg
