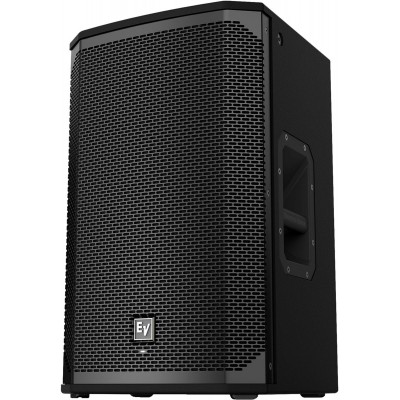

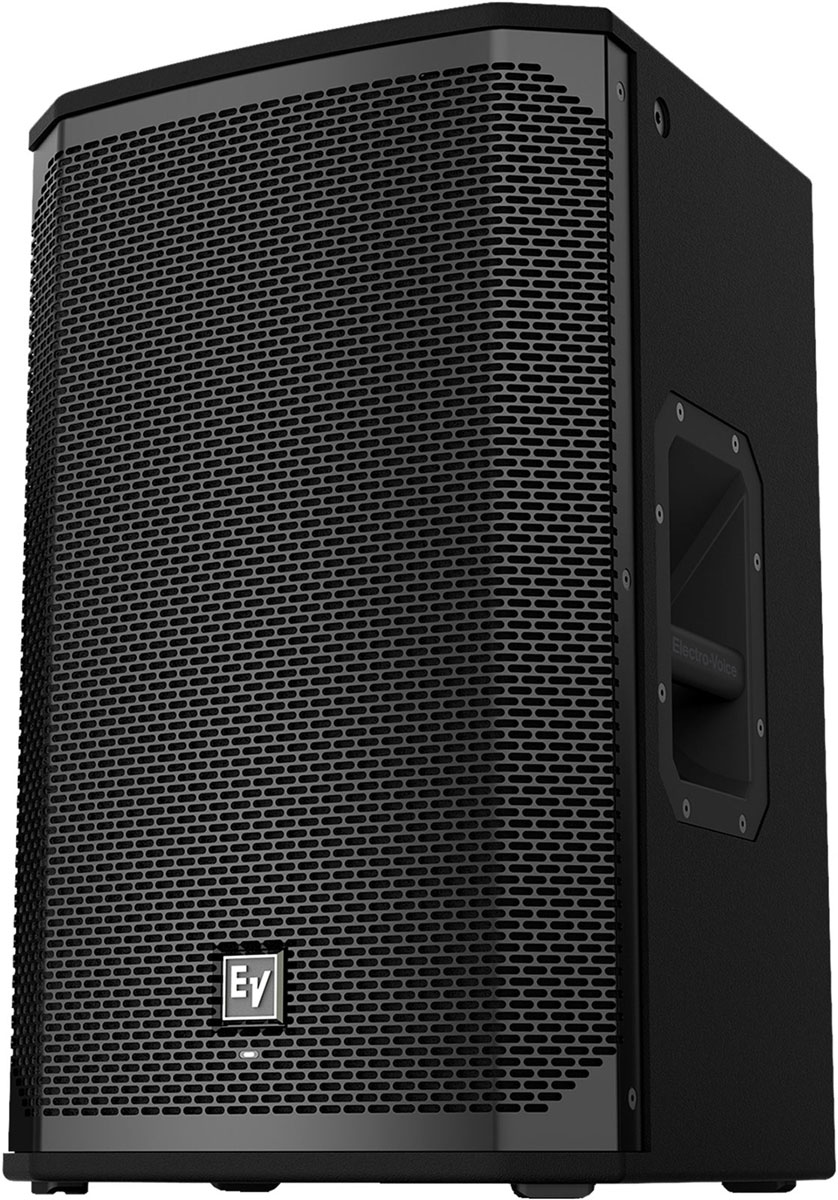

- Electro-Voice EKX-12
- Passive speaker
- Power: 350W continuous / 1400W peak
- Impedance: 8? (7.5? minimum)
- Max SPL: 131dB
- Frequency response (-3 dB): 82Hz // 18kHz
- Frequency response (-10 dB): 55Hz // 20kHz
- Speaker: 12" (305mm) EVS-12M
- Tweeter: 1" (25.4mm) DH-1L Titanium
- Patented waveguide: SST (Signal Synchronized Transducers)
- Crossover: 1.6kHz
- Recommended high-pass frequency: 55Hz
- Dispersion (H x V): 90° x 60°
- Axial sensitivity: 95dB
- Connectors: 2 Speakon (NL4)
- Housing: 15 mm plywood, with internal reinforcement
- Finish: EVCoat
- Color: Black
- Grille: 18 AWG steel with powder coating
- 1 handle
- 35mm base
- Attachment points: 8 x M10
- Dimensions: 607 x 375 x 356mm
- Weight: 17.4kg
Brand reference number:
ELEEKX12
