only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage. High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating. Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response. The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance. SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance. Non-resonant, all-steel handles are used. Attractive 18-gauge perforated, steel grille protects components from damage.
SPECIFICATIONS :
Power Rating 500 W / 2000 W Frequency Range (-10 dB) 42 Hz - 18 kHz Frequency Response (±3 dB) 62 Hz - 13 kHz Sensitivity (@1m) 100 dB SPL (1w/1m) Nominal Impedance 4 ohms Recommended Amplifier Power 500 W to 1000 W into 4 ohms Maximum SPL 133 dB Nominal Dispersion 90º x 50º Crossover Frequency 2.2 kHz Dimensions (H x W x D) 1092 mm x 464 mm x 426 mm (43 in x 18.3 in x 16.8 in) Weight 42.6 kg (94 lb) High Frequency Driver JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide Low Frequency Driver JBL M115-8A x 2 Input Connectors Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel

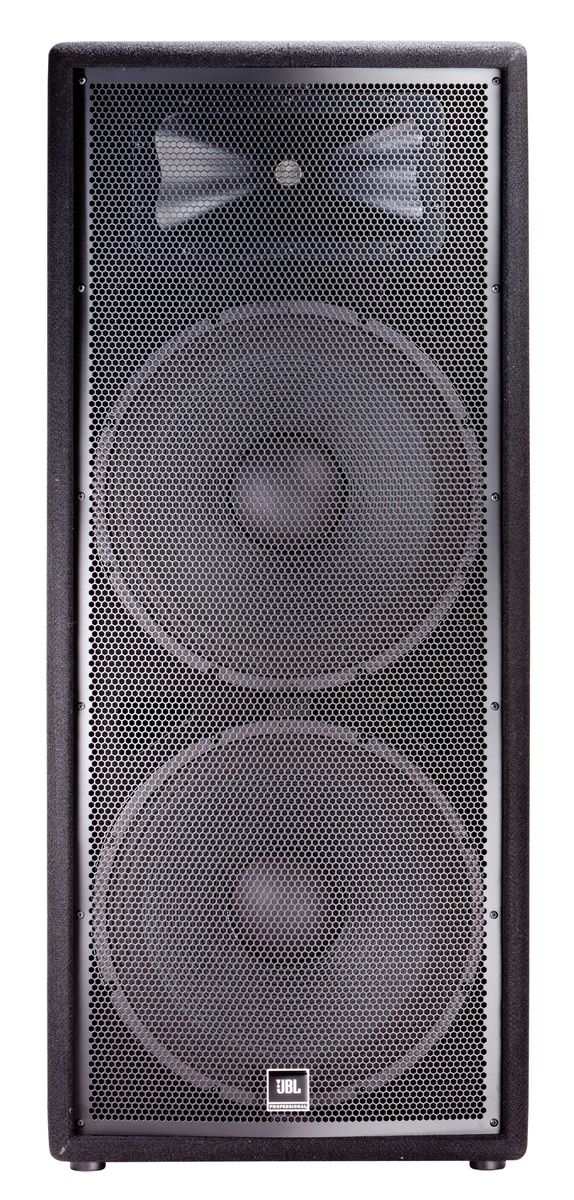

Brand reference number:JRX225
