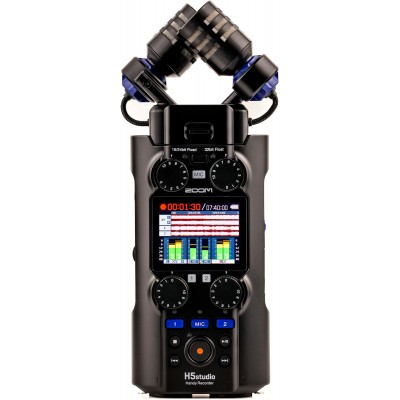

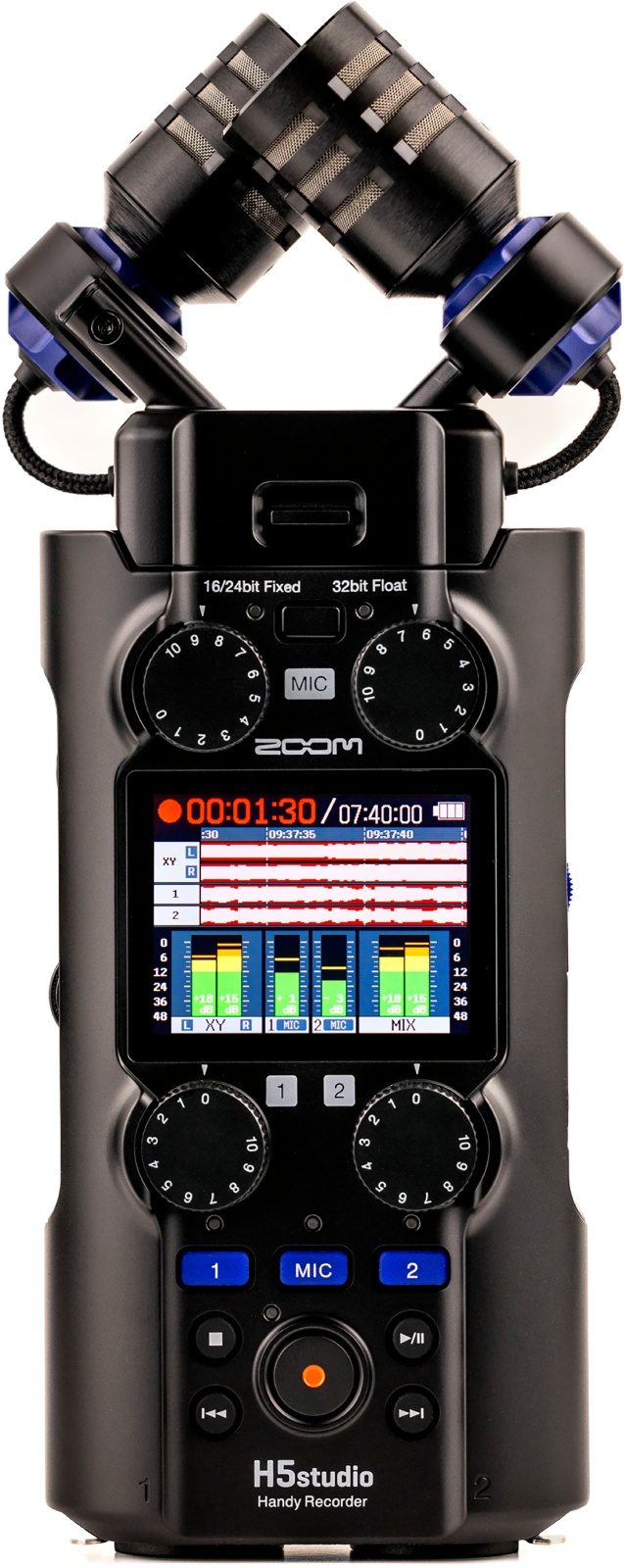

Essential Information About the H5studio Portable Audio Recorder
- 32-bit floating-point sound capture without gain adjustment thanks to dual A/D conversion and F series preamps (EIN at -127 dBu).
- Field versatility: large diaphragm XY capsule (19.4 mm) up to 140 dB SPL, 3.0 capsule system, RF shielding against interference.
- USB audio interface with 4 inputs/2 outputs with simultaneous recording to SD card, compatible with Mac/Windows/iOS/Android.
- Advanced visual control: color LCD screen with waveforms, predictive limiters, test tone, and recording start.
Heir to the "F" Preamps and 3.0 Capsule System
Designed as a continuation of the brand's portable recorders, the H5studio integrates the F series preamps for a quiet and precise gain reserve. The "3.0 capsule" platform offers expanded compatibility and increased longevity, while opening the door to configurations suited for shoots, interviews, and demanding musical recordings.
For Podcasters, Videographers, and Mobile Sound Recordists
Whether capturing an interview, ambiance, or voice/instrument take, the H5studio combines mobility, reliability, and quality. It merges a 4-track recorder plus stereo mixing, lockable combo inputs with phantom power, and dedicated outputs for headphone monitoring and camera feed, ensuring a smooth production workflow on location.
Key Features for a Modern Workflow
The 32-bit floating-point mode eliminates the gain setting step: you focus on capturing sound while the dual A/D conversion captures without clipping, then you adjust the level during post-production. For direct deliverables, the 16/24-bit modes feature dedicated gain knobs and predictive limiters.
The 2-inch color LCD displays levels and waveforms in real time, and powerful RF shielding repels interference from smartphones and Wi-Fi routers. The connector for an optional Bluetooth adapter allows wireless synchronization and control via an iOS app, while the voice guide enhances accessibility.
The large diaphragm XY capsule (19.4 mm) handles up to 140 dB SPL for crisp transients and a wide stereo image. The H5studio records up to 192 kHz on microSD card, while functioning as a USB interface with 4 inputs/2 outputs-ideal for streaming, videoconferencing, or mobile overdubbing.
Technical Specifications
Recording and Conversion
- 4-track recorder + stereo mix.
- Recording formats: WAV 32-bit floating point + 16/24 bits @ 44.1/48/96/192 kHz.
- Dual A/D conversion for 32-bit floating-point mode.
- Recording to microSDHC/microSDXC cards up to 2 TB.
- Advanced predictive limiters, mono mode, high-pass filters, normalization and 16/24-bit export, variable speed playback (0.5 to 1.5x), loop playback, test tone, and recording start.
- 2" color LCD with waveform display and French interface.
Preamps and Performance
- F series microphone preamps with equivalent input noise of -127 dBu.
- RF shielding against interference from smartphones and Wi-Fi routers.
Inputs
- 2x Mic/Line inputs on lockable XLR/6.35 mm combo jacks with +48 V phantom power.
- Line level +4 dBu supported.
- 4x dedicated gain knobs for 16/24-bit modes.
Outputs and Monitoring
- Line output and headphone output on 2x 3.5 mm stereo mini-jacks.
- 250 mW monitoring speaker.
- Test tone generator and recording start tone.
USB Interface and Connectivity
- High Speed USB Type-C 2.0 port compatible with Mac, Windows, iOS, and Android.
- USB functions: card reader, audio interface with 2x or 4x inputs/2x outputs at 24 or 32 bits @ 44.1 or 48 kHz with simultaneous recording to SD card (interface mode only @ 96 kHz).
- Port for optional Bluetooth adapter BTA-1 or TCA-1 offering remote control via iOS smartphone and wireless synchronization (timecode supported via adapter).
Capsules and Microphones
- 3.0 capsule system compatible with SSH-6e and EXH-6e (sold separately).
- Includes XYH-5e capsule.
- XYH-5s capsule with two large diaphragm microphones (19.4 mm) handling up to 140 dB SPL.
Power Supply
- Operates on 4x LR6 (AA) batteries not included, approximately 15 hours of stereo / 48 kHz operation.
- Powered via USB bus or optional AD-17 power adapter.
Dimensions and Weight
- Dimensions: 86 x 206 x 55 mm.
- Weight: 410 g.
