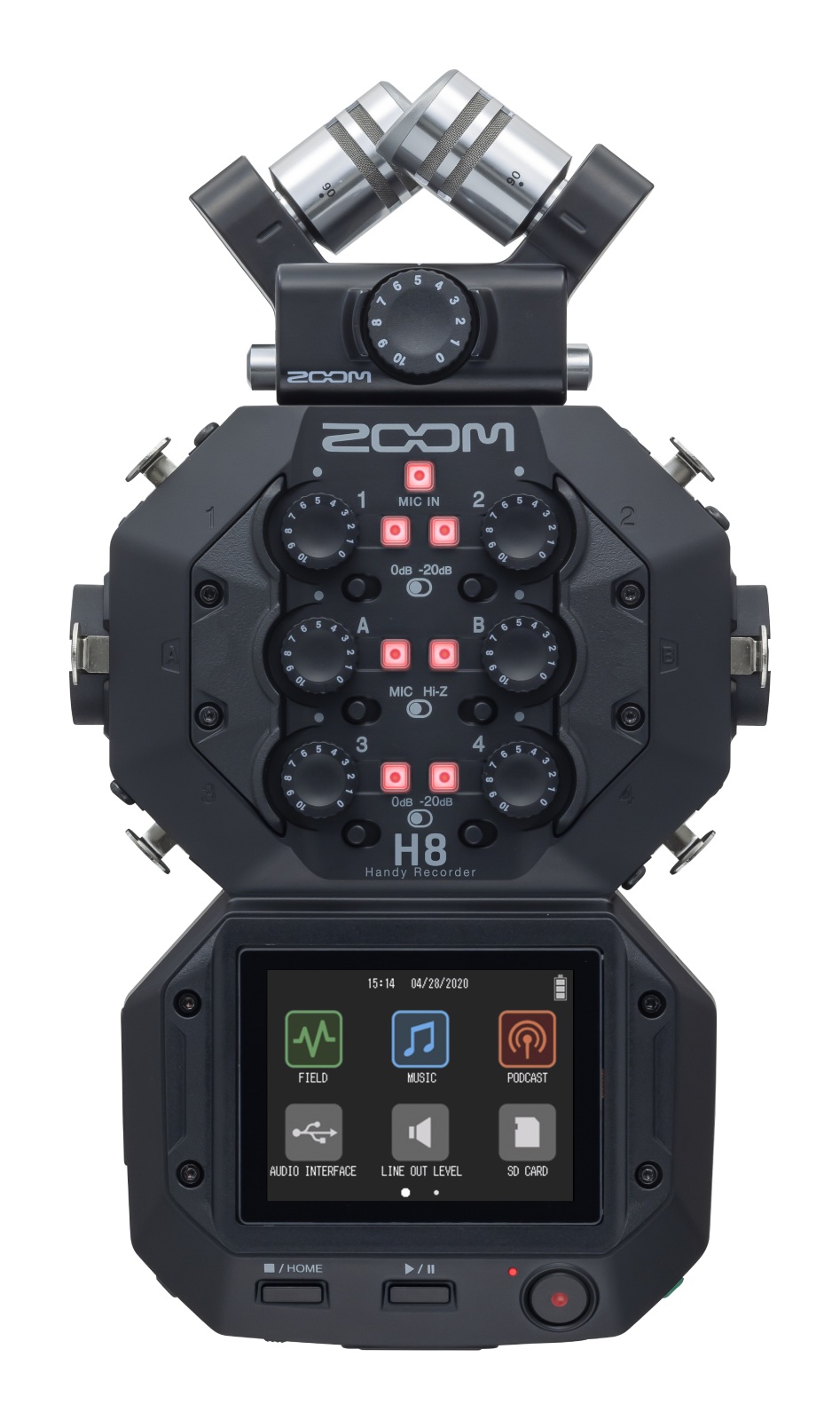

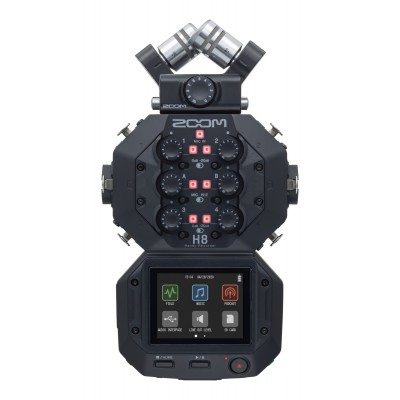

Essential Information About the Portable Recorder "Zoom H8"
- Up to 12 tracks simultaneous recording at 24-bit / 96 kHz, with included XYH-6 stereo capsule.
- Three dedicated workflow apps: Field (12 tracks + Master track and backup), Music (10 tracks with 3-band EQ, panning, overdub, multi-effects), Podcast (6 inputs recorded into a stereo file, voice effects, 4 pads).
- Six mic/instrument inputs: 4 XLR with -20 dB pad + 2 combo XLR/jack with Mic/Hi-Z switch and analog gain.
- USB audio interface 12 inputs / 2 outputs for PC/Mac/iPad, 2-inch color touchscreen, and Bluetooth remote control (BTA-1 optional).
The H8 in the Zoom Ecosystem: Versatility Taken Further
Descended from the famous H series with interchangeable capsules, the "Zoom H8" greatly expands its scope compared to previous generations. Its 2-inch color touchscreen and interfaces tailored to each use streamline sound capture, from field recording to podcasting, while maintaining compatibility with Zoom capsules and the robust ergonomics that made the series successful.
Who Is It For and What For?
The H8 is aimed at audio creators who want a single tool for field recording, multitrack music recording, and podcast production. Sound engineers, musicians, podcasters, and sound designers find a mobile solution capable of capturing multiple sources at high resolution, quickly mixing on site, and serving as a USB interface for the studio.
Key Features to Quickly Go from Idea to Mix
In Field mode, the H8 allows up to 12 tracks at 24/96, with Master and backup tracks to secure your takes. The Music mode offers 10 tracks with 3-band EQ, panning, overdub, and an editable multi-effect via Guitar Lab for guitar, bass, or vocals. The Podcast mode records 6 inputs into a stereo file, applies voice effects, and triggers 4 assignable sound pads for instant sound design.
Regarding connectivity, four XLR preamps with analog gain and -20 dB pad handle dynamic or condenser mics, while two combo XLR/jack inputs switch from Mic to Hi-Z for instruments. The included XYH-6 capsule captures detailed stereo and features a 3.5 mm line input. Via USB, the H8 becomes a 12 input / 2 output interface for PC/Mac/iPad. A 400 mW control speaker facilitates quick monitoring, and the optional Bluetooth adapter BTA-1 enables remote control.
Technical Specifications
Recording and Formats
- Up to 12 tracks recorded simultaneously
- Resolution up to 24-bit / 96 kHz
- WAV (BWF compatible) and MP3 formats
- Master track and backup track (Field mode)
Inputs, Capsules, and Connectivity
- Detachable Zoom XYH-6 capsule included (wide stereo) with analog gain
- Line input on 3.5 mm mini-jack (on XYH-6)
- 4 XLR mic inputs with -20 dB pad and analog gain
- 2 combo XLR/jack inputs with analog gain and Mic/Hi-Z switch
Processing and Mixing
- 3-band EQ and panning (Music mode)
- Overdub (Music mode)
- Multi-effects for guitar, bass, vocals (editable via Guitar Lab)
- Built-in effects: high-pass filter, compression, limiter
- 4 assignable sound pads (Podcast mode)
Modes and User Interface
- Dedicated apps: Field, Music, Podcast
- 2-inch color touchscreen, interface in French
- Recording of 6 Podcast mode inputs into a stereo file
USB and Control
- USB audio interface mode 12 inputs / 2 outputs (PC/Mac/iPad)
- Remote control via optional Bluetooth adapter BTA-1
Power, Storage, and Monitoring
- Operates on 4 AA batteries, AD-17 power adapter (optional), or USB bus
- Recording on SD/SDHC/SDXC cards up to 512 GB
- Built-in 400 mW control speaker
Dimensions, Weight, and Contents
- Dimensions: 224 x 116 x 49 mm
- Weight: 484 g
- Includes XYH-6 capsule, quick start guide, and 4 AA batteries
