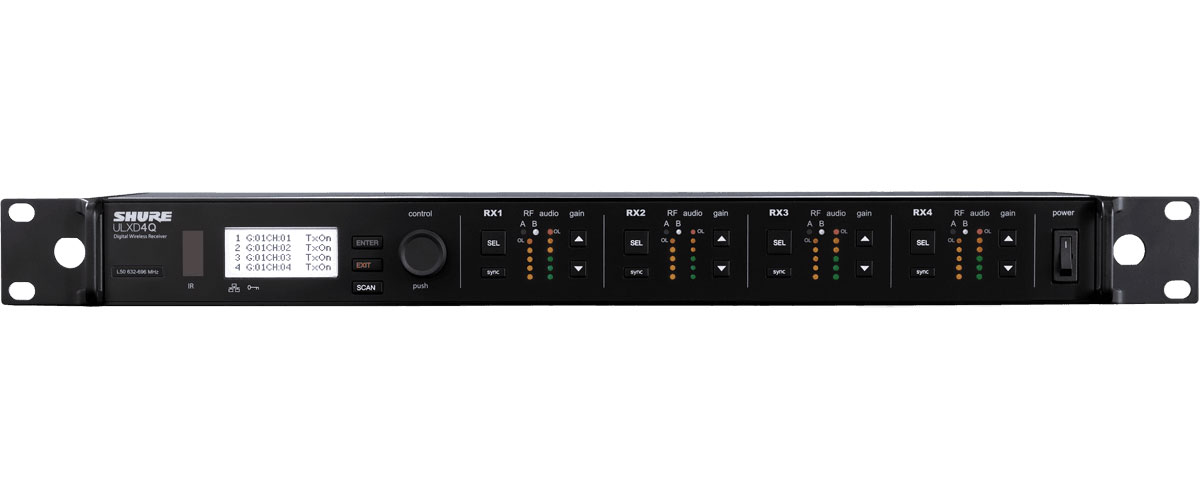

Four-channel digital receiver in metal case in 1U / 19 "format, with internal power supply. It has a backlit LCD display common to the four channels. It is delivered with the front antenna transfer kit, a 90 cm Ethernet cable and two ½ wave antennas.
Frequency band: K51 (606 to 670 MHz)
With very robust digital wireless transmission technology, the ULX-D Shure range offers exceptional audio and HF performance as well as a set of innovative features. ULX-D systems are available with single, double or quad receivers. The range also sees two new transmitters; a micro surface transmitter with omnidirectional or cardioid directivity, and a table base transmitter compatible with Microflex modular goosenecks. The ULX-D range of digital wireless systems is intended for the most demanding services and fixed installations.
Main Features - Up to 72 MHz of HF bandwidth - Up to 70 systems simultaneously per band in standard mode - Up to 560 simultaneous systems per band in high density mode - Fast frequency scanner - Interference detection and alerts - Synchronization of transmitters by IR link - Audio frequency response: 20 Hz to 20 kHz - 24-bit A / D and D / A converters - 48 kHz - Latency: 2.9 ms - Management by PC or Mac with Wireless Workbench 6 software - Remote monitoring with the ShurePlus ™ Channel iOS app - Compatible with TNT and 4G
Additional characteristics of dual and quad receivers - Frequency Diversity function for ULXD1 beltpack transmitters - Audio summation function for pre-mixing of outputs - Dante ™ digital audio network - AES67 - RF Cascade outputs - BNC connectors - RJ45 connector: 2 Ethernet / Dante ™ 10/100 Mbps / 1 Gbps ports
