Description

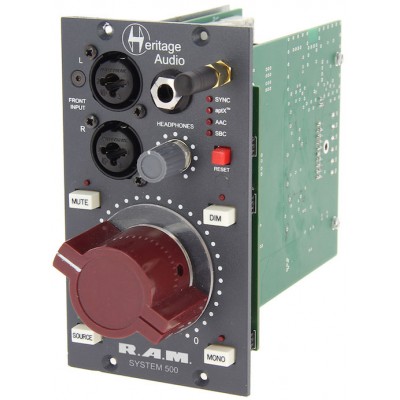

After two years of intensive research and development, the first element of the RAM systems came to life. The RAM System 500 is a fully unique product with no precedent in the industry, providing a mastering grade monitoring solution for the 500 series.

As a 500 series plug-in unit with double module width, it serves as a compact, zero-compromise monitoring station for home, project or mobile studios. It features a one stereo speaker output and powerful headphone amp, two balanced stereo inputs and a Bluetooth input for convenient wireless connection to mobile devices. The RAM System 500 uses state-of-the-art analog circuitry for maximum transparency and minimal noise floor and distortion. The entire signal path, including the 64-stage relay attenuation system, is designed with gold-plated switching relays, archiving stereo accuracy and sound quality only found in systems costing 10 times as much.

Mastering-grade stereo monitoring for project/home studios
Double-wide 500 Series module — requires compatible 500 Series chassis
3 stereo inputs, including rear-chassis connections
Front-panel stereo Neutrik Combo input
Bluetooth wireless input (compatible with AAC, APTX, and SBC files)
1 stereo speaker output
1 high-current headphone output
20dB DIM, MUTE, and MONO functions
64-step relay ladder attenuation for master level control in 1dB steps
High-level, ultra-high-current, audiophile-grade headphone amplifier will drive any hi- or lo-Z headphones without coloration or noise
State-of-the-art analog circuitry for superior transparency and ultra-low noise and distortion
All gold-plated relay-based switching for every function, including inputs and outputs

Brand reference number: SHA HARAM500

Testimony

5,0 /5

on 2 reviews

5★

4★

3★

2★

1★

Quality

Quality / price

Use

Excellent controller. Powerful headphone output and sound quality. It's a pity that you can't mix 2 of the 3 inputs (front/rear/Bluetooth). Although it's true that this is not the role of this type of controller, it would have been very convenient for me to be able to do so. My module broke down under warranty and Woodbrass had it repaired. It took a little long and I had to claim several times to know where it was, but it works perfectly again. Thank you.

Certified

Posted on 21/06/2024

By Richard C.

Super efficace, commutation de volume à relais ultra discrète, décodeur bluetooth hyper efficace avec indication du codec actif. Parfait pour implémenter un vrai monitoring pro dans une lunchbox

Verified

Posted on 25/01/2021

By GATEAU Camille

Quality

Quality / price

Use

See all reviews

Heritage Audio RAM System 500
